880 nm Short Wave Pass Dichroic Filter

880 nm Short Wave Pass Dichroic Filter

The 880 nm short wave pass dichroic filter is a high-performance dichroic filter designed for fluorescence imaging, super-resolution microscopy, and TIRF (total internal reflection fluorescence) systems. Operating at 45° incidence, it efficiently transmits the visible band of 400-850 nm while reflecting the near-infrared band of 910-1400 nm, combining high transmittance, broad reflection band, good polarization consistency, and excellent dispersion control. Manufactured on fused silica substrates with precision multi-layer dielectric coatings, it is suitable for research and industrial optical systems that demand high imaging quality, wavefront performance, and ultrafast spectral response.

Product features：880 nm standard splitting edge；High transmittance over 400–850 nm；Broadband high reflectance over 910–1400 nm；Stable reflection performance for both s‑ and p‑polarizations；Suitable for super-resolution microscopy and TIRF systems；Fused silica substrate for excellent thermal stability and optical performance

Part Number：MP-SWP-880

Application area：Fluorescence microscopy imaging | Super-resolution microscopy | Femtosecond laser systems | Near-infrared imaging | Scientific research and experimental equipment

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Edge Wavelength Transmission Band Reflection Band

880 nm 400–850 nm，Tavg >90% 910–1400 nm

Dimension Drawing

General Parameters

Specification	Value
Transmission Band	Tavg > 90% 400 – 850 nm
Transmission Band	Tavg > 80% 400 – 420 nm
Transmission Band	Tavg > 90% 420 – 850 nm
Reflection Band	910 – 1400 nm
Reflection Band, p-pol	910 – 1400
Reflection Band, s-pol	910 – 1400
Edge Steepness	Standard (for Fluorescence)
Edge Wavelength	880nm
Angle of Incidence	45 ± 1.5 °
Cone Half-angle	2°
Flatness / RWE Classification	Super-resolution / TIRF
Group Delay Dispersion	± 1250 fs over 910 - 1225 nm reflection band for S-Pol and P-Pol
Group Delay Dispersion	± 500 fs over 1225 - 1400 nm reflection band for S-Pol and P-Pol
Clear Aperture	≥ 80% (elliptical)
Transverse Dimensions, LxW	25.2 mm x 35.6 mm
Surface Quality (Scratch-Dig)	60-40
Filter Effective Index	1.71
Optical Damage Rating	1 J/cm sq. @ 532 nm (10 ns pulse width)
Orientation	Reflective surface has laser dot – Orient in direction of incoming light
Substrate Type	Fused Silica

Spectral Characteristic Curves

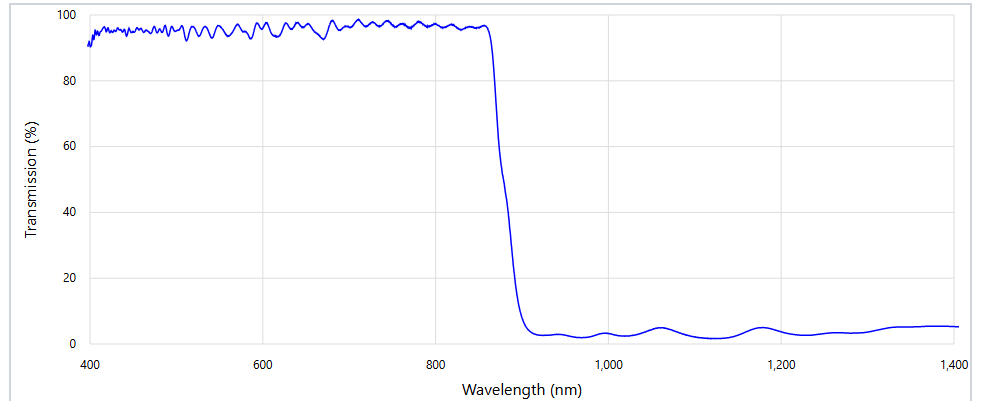

Transmittance-Wavelength Spectrum

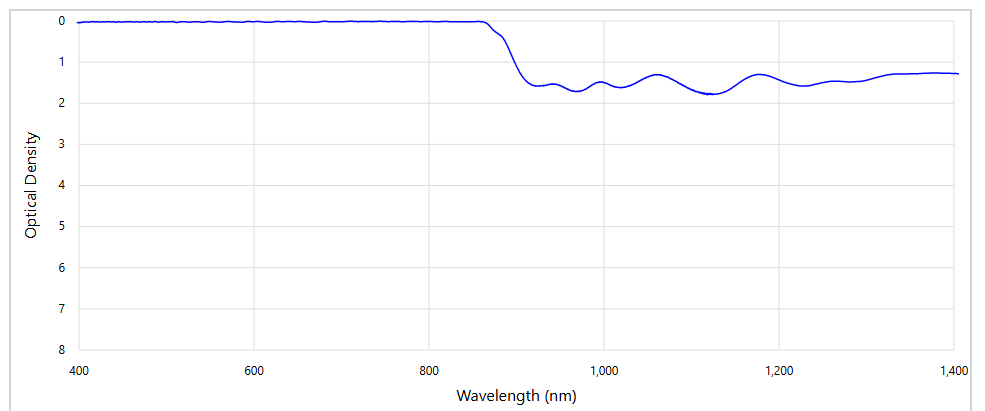

Optical Density Spectrum
