    • 405-488-532-635 nm Multi‑Band Laser Notch Filter

    The MP-MNF-405-488-532-635 is a high‑performance multi-band laser notch filter that simultaneously provides deep blocking at the laser lines near 405 nm, 488 nm, 532 nm, and 635 nm, while maintaining high transmission across other visible and near-infrared wavelengths.This filter is ideal for optical systems that employ multiple laser sources simultaneously. It effectively suppresses excitation lasers, stray light, and background noise, thereby improving the detection contrast and signal-to-noise ratio for fluorescence signals, Raman signals, and other target optical signals. The product is offered in a standard 25 mm round format, available both in a mounted frame and unmounted, facilitating easy integration into microscopy imaging, spectral analysis, biomedical detection, and laser measurement equipment.

    Product features：Simultaneous blocking of laser lines near 405 nm, 488 nm, 532 nm and 635 nm；Laser blocking depth > OD6；Average transmission > 93 % in non‑blocked bands；Covers visible to near‑infrared spectral range；Designed for multi‑laser source systems；Standard 25 mm round size

    Part Number：MP-MNF-405-488-532-635

    Application area：Multi-channel fluorescence microscopy | Confocal laser scanning microscopy | Fluorescence spectroscopy | Raman spectroscopy | Multi-laser analytical instruments

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    ~ 488nm ~ 405nm 400 – 410nm 488nm 532nm 631 – 640nm Tavg > 80% 350 – 392 nm Tavg > 93% 418 – 477 nm Tavg > 93% 498.5 – 519.5 nm Tavg > 93% 544.5 – 614 nm Tavg > 93% 656.5 – 1600 nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Laser Wavelength

    ~ 488nm

    Laser Wavelength

    ~ 405nm

    Laser Wavelength

    400 – 410nm

    Laser Wavelength

    488nm

    Laser Wavelength

    532nm

    Laser Wavelength

    631 – 640nm

    Transmission Band

    Tavg > 80%  350 – 392 nm

    Transmission Band

    Tavg > 93%  418 – 477 nm

    Transmission Band

    Tavg > 93%  498.5 – 519.5 nm

    Transmission Band

    Tavg > 93%  544.5 – 614 nm

    Transmission Band

    Tavg > 93%  656.5 – 1600 nm

    Blocking Band

    ODabs > 6  400 – 410 nm

    Blocking Band

    OD > 6  488 nm

    Blocking Band

    OD > 6  532 nm

    Blocking Band

    ODabs > 6  631 – 640 nm

    Angle of Incidence

    0 ± 5 °

    Cone Half‑angle

    0°

    Clear Aperture

    ≥ 22 mm

    Transverse Dimensions (Diameter)

    25mm

    Filter Thickness (Mounted)

    3.5mm

    Filter Thickness Tolerance (Mounted)

    ± 0.1mm

    Filter Thickness (Unmounted)

    2.0mm

    Filter Thickness Tolerance (Unmounted)

    ± 0.1mm

    Surface Quality (Scratch‑Dig)

    60-40

    Filter Effective Index

    1.84

    Optical Damage Rating

    1 J/cm sq. @ 532 nm (10 ns pulse width)

    Orientation

    Arrow on ring is preferred direction of propagation of light

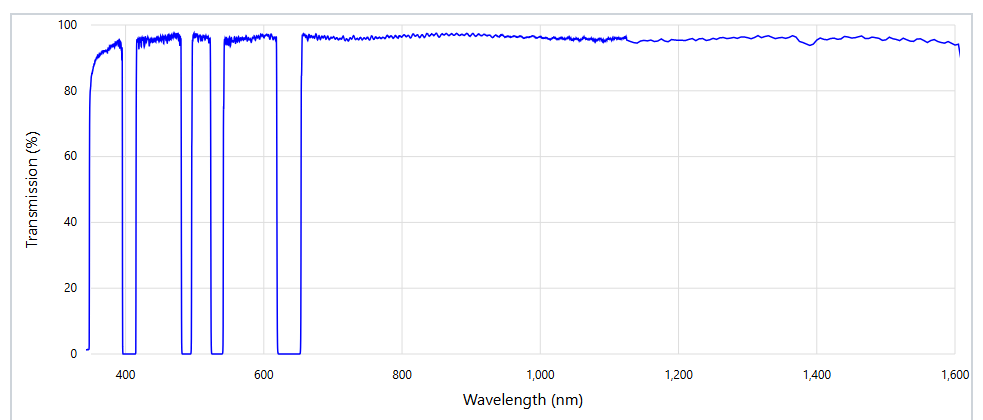

    Spectral Characteristic Curves



    Reflectance-Wavelength Spectrum

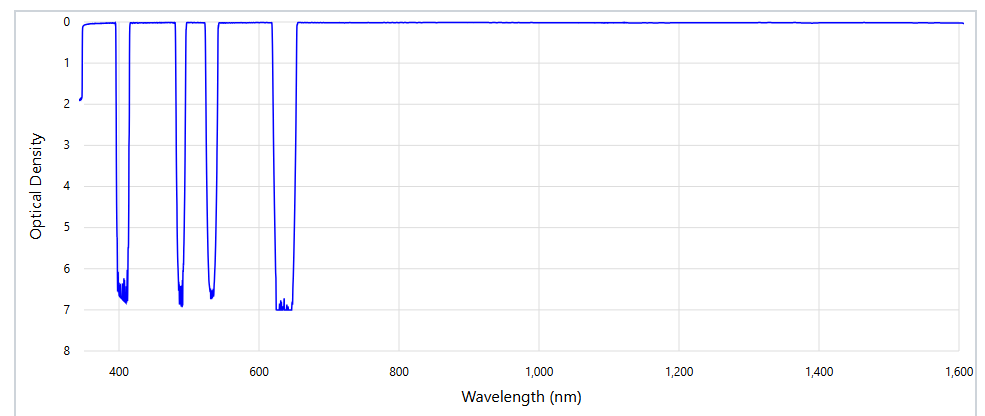

    Optical Density Spectrum
