Home/ Products/ Optical Accessories/ Optical Components/ Filter/ Near-Infrared Filters/ 808 nm Laser Line Filter

    • 808 nm Laser Line Filter

    The 808 nm Laser Line Filter is specifically designed for 808 nm laser systems. It efficiently transmits the 808 nm laser wavelength while providing high blocking for adjacent spectral bands. Manufactured with high-precision ion-beam sputtering (IBS) multilayer dielectric coatings, this filter features narrow bandwidth, high transmission, deep blocking, and excellent environmental stability. It is widely used in Raman spectroscopy, laser spectral analysis, fluorescence excitation, biomedical detection, and research instrumentation.

    Product features：Specifically designed for 808 nm laser systems；High transmission at the center wavelength (> 90%)；Ultra‑narrow bandwidth design (3.1 nm)；High selectivity for the laser line；High‑stability dielectric coatings；Suitable for both research and industrial precision optical systems

    Part Number：MP-LLF-808

    Application area：Raman spectroscopy excitation systems | Laser spectral analysis | Biomedical Detection | Semiconductor inspection equipment | Research and laboratory equipment

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Laser Wavelength Transmission Band

    808 nm T > 90% 808nm

  • Dimension Drawing
    • General Parameters

    Specification

    Value

    Laser wavelength

    808nm

    Transmission band

    T > 90%  808nm

    Blocking band

    ODabs> 5  625.9–799.9 nm

    Blocking band

    ODabs > 6  743.4–795.9 nm

    Blocking band

    ODabs > 6 820.1 – 888.8 nm

    Blocking band

    ODabs > 5 816.1 – 1139.4 nm

    FWHM

    3.1 nm

    Guaranteed minimum bandwidth

    Transmission guaranteed for laser wavelength only

    Angle of incidence

    0 ± 2°

    Clear aperture

    ≥ 10 mm

    Outer diameter (mounted)

    12.5 mm

    Mounted thickness

    3.5 mm

    Mounted thickness tolerance

    ± 0.1 mm

    Unmounted thickness

    2.0 mm

    Unmounted thickness tolerance

    ± 0.1 mm

    Surface quality (scratch‑dig)

    60-40

    Filter effective index

    2.09

    Optical damage threshold

    0.1 J/cm sq. @ 532 nm (10 ns pulse width)

    Orientation

    Arrow on ring is preferred direction of propagation of light



    Spectral Characteristic Curves

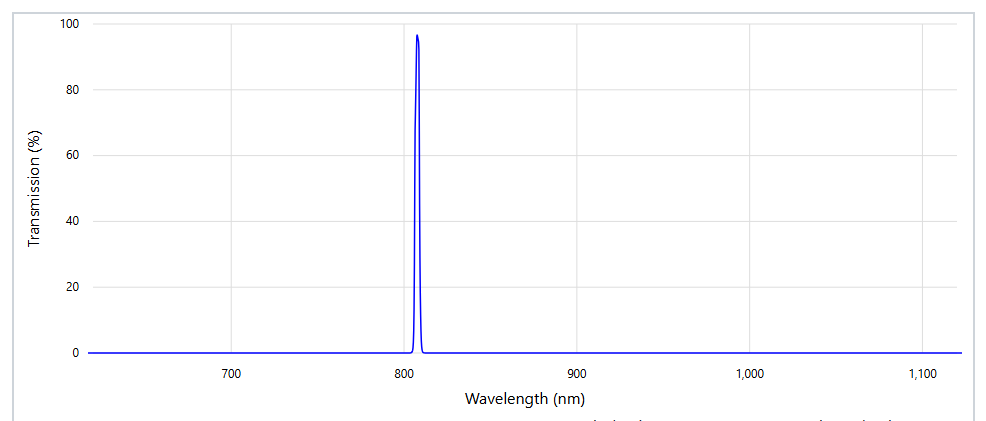

    Transmittance-Wavelength Spectrum

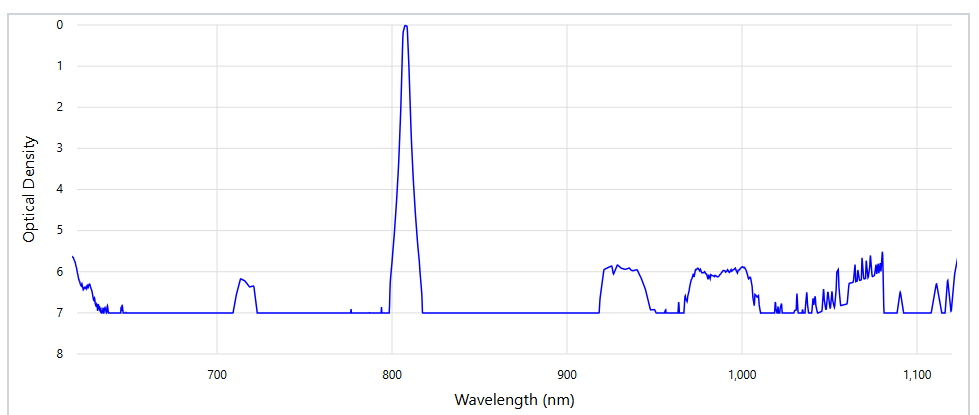

    Optical Density Spectrum
