    • Research-Grade Spatial Light Modulator

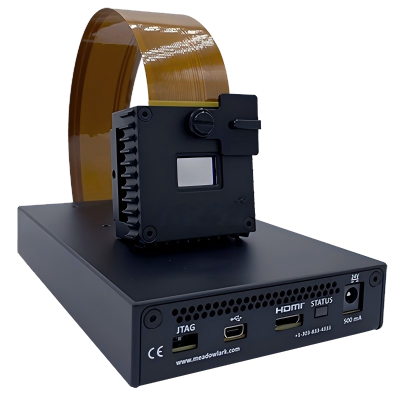

    The MP-SLM-RG-1.35 utilizes reflective LCoS (Liquid Crystal on Silicon) technology, specifically designed for pure phase modulation. It supports analog phase control, offering high phase stability, high fill factor, and high diffraction efficiency, enabling pixel-by-pixel dynamic modulation of laser wavefronts in scientific research experiments. This 1920×1200 SLM series employs a 60 Hz HDMI controller; the S-Series supports 10-bit operation and offers optional dielectric mirror coatings and liquid cooling solutions.

    Product features：1920 × 1200, 8 μ m pixels; 15.36 × 9.60mm, filling rate 95.6%; Phase stability 0.025%; 60Hz HDMI with trigger; 10 digit control; Optional high reflective film (92-98%); Optional liquid cooling

    Part Number：MP-SLM-RG-1.35

    Application area：Holographic display | Beam shaping | Adaptive optics | Microscope | Optical tweezers/quantum optics | Multifocal/phase mask | Optical communication/vortex beam

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Resolution Fill Factor

  • Dimension Drawing
    • General Parameters

    Technical Specifications – 1920 × 1200 Analog Spatial Light Modulator

    Parameter

    Value

    Resolution

    1920 × 1200

    Fill Factor

    95.6%

    Array Size

    15.36 × 9.60 mm

    Pixel Pitch

    8.0 × 8.0 µm

    Zero‑Order Diffraction Efficiency

    76% – 91%

    Reflectance with Dielectric Mirror Coating

    92% – 98%

    Backplane Refresh Rate

    1.35 kHz

    Controller

    HDMI


    High-Speed Liquid Crystal Response Time and Wavefront Distortion

    Standard Calibration Wavelength

    High-Speed Liquid Crystal Response Time

    Calibrated Wavefront Distortion

    Coating Range 400–800 nm

    Coating Range 500–1200 nm

    Coating Range 850–1650 nm

    405 nm

    ≤ 14.0 ms

    –

    –

    λ/5

    532 nm

    ≤ 15.0 ms

    ≤ 19.0 ms

    –

    λ/7

    635 nm

    ≤ 15.0 ms

    ≤ 20.0 ms

    –

    λ/8

    785 nm

    ≤ 16.0 ms

    ≤ 23.0 ms

    –

    λ/10

    1064 nm

    –

    ≤ 33.0 ms

    ≤ 40.0 ms

    λ/10

    1550 nm

    –

    –

    ≤ 55.0 ms

    λ/12

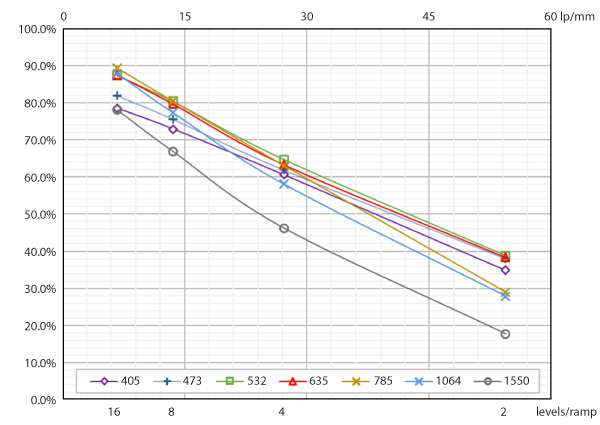

    Technical Specifications and Performance Characterization of the SLM

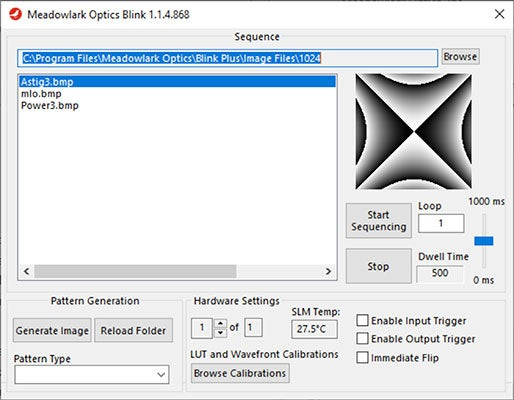

    Software and Development Kits



    ·User-friendly software provided

    ·Intuitive image generation and sequencing

    ·Software development kits available for LabVIEW, MATLAB, Python and C++

    ·Image generation capabilities include:

    ·Bessel beams (spiral phase, fork, concentric rings, axicons)

    ·Lens functions (cylindrical, spherical)

    ·Gratings (blazed, sinusoidal)

    ·Various diffraction patterns (stripes, checkerboard, solid, random phase)

    ·Holograms

    ·Zernike polynomials

    ·Image superposition

    Optional Configurations

    --
