    • High-Speed Spatial Light Modulator

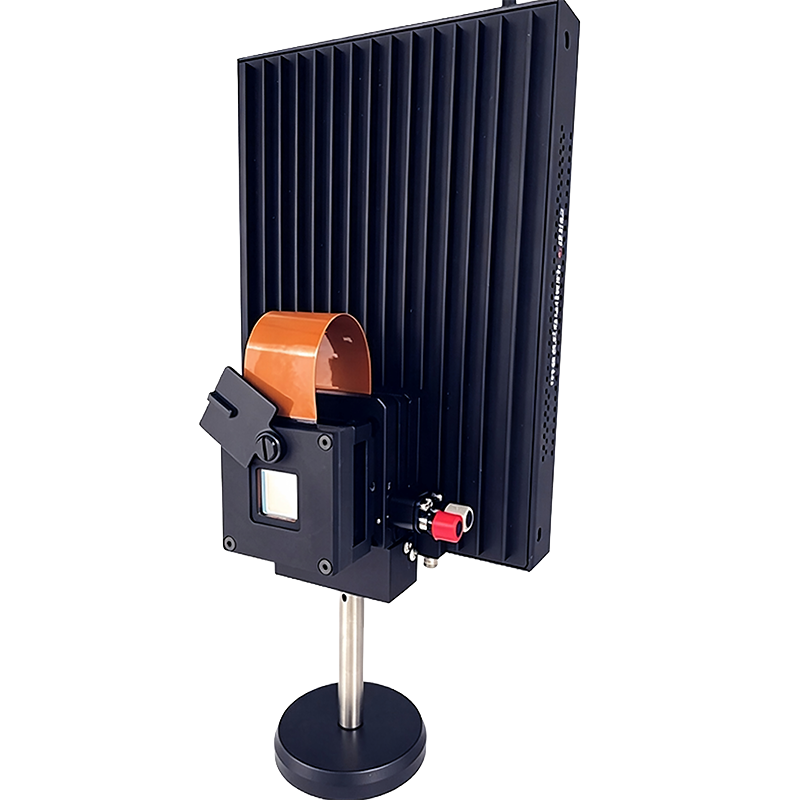

    The MP-SLM-1 is a high‑speed two‑dimensional spatial light modulator (SLM) based on Liquid Crystal on Silicon (LCoS) technology, designed for research and industrial applications requiring fast phase modulation, high stability, and high diffraction efficiency. The device employs pure analog phase control technology, supporting 0–2π continuous phase modulation, 8‑bit phase control, and a maximum modulation speed of 1 kHz, combining rapid response with excellent phase stability. The 1024 × 1024 pixel array and high fill factor enable high‑quality wavefront control and generation of complex optical fields, making it an ideal choice for adaptive optics, digital holography, beam shaping, and quantum optics.

    Product features：High‑speed phase modulation；Exceptional phase stability；High‑resolution optical field control；High diffraction efficiency；Broad wavelength coverage

    Part Number：MP-SLM-1

    Application area：Adaptive optics | Beam shaping | Digital holography | Ultrafast lasers | Biomedical applications | Quantum optics

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Resolution Fill Factor

    1024 × 1024 97.2%

  • Dimension Drawing
    • General Parameters

    Basic Parameters

    Resolution

    1024 × 1024

    Fill Factor

    97.2%

    Array Size

    17.40 × 17.40 mm

    Pixel Pitch

    17 × 17 μm

    Zero‑Order Diffraction Efficiency

    75 – 87%

    With Dielectric Mirror Coating

    92 – 98%



    High‑Speed Liquid Crystal Response Time and Calibrated Wavefront Distortion

    Standard Calibration Wavelength

    High‑Speed Liquid Crystal Response Time (by AR coating range)

    Calibrated Wavefront Distortion

    Coating Range 488 – 850 nm

    Coating Range 500 – 1200 nm

    Coating Range 850 – 1650 nm

    532 nm

    ≤ 1.0 ms

    ≤ 1.4 ms

    –

    λ/5

    635 nm

    ≤ 1.3 ms

    ≤ 1.8 ms

    –

    λ/6

    785 nm

    ≤ 1.8 ms

    ≤ 2.4 ms

    –

    λ/7

    1064 nm

    –

    ≤ 3.4 ms

    ≤ 5.5 ms

    λ/10

    1550 nm

    –

    –

    ≤ 8.0 ms

    λ/12

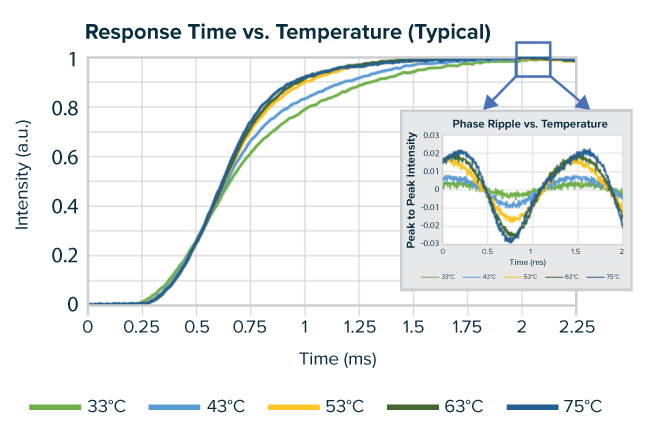

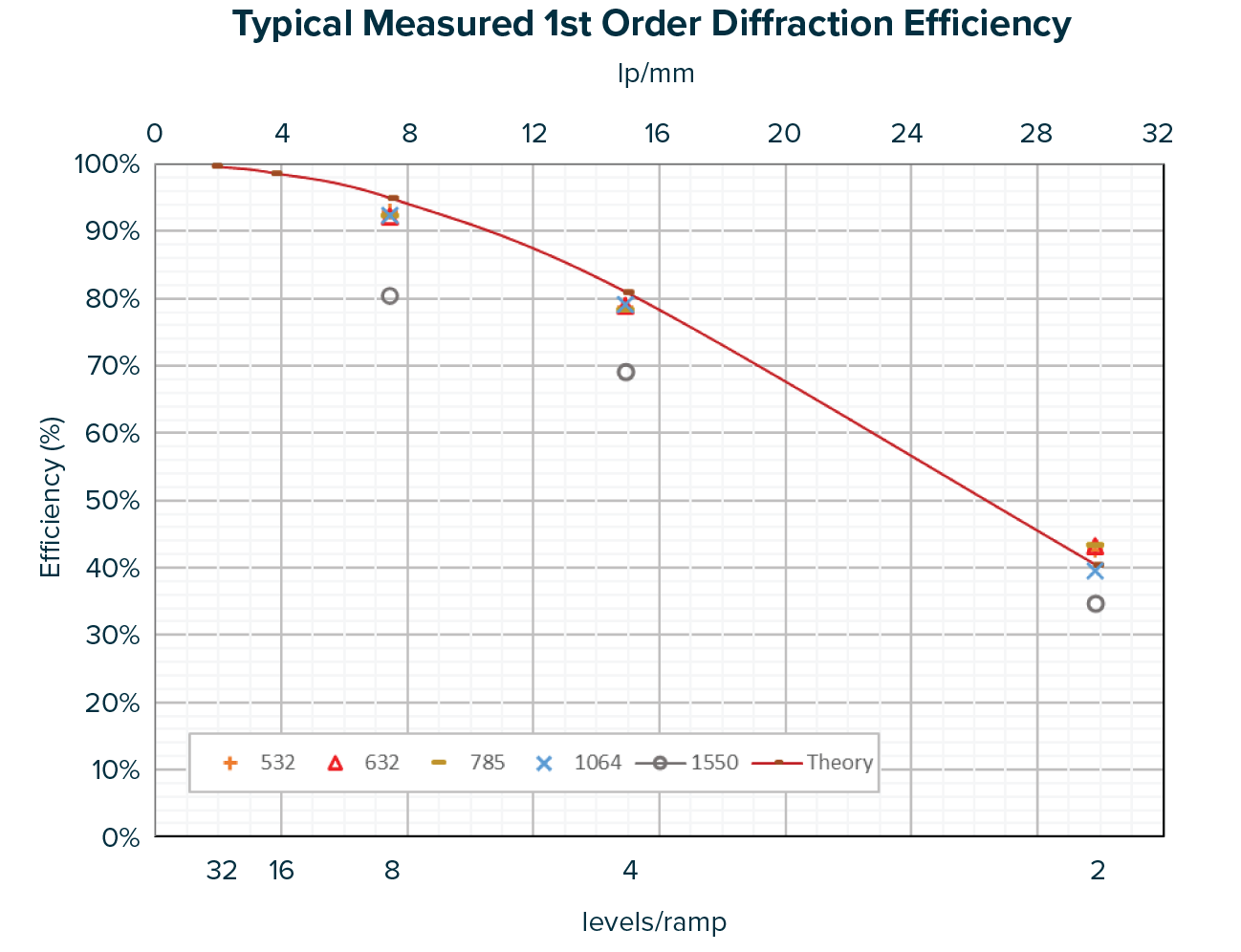

    Technical Specifications and Performance Characterization of the SLM

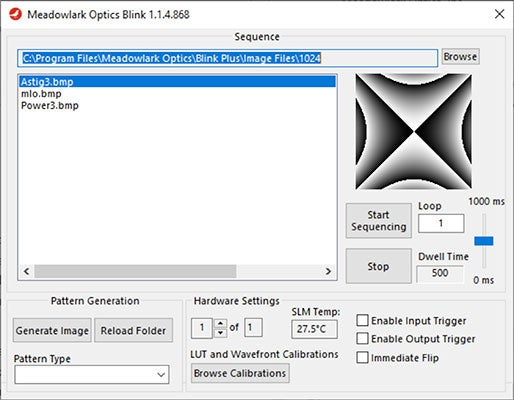

    Software and Development Kits


    ·User-friendly software provided

    ·Intuitive image generation and sequencing

    ·Software development kits available for LabVIEW, MATLAB, Python and C++

    ·Image generation capabilities include:

    ·Bessel beams (spiral phase, fork, concentric rings, axicons)

    ·Lens functions (cylindrical, spherical)

    ·Gratings (blazed, sinusoidal)

    ·Various diffraction patterns (stripes, checkerboard, solid, random phase)

    ·Holograms

    ·Zernike polynomials

    ·Image superposition




    Optional Configurations

    --
