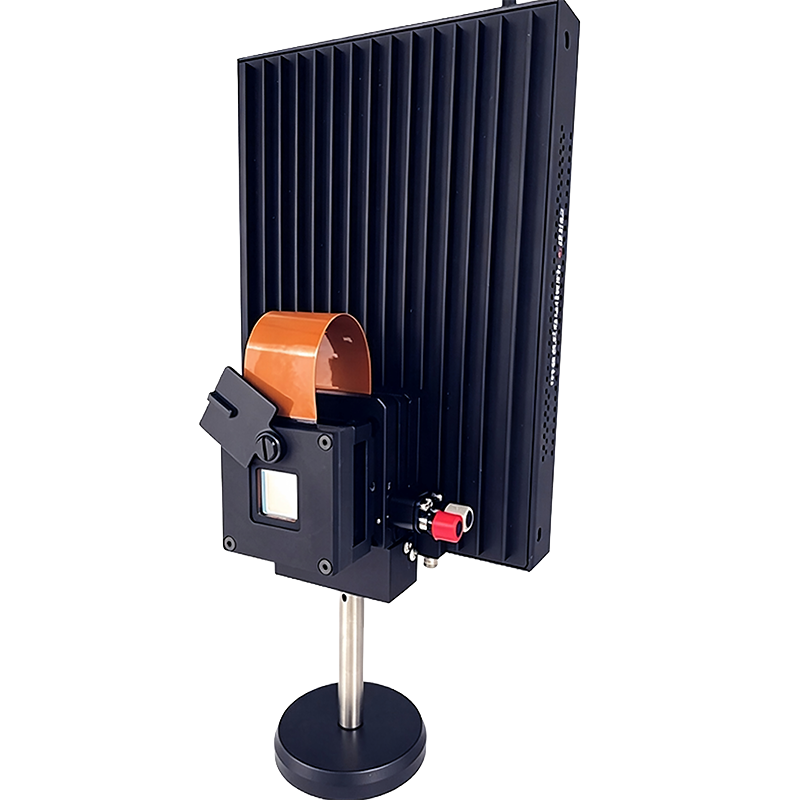

The MP-SLM-UH-1.4 is a 1024×1024 resolution LCoS reflective phase-type spatial light modulator, featuring 17 μm pixels, a 17.4 mm × 17.4 mm active array, and a Gen3 x8 PCIe controller. Its core advantage lies in its ultra‑high‑speed liquid crystal response, enabling up to approximately 1.4 kHz class 0–2π phase modulation. Combined with adjustable temperature control and purely analog phase control, it maintains excellent phase stability, diffraction efficiency, and phase accuracy even during high-speed switching. The product is widely suitable for research and industrial applications such as high-speed holography, wavefront shaping, beam shaping, adaptive optics, microscopy imaging, and high-power laser systems, meeting the demanding requirements for temporal response and phase control in advanced optical systems.

Product features：High fill factor; Fast response; Flexible temperature control; High-speed interface;

Part Number：MP-SLM-UH-1.4

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Resolution Fill Factor

1024 × 1024 97.2%

Dimension Drawing

General Parameters

Technical Specifications – 1024 × 1024 Analog Spatial Light Modulator

Parameter	Value
Resolution	1024 × 1024
Fill Factor	97.2%
Array Size	17.40 × 17.40 mm
Pixel Pitch	17 × 17 μm

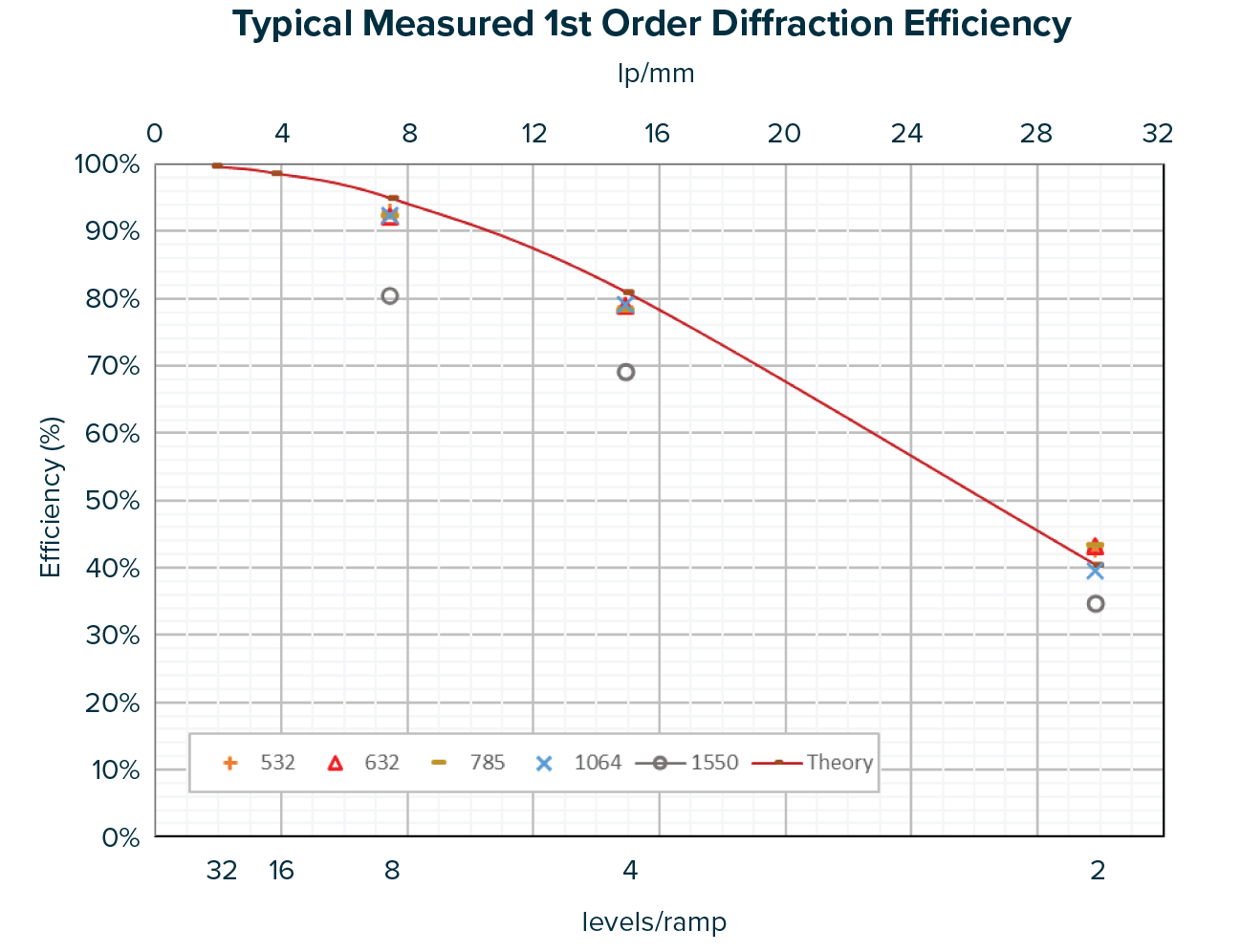

Zero‑Order Diffraction Efficiency	75 – 87%
Reflectance with Dielectric Mirror Coating	92% – 98%

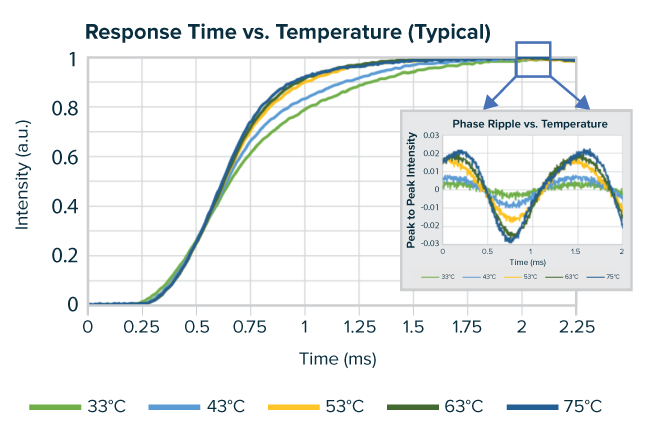

High-Speed Liquid Crystal Response Time and Wavefront Distortion

Standard Calibration Wavelength	High‑Speed Liquid Crystal Response Time			Calibrated Wavefront Distortion
Standard Calibration Wavelength	Coating Range 488–850 nm	Coating Range 500–1200 nm	Coating Range 850–1650 nm	Calibrated Wavefront Distortion
532 nm	≤ 0.6 ms	≤ 0.7 ms	–	λ/5
635 nm	≤ 0.7 ms	≤ 0.9 ms	–	λ/6
785 nm	≤ 0.9 ms	≤ 1.2 ms	–	λ/7
1064 nm	–	≤ 1.7 ms	≤ 2.0 ms	λ/10
1550 nm	–	–	≤ 3.9 ms	λ/12

Technical Specifications and Performance Characterization of the SLM

Software and Development Kits

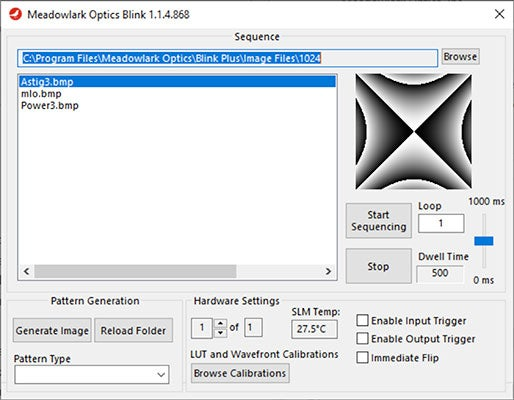

·User-friendly software provided

·Intuitive image generation and sequencing

·Software development kits available for LabVIEW, MATLAB, Python and C++

·Image generation capabilities include:

·Bessel beams (spiral phase, fork, concentric rings, axicons)

·Lens functions (cylindrical, spherical)

·Gratings (blazed, sinusoidal)

·Various diffraction patterns (stripes, checkerboard, solid, random phase)

·Holograms

·Zernike polynomials

·Image superposition

TEC Heater

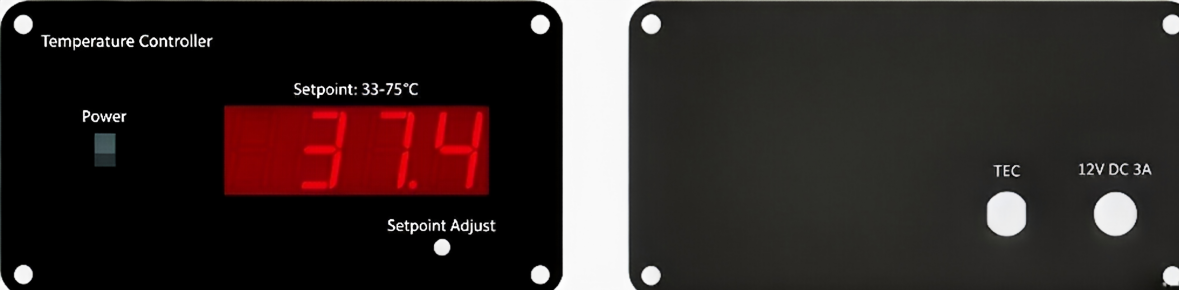

The TEC Heater (Part Number TCS2) provides precise temperature control for the SLM. Heating the liquid crystals increases switching speed, while cooling them enhances phase stability.
