    • 340-800nm 9-Channel LED Illumination System

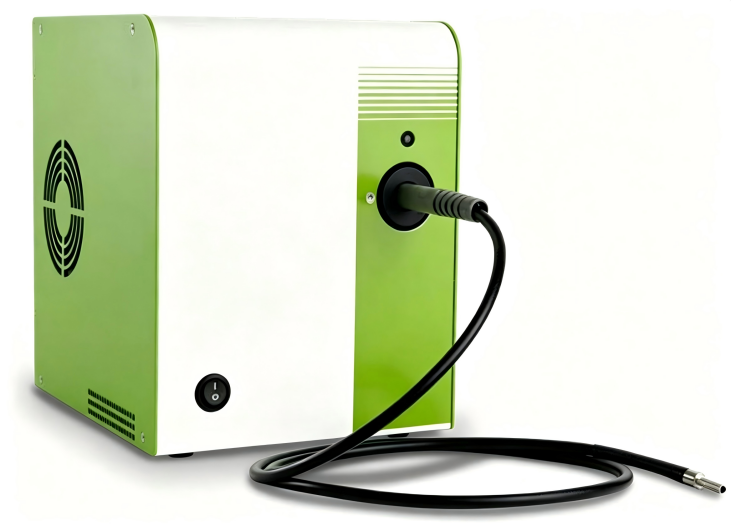

    The MP-LED provides the brightest and most powerful illumination across nine wavelengths, from Fura-2 to IR800. It incorporates Excelitas’patented LaserLED Hybrid Drive® technology to efficiently cover the challenging 500–600 nm green gap. With high excitation power across the UV‑visible‑NIR spectrum, the system offers four configuration options and pre-installed clean-up filters, allowing researchers to tailor the system to their current and future imaging needs.

    Product features：High brightness across nine individually addressable channels；Fast channel switching；Easy integration with USB, TTL and analog control；Whisper‑quiet operation；Liquid light guide delivery；Pre‑installed excitation filters

    Part Number：MP-LED-340-800

    Application area：Multi-channel fluorescence microscopy | High-throughput imaging | Mercury arc lamp replacement

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Current

    340-800nm 4.5 A max/100 V,1.9 A max/240V

  • Dimension Drawing
    • General Parameters

    Wavelength Range

    360 – 770 nm

    380 – 770 nm

    340 – 660 nm

    340 – 800 nm

    Input Power Supply

    Universal input 100-240 VAC, 50/60 Hz

    Current

    4.5 A max/100 V, 1.9 A max/240 V

    Response Times

    LED ON/OFF: 100 µs TTL / 1 ms USB; Rotary Filter Changer: 500 ms / ≤2 s minimum duty cycle

    Control Options

    speedDIAL; ON/OFF - TTL compatible; Intensity - Analog; RS-232 commands (SDK available), USB

    I/O Connections

    Mini DIN plug, 9pos (speedDIAL); USB (B-type); DB15 x 9 BNC (TTL); DB15 x 6 BNC (Analog)

    Dimensions (W x H x D)

    205 mm x 265 mm x 270 mm (8.1" x 10.8" x 10.6")

    Weight

    9 kg (19.8 lbs)

    Certifications

    CE, RoHS, KC

    Warranty

    LEDs – 25,000 hours or 3 years; All other X-Cite NOVEM components - 1 year, parts and labor (excluding LLG)

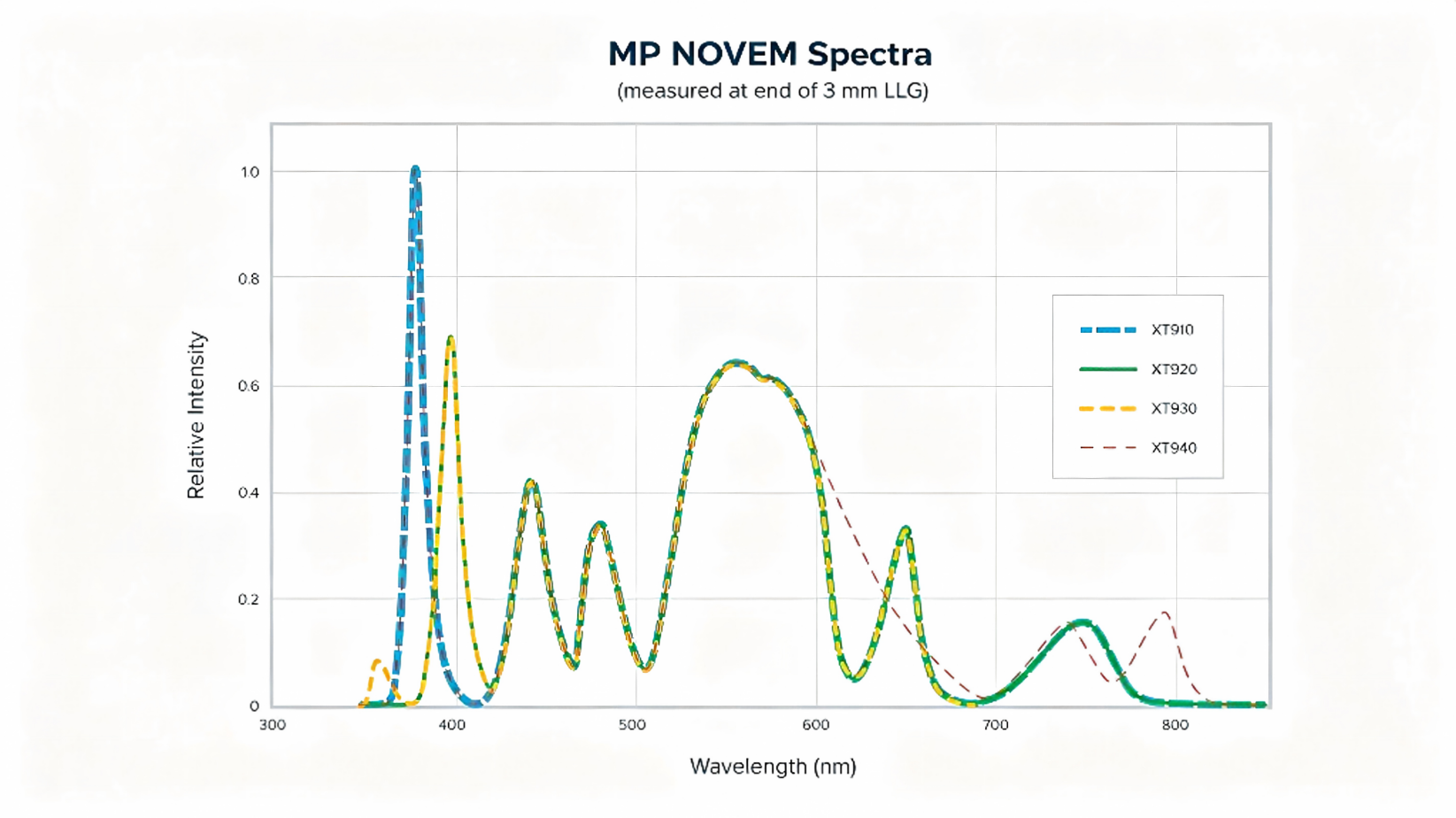

    Spectral Comparison Chart



    Optional Configurations

    --
