    • 360-770nm LED Light Source (with Common Excitation Bands)

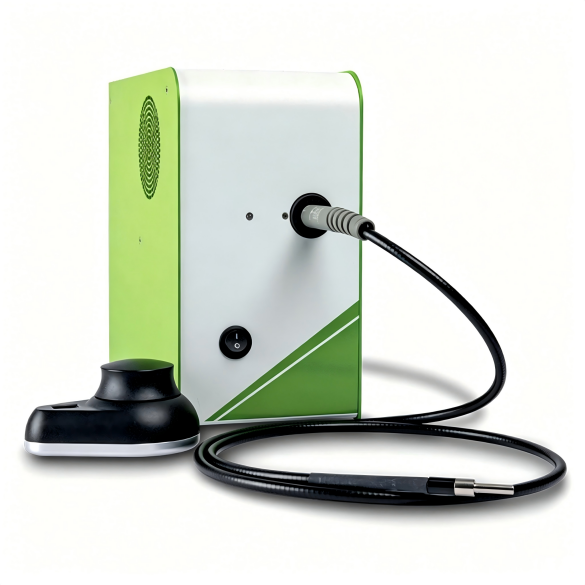

    The MP-XYLIS is an advanced replacement for traditional arc lamps, offering superior brightness for both compound and stereomicroscopes. Featuring patented LaserLED Hybrid Drive® technology, it effectively bridges the LED green gap. This quiet and efficient system provides the advantages of LED lighting without sacrificing performance, affordability, or versatility.

    Product features：High Brightness；Broad Spectrum – covers DAPI to Cy7；Whisper Quiet；Liquid Light Guide Delivery；Highly Flexible Control – supports USB, TTL and analog control；Long Lifetime – >25,000 hours

    Part Number：MP-LED-360-770

    Application area：Arc Lamp Replacement | Widefield Fluorescence Imaging | Metrology / Inspection

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Current

    360 – 770 nm 2.4 – 1.0 A

  • Dimension Drawing
    • General Parameters

    Specification

    Model: XT730S

    Model: XT730L

    Wavelength Range

    360 – 770 nm

    380 – 770 nm

    LED Peaks (nm)

    365, 430, 475, 545, 635, 735

    385, 430, 475, 545, 635, 735

    Input Power Supply

    Universal input 100 – 240 VAC, 50/60 Hz

    Current

    2.4 – 1.0 A

    LED ON/OFF Response Times

    100 µs TTL / 1 ms USB

    Control Options

    speedDIAL

    ON/OFF – TTL compatible

    RS‑232 commands (SDK available), USB

    Foot Pedal (optional)

    I/O Connections

    BNC input

    USB (Type‑B)

    3.5 mm stereo plug

    Dimensions (W × H × D)

    130 mm × 250 mm × 260 mm (5.1″ × 9.8″ × 10.3″)

    Weight

    5.2 kg (11.6 lb)

    Certifications

    CE, RoHS, UKCA, KC, PSE compliant

    Warranty

    LEDs: 25,000 hours or 3 years

    All other MP‑XYLIS components – 1 year, parts and labor (excluding liquid light guide)

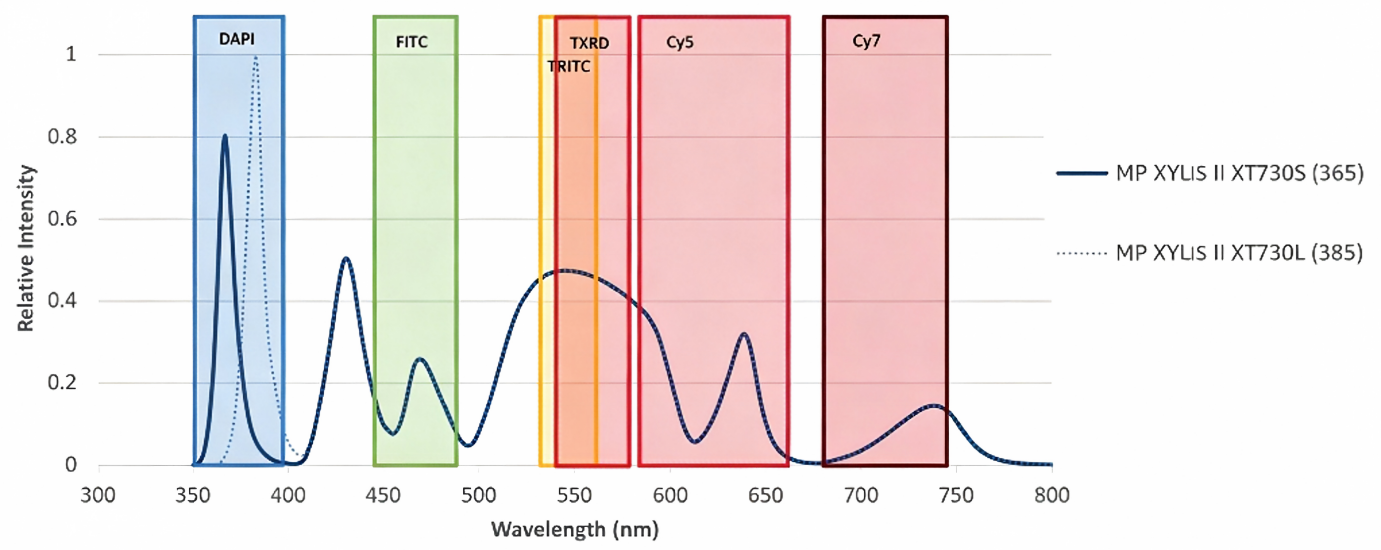

    Emission Spectra with Common Fluorescent Dye Excitation Bands



    Optional Configurations

    --
