    • 360-660nm LED Illumination System

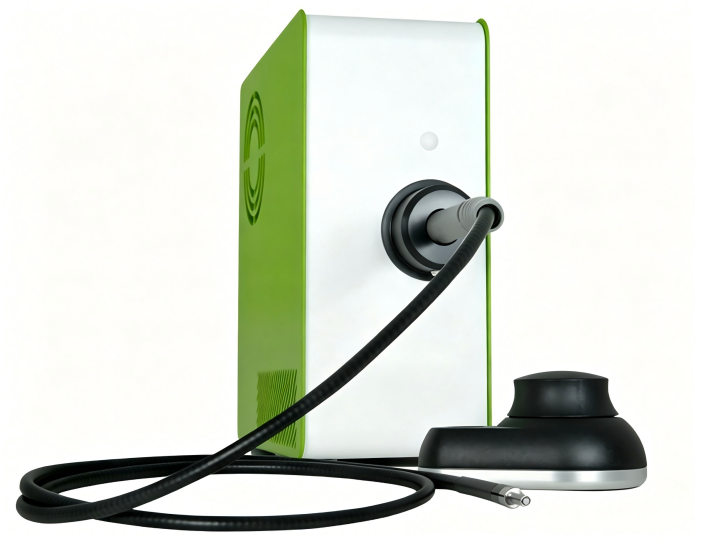

    The MP-LED is a compact, white-light LED source designed for fluorescence imaging, effective for DAPI, GFP, mCherry, and Cy5 imaging. It delivers exceptional field uniformity via a liquid light guide. The MP-LED includes manual, PC, and TTL control options and features LEDs with a guaranteed lifetime of 25,000 hours without the need for lamp or module replacements.

    Product features：High Brightness；Broad Spectrum；Whisper Quiets；Liquid Light Guide Delivery；Highly Flexible Control – supports USB, TTL and analog control；Long Lifetime – >25,000 hours

    Part Number：MP-LED-360-660

    Application area：Arc Lamp ReplacementBroad Spectrum | Widefield Fluorescence Imaging | DAPI/FITC/TRITC/Cy5 (or similar) imaging | Metrology / Inspection

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Current

    360 – 660 nm /

  • Dimension Drawing
    • General Parameters

    Specification

    Details

    Wavelength Range

    360 – 660 nm

    LED Peaks / FWHM

    385/30 nm, 475/40 nm, 560/80 nm, 640/40 nm

    External Power Supply

    Universal input 100‑240 VAC, 50/60 Hz

    Power Consumption

    160 W

    LED ON/OFF Response Times

    100 µs TTL / 1 ms USB

    Control Options

    TTL compatible – ON/OFF

    speedDIAL – ON/OFF, 1% intensity increments

    RS‑232 commands (SDK available), USB

    I/O Connections

    BNC input

    USB (Type‑B)

    Dimensions (W × H × D)

    95 mm × 230 mm × 212 mm (3.7″ × 9.1″ × 8.4″)

    Weight

    3 kg (6.6 lbs)

    Certifications

    CE, RoHS

    Warranty

    LEDs – 25,000 hours or 3 years

    All other components – 1 year, parts and labor (excluding liquid light guide)


    Spectrum Comparison Chart



    Optional Configurations

    --
