Includes

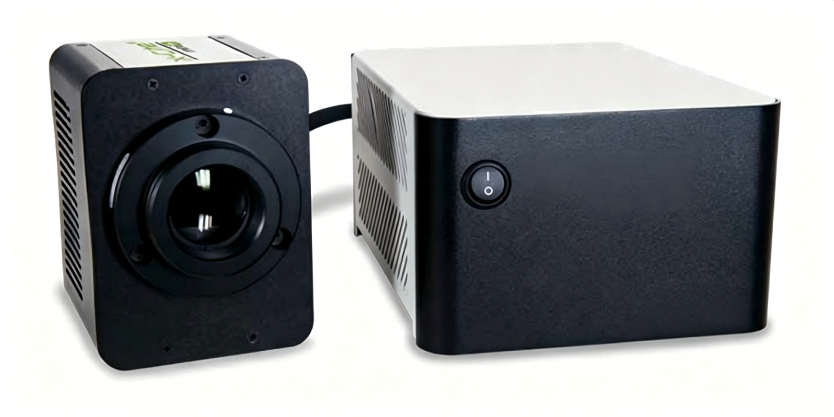

Head, miniCube, speedDIAL, microscope flange, accessory kit

Wavelength Range

360 – 700 nm

380 – 700 nm

External Power Supply

Universal input 100 – 240 VAC, 50/60 Hz

Current

2.4 – 1.2 A

LED ON/OFF Response Time

100 µs TTL / 1 ms USB

Control Options

ON/OFF – TTL compatible, speedDIAL, RS‑232 commands (SDK available), USB

I/O Connections

BNC input, USB (Type‑B), 3.5 mm stereo plug

Dimensions – HEAD

100 mm × 135 mm × 110 mm (W × H × D)

Dimensions – CONTROLLER

180 mm × 110 mm × 230 mm (W × H × D)

Dimensions – speedDIAL

80 mm × 59 mm × 112 mm (W × H × D)

Weight

3.4 kg (7.5 lb)

Certifications

RoHS, CE

Warranty

LEDs – 20,000 hours;

All other X-Cite mini+ components – 1 year, parts and labor (same for both)
