    • 24-channel multi-wavelength optical fiber light source for ITU wavelengths

    The multi-channel desktop light source is a widely used device in scientific research and production testing, capable of delivering multi-channel outputs with multiple laser wavelengths or single-channel outputs across various wavelengths. Its wavelength range covers visible light and near-infrared regions, offering stable spectral characteristics and power output. This equipment features extensive wavelength selection, independently adjustable parameters for each channel, user-friendly operation, and high safety performance. Due to these advantages, the multi-channel desktop light source is extensively applied in fields such as fiber optic sensing, optical component testing, biomedical imaging, semiconductor inspection, and machine vision inspection, meeting the demand for stable multi-channel spectroscopy across diverse applications.

    Product features：Wide multi-wavelength coverage; multi-mode output; independent control; high stability; user-friendly operationon the safe side

    Part Number： MP-OM-FL-24

    Application area：Fiber Optic Sensing | Testing of Optical Communication Devices | Biomedical Imaging | Semiconductor Inspection and Machine Vision

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Number of Output Fiber Channels Wavelength

    24 C-band and L-band ITU standard wavelength

  • Dimension Drawing
    • General Parameters

    characteristic

    24 channels/power adjustable/high stability/RL test with noise suppression

    Optical Specifications

    unit

    Typical Values

    remarks

    Number of Lasers

    -

    24


    Number of Output Fiber Channels

    -

    24


    Wavelength

    -

    C-band and L-band ITU standard wavelength


    Wavelength Tolerance

    nm

    ±0.5


    Spectral Width

    MHz

    ≤3


    Maximum Output Optical Power

    mW

    ≥10; ≥20

    Specifications available

    Power Adjustment Range

    -

    10%~100%


    Short-term Stability (15 minutes)

    dB

    ≤ ±0.02

    Equivalent ≤ ±0.5%

    Long-term Stability (8 hours)

    dB

    ≤ ±0.05

    Equivalent ≤ ±1.2%

    Polarization State

    -

    Random Corning SMF-28e Single-Mode

    Linear polarization


    Fiber and Connectors

    -

    Random Corning SMF-28e Single-Mode

    PM1550 polarization-maintaining

    FC/APC

    Electrical and Environmental Parameters

    Product Packaging

    B7 Desktop

    Control Method

    Touchscreen / RS232 Serial Communication

    Communication Interface

    DB9 Female

    Power Supply

    100~240V AC, <30W

    Dimensions (mm)

    482(W)×340(D)×112(H)

    Operating Temperature Range

    -5~35°C

    Operating Humidity Range

    0~70%

    Cooling Method

    Built-in Air Cooling

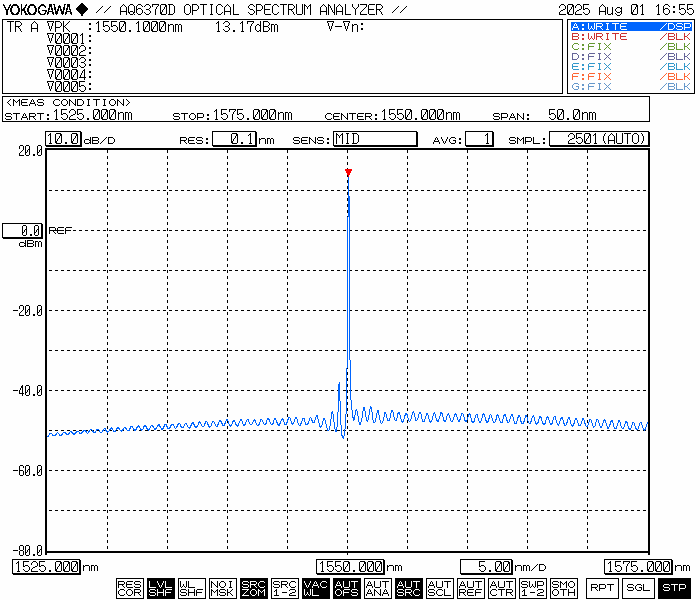

    Typical wavelength spectrum




    Spectrum example: ITU C34 channel wavelength spectrum

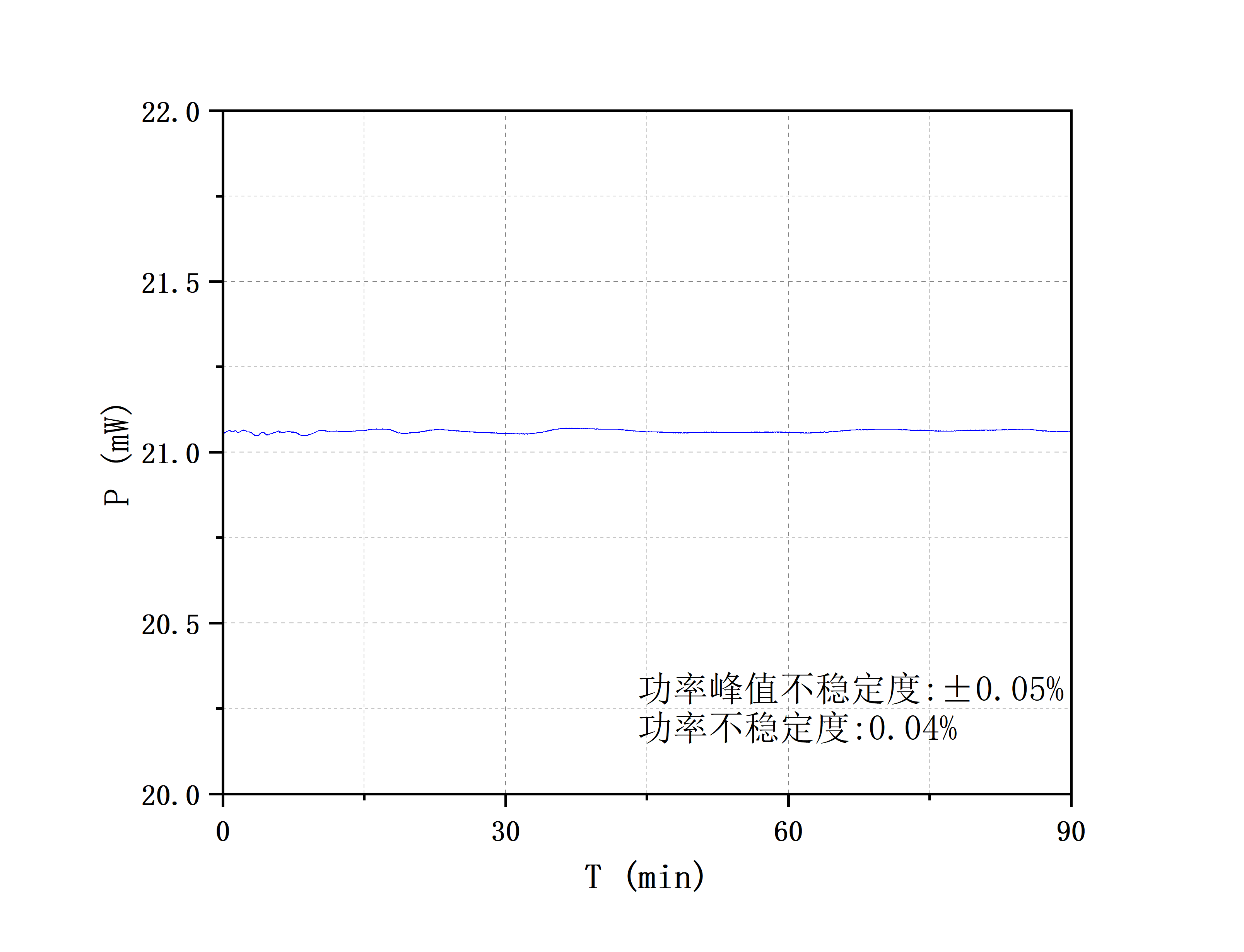

    Optical Power Stability Test


    Optional Configurations

    --

    Downloads

    No resources available
