Optical Specifications

unit

representative value

remarks

Maximum Number of Lasers

-

8

Maximum Number of Output Fiber Channels

-

8

Wavelength

nm

1271、1281、1291、1301、1311、1321、1331、1341

Wavelength Accuracy

nm

≤±1

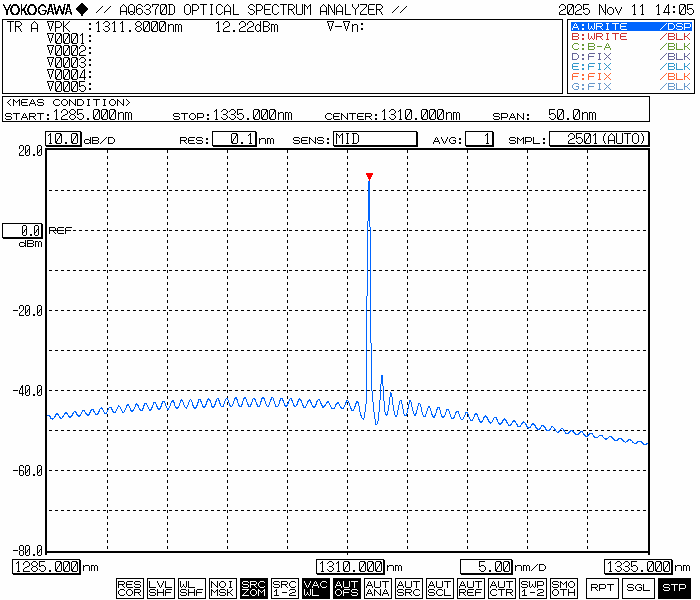

Spectral Width

nm

≤0.1

Output Optical Power

mW

≥10；≥20

Specifications available

Power Adjustment Range

-

10~100%

Short-term Stability (15 minutes)

dB

≤ ±0.02

Equivalent ≤±0.5%

Long-term Stability (8 hours)

dB

≤ ±0.05

Equivalent ≤±1.2%

Polarization State

-

stochastic

Polarization Extinction Ratio (PER)

dB

-

Fiber and Connectors

-

Corning SMF-28

FC/APC

Electrical and Environmental Parameters

Product Packaging

Desktop B2

Control Method

Touchscreen/RS232 Serial Communication

Communication Interface

DB9 Female

Power Supply

100~240V AC, <30W

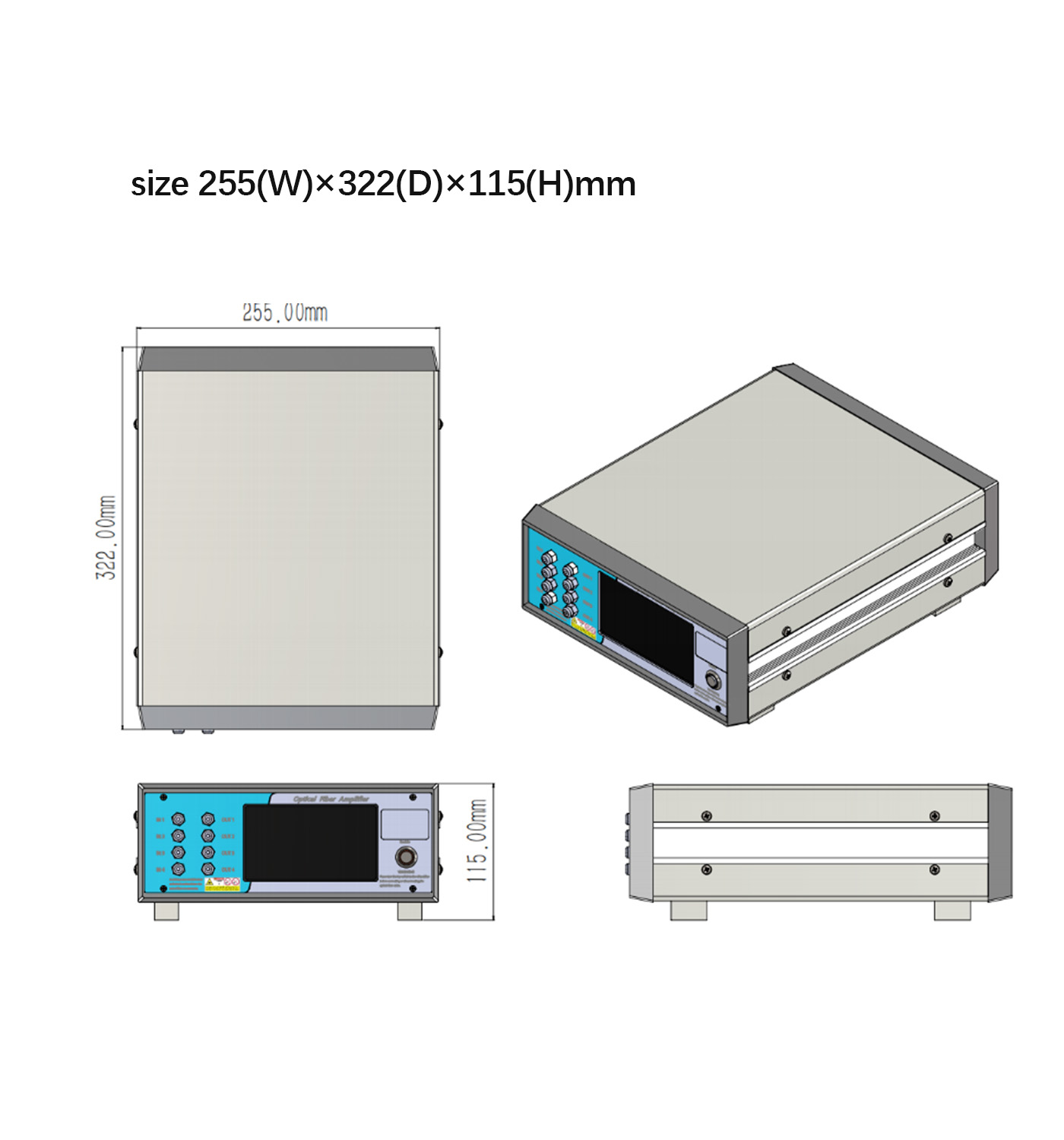

Dimensions (mm)

255(W)×322(D)×115(H)

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%

Product Type

Number of wavelength channels

Number of output optical fiber channels

wavelength （nm）

rate of work(mW)

Output pigtail type

Packaging form

MP-OMCFLS

8

8

1271~1341

10/20

SM = single-mode, non-polarization-maintaining

B2 = Desktop
