  • 1310 nm multi-channel continuous fiber optic light source, 100 mW per channel, 4 channels in total

    The 1310 nm multi-channel desktop light source is a core piece of equipment widely used in scientific research, experiments, and industrial production testing. It delivers stable multi-channel laser signals at the 1310 nm wavelength range, featuring spectral purity and reliable output power. The device supports a wide selection of wavelengths, enables flexible multi-wavelength configuration, offers independently adjustable parameters for each channel, features simple operation, and provides excellent safety performance. Leveraging these key advantages, it is extensively applied in fields such as fiber optic sensing, optical communication device testing, biomedical imaging, semiconductor inspection, and machine vision inspection, precisely meeting the requirements for high-performance, stable multi-channel light sources across diverse applications.

    Product features:Multi-channel independent output; high stability and pure spectrum; flexible wavelength configuration; user-friendly and safe operation

    Part Number: MP-OMCFLS-1310

    Application area:Fiber Optic Sensing | Testing of Optical Communication Devices | Biomedical Imaging | Semiconductor Inspection and Machine Vision

    Add to Cart Request for Quotation Consult Favorite

    Main parameters
  • Core parameters
  • Number of Lasers Wavelength Spectral Width

    4 1310±2nm ≤0.1nm

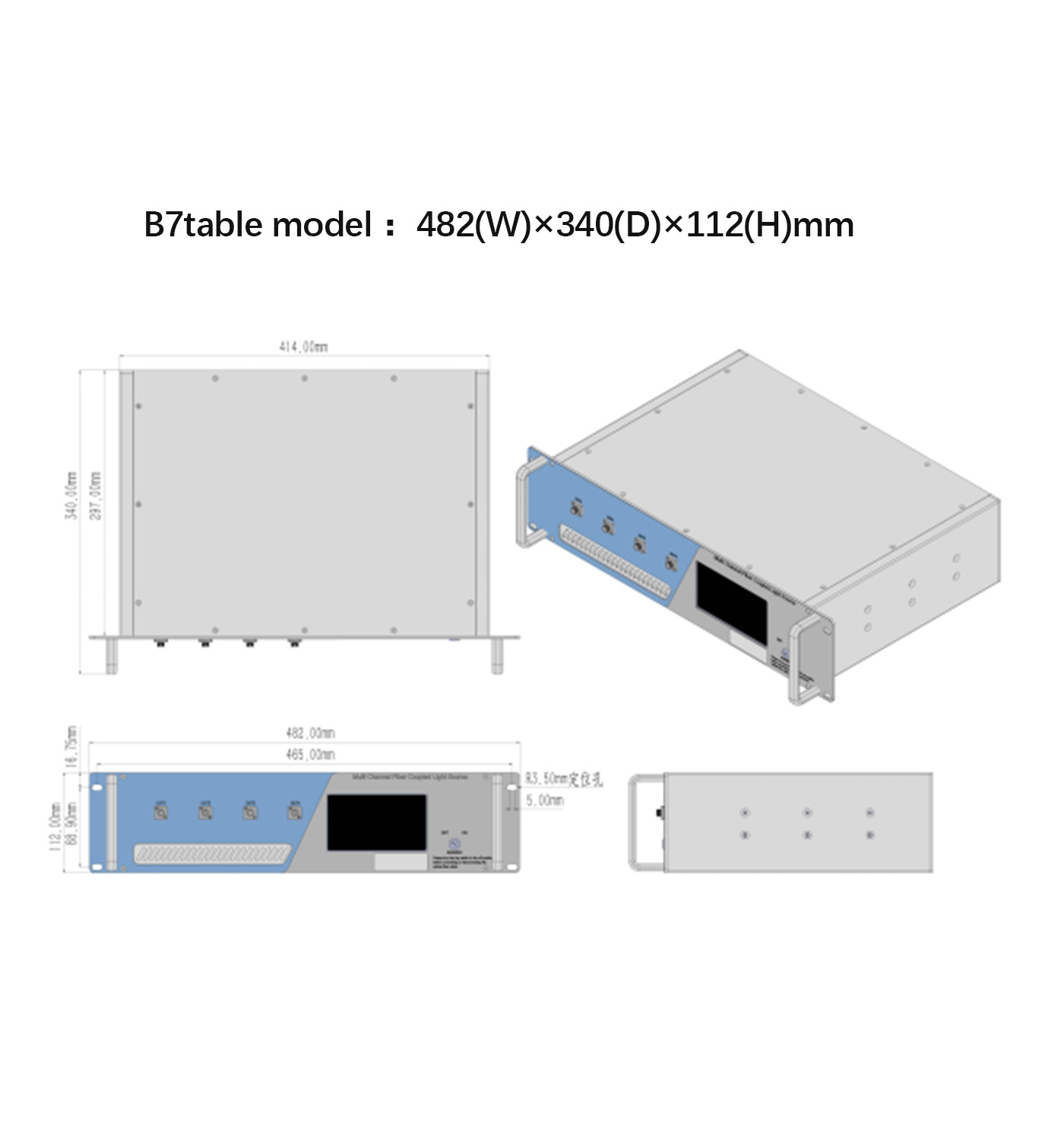

  • Dimension Drawing
  • General Parameters

    features

    4-channel independent output; power independently adjustable per channel; high stability

    Optical Specs

    unit

    representative value

    remarks

    Number of Lasers

    -

    4


    Number of Output Fiber Channels

    -

    4


    Wavelength

    nm

    1310±2


    Spectral Width

    nm

    ≤0.1


    Output Optical Power

    mW

    ≥100


    Power Adjustment Range

    -

    10%~100%


    Short-term Stability (15 min)

    dB

    ≤ ±0.02

    Equivalent ≤ ±0.5%

    Long-term Stability (8 hrs)

    dB

    ≤ ±0.05

    Equivalent ≤ ±1.2%

    Polarization State

    -

    random polarization


    Polarization Extinction Ratio (PER)

    dB

    -


    Fiber and Connectors

    -

    SMF-28 single-mode optical fiber; FC/APC


    Electrical and Environmental Specs

    Product Packaging

    B7 Desktop

    Control Method

    Touchscreen/RS232 Serial Communication

    Communication Interface

    DB9 Mother Port

    Power Supply

    100~240V AC, <30W

    Dimensions (mm)

    482(W)×340(D)×112(H)

    Operating Temperature Range

    -5~+35°C

    Operating Humidity Range

    0~70%

    Cooling Method

    Built-in air cooling

    product classification

    Number of Lasers

    Number of Optical Fiber Channels

    wavelength(nm)

    power(mW)

    Output Tail Fiber Type

    Packaging Format

    MP-OMCFLS

    4

    4

    1310

    100

    SM = Single-mode non-polarization-preserving

    B7 Desktop


    Typical wavelength spectrum



    1310nm

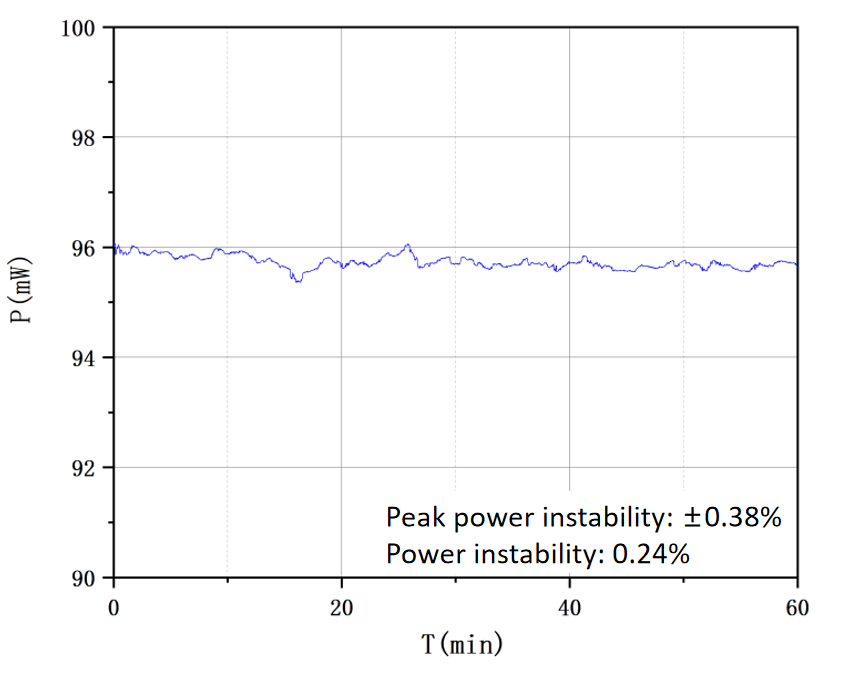

    Optical Power Stability Test



    Optional Configurations

    --
