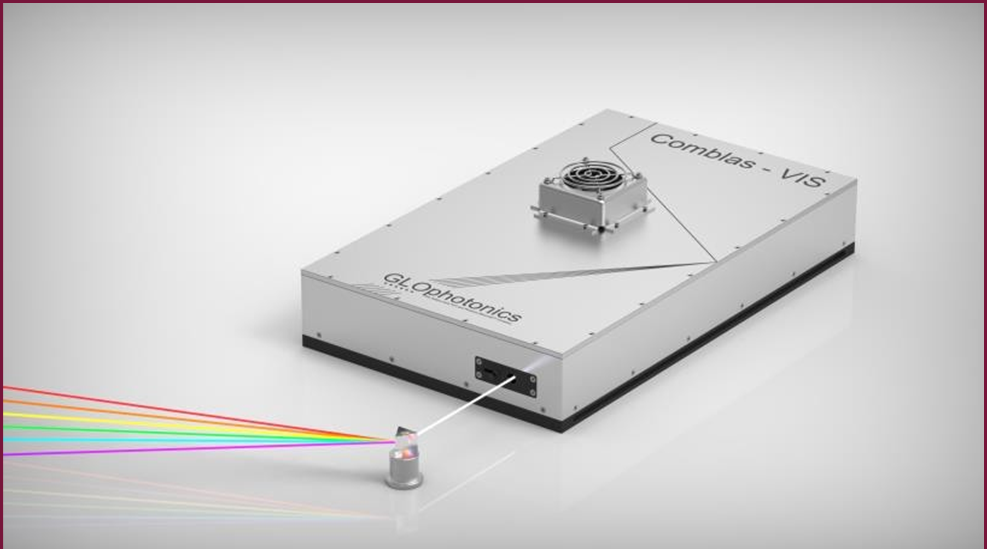

350-950m Comblas-VIS Visible and Long-Wave Ultraviolet (UV‑A) Fiber Laser

350-950m Comblas-VIS Visible and Long-Wave Ultraviolet (UV‑A) Fiber Laser

The GLOphotonics Comblas-VIS visible and long-wave UV-A fiber laser (350-950 nm) is designed for applications such as spectroscopy, flow cytometry, optical coherence tomography (OTC), trace gas analysis, bioimaging, and more.

Product features：Broadband: 350-950 nm;High power spectral density;No rack required;Compact design;Master control key

Part Number：MP-FLS-VIS-C-47m

Application area：Spectroscopy | Flow cytometry | Optical coherence tomography (OTC) | Trace gas analysis | Bioimaging

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Operating Wavelength Output Power

350 – 950 nm 47 mW

Dimension Drawing

General Parameters

Technical Parameters

Optical Parameters
Operating Wavelength	350 – 950 nm
Total Output Power [350 nm; 950 nm]	47 mW

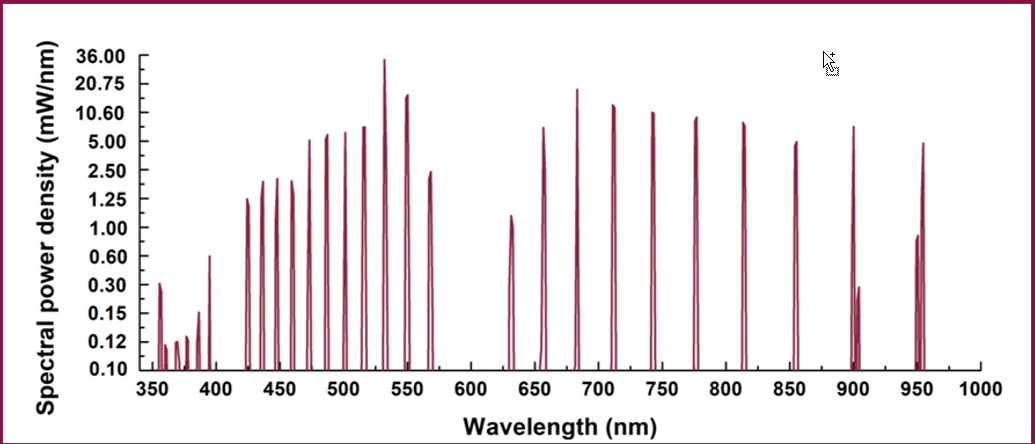

Spectral Power Density
Wavelength (nm)	Power Density (mW/nm)
355	0.30
369	0.12
377	0.12
386	0.15
395	0.60
424	1.25
437	1.85
448	1.85
459	1.85
473	5.00
486	5.50
501	6.00
515	7.50
532	32.0
549	15.00
567	2.50
632	1.80
656	7.50
683	17.50
712	12.50
743	10.60
777	8.70
855	5.00
900	7.50
950	5.00
Repetition Rate	10 kHz
Mechanical / Electrical Parameters
Operating Voltage	100 – 240 VAC, 50/60 Hz
System Cooling	Air‑cooled
Operating Temperature	18 °C – 25 °C
Laser Head Dimensions	288 × 470 × 106 mm
Controller Dimensions	21 × 17 × 5 mm
Laser Head Weight	11 kg
Controller Weight	1 kg

Optional Configurations

Downloads

No resources available
