λ-Rapid Series High-Speed Scanning ASE-Free Tunable Diode Lasers

λ-Rapid Series High-Speed Scanning ASE-Free Tunable Diode Lasers

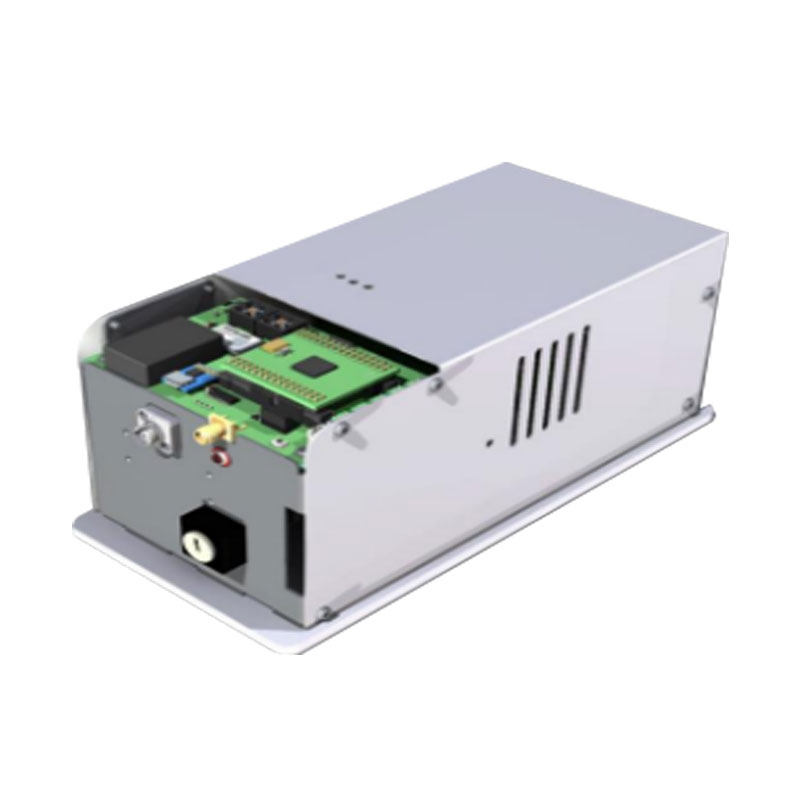

λ-Rapid Series High-Speed Scanning ASE-Free Tunable Diode Lasers is a laser light source based on an external cavity design, aiming to achieve mode-skipping high-speed tuning over a wide spectral range. Its core advantage lies in the high scanning rate, which can fully suppress amplified spontaneous emission noise and ensure edge mode suppression, thereby ensuring that the output laser has extremely high spectral purity. This series adopts polarization-maintaining fiber output and a compact and robust packaging design. It is mainly applicable to frequency-domain measurements such as optical frequency-domain reflectometers, optical communication testing, and quantum experiments.

Product features：ASE-free pure spectrum；Ultra-fast wavelength scanning；Broad tuning range；Precision wavelength locking；Intelligent control

Part Number：MP-λ-Rapid-C+L

Application area：Industrial process monitoring | LiDAR | Medical flow cytometry | Quantum experiments | Optical communications testing

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Wavelength Accuracy Output Power Fiber Type

0.5 nm 30mW PM

Dimension Drawing

General Parameters

Technical Parameters

Parameter	950nm	1014nm	1300nm	1580nm	Unit
Wavelength coverage range	920–1000	980–1080	50	C+L‑band	nm
Mode‑hop‑free tuning range	40	50	50	C+L‑band	nm
Absolute accuracy	0.5				nm
Repeatability	0.05				nm
Gap	0.05				nm
Stability¹	0.05				nm
Max. scan rate	250	400		600	nm/s
Digital tuning resolution	1				pm
Max. PM fiber output power	40	50	30	30	mW
Isolation	Max. 30		Max. 100		dB
Spectral purity	SMSR > 80				dB
Relative intensity noise (RIN)	150 (> 0.5 MHz)				dBc/Hz
PER	20				dB
Fiber connector	FC/APC，slow axis aligned
Trigger outputs	Driver: High when actuator is running. Constant: High during constant‑speed operation. Zone: High when operating between two specified wavelengths.
Package dimensions	Width 120 × Height 100 × Length		Width 100 × Height 100 × Length 200		mm
Mounting	Bench‑top module or OEM module

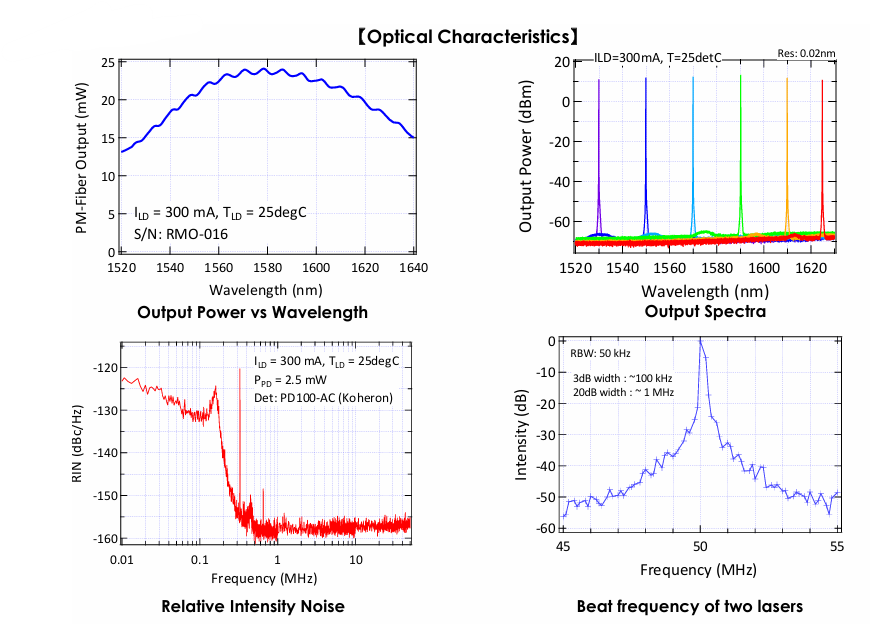

Optical Specifications

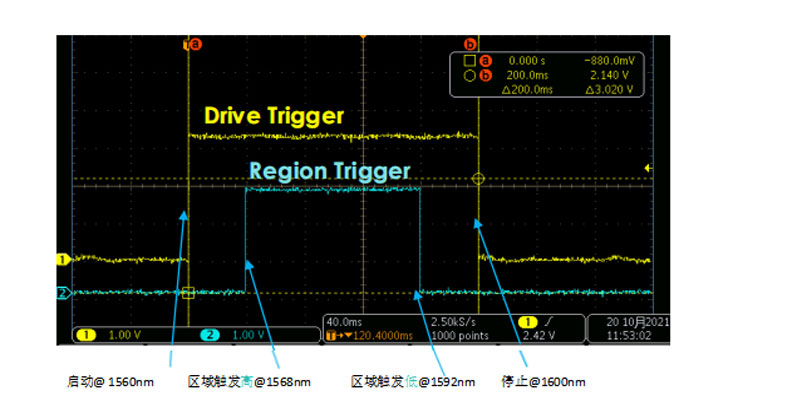

Trigger Configuration Diagram


Scan rate: 200 nm/s

Short wavelength: 1568 nm

Scan range: start 1560 nm, end 1600 nm

Long wavelength: 1592 nm
