    • O‑Band 1310nm Manually Tunable Fiber Laser

    The fiber laser employs a proprietary design. The laser mainly consists of a gain block and a frequency‑selection engine. Each component can be configured according to specific requirements, which leaves ample flexibility for achieving variations in tuning range and optical output power. Wavelength tuning is accomplished either by manually adjusting a micrometer or by a micro‑motor controlled via a PC through a USB interface. Fast setup, small footprint, rapid scanning, wide tuning range, and availability in the X, O, SC, and L bands make this laser a cost‑effective source for R&D and laboratory purposes in various tests related to wavelength measurement, such as DWDM components, fiber Bragg gratings, and FBG sensor interrogation.

    Product features：Manual precise tuning；High output power；Ultra‑narrow linewidth；Intelligent control；Industrial‑grade design

    Part Number：MP-WTLS-1310-5-90-SA-H

    Application area：Optical communication testing | Optical fiber sensing | Quantum experiments | LiDAR | Spectroscopy research

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    1310nm 5mW

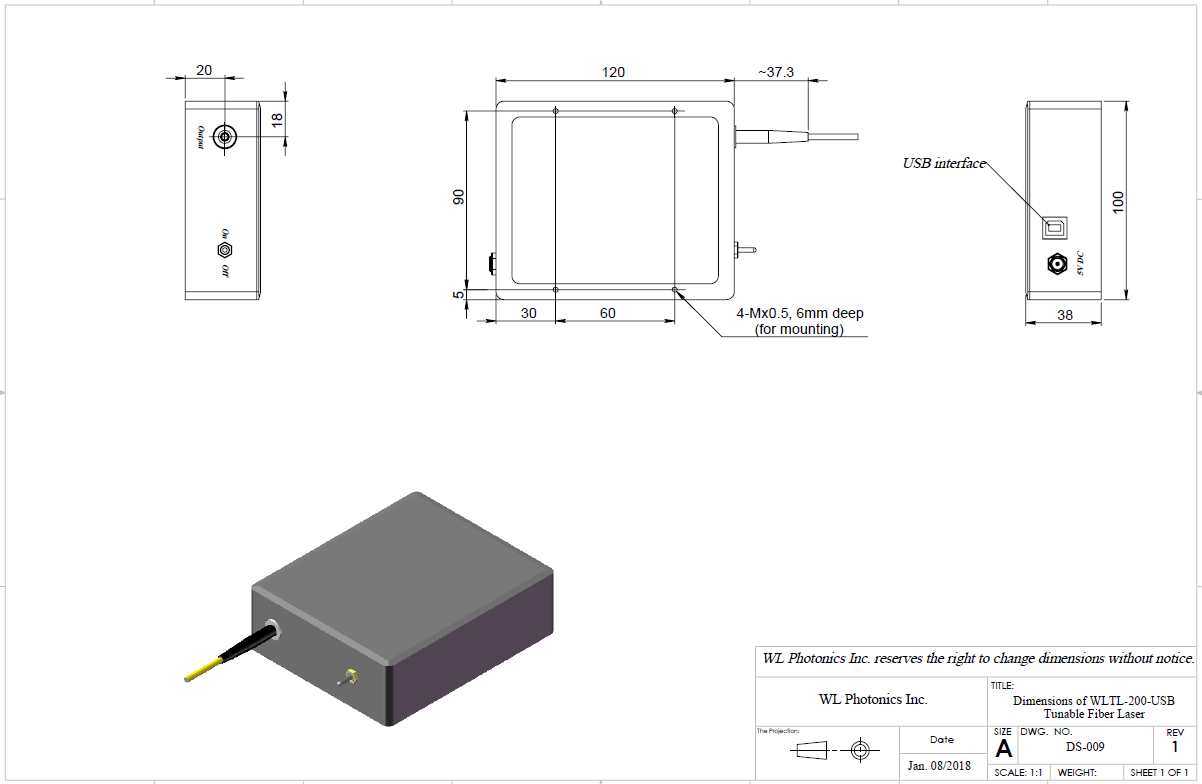

  • Dimension Drawing
    • General Parameters

    Technical Parameters



    Parameter

    Specification

    Band

    O‑band

    Center wavelength

    1310 ± 20 nm

    Tuning range

    90 nm

    Fiber output power

    >5 mW

    Power stability

    < ±0.10 dB over 1 hour at room temperature

    Wavelength resolution

    0.01 nm

    Wavelength repeatability

    ±0.02 nm (from origin to target)

    Max. tuning speed

    40nm/Sec.

    Spectral linewidth

    <0.05 nm

    ASE suppression ratio

    < –70 dB

    Output polarization state

    Polarized

    Extinction ratio

    >20 dB (PM fiber output only)

    Optical interface

    Receptacle for connector type or fiber pigtail

    Fiber type

    SMF‑28 (or 28e) / PM1300

    Electrical control interface

    USB standard (I²C or SPI options available upon request)

    Power supply

    5 V / 3 A DC

    Operating temperature

    10 – 50 °C

    Storage temperature

    –10 – 65 °C

    Weight

    <0.75kg

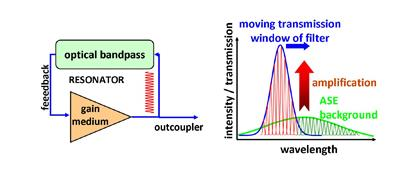

    Principle of the Tunable Laser

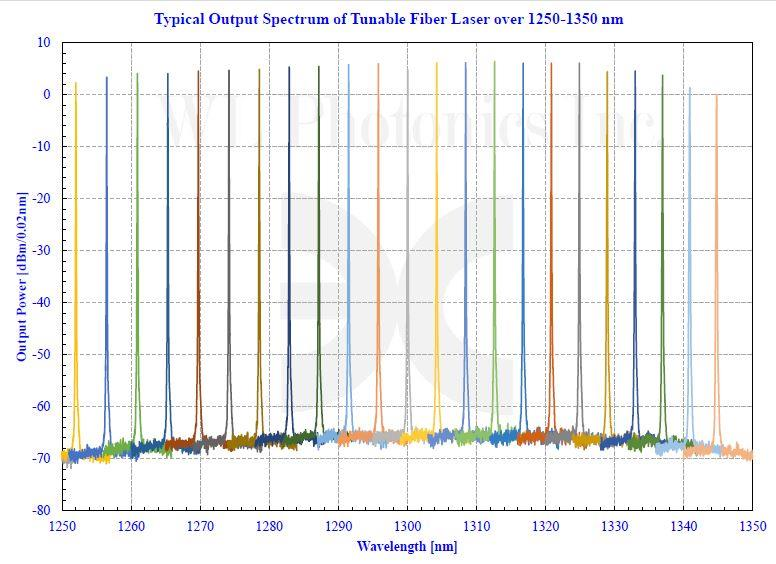

    Output Power Diagram of the O‑Band Tunable Laser





    Optional Configurations

    --
