Tuning range

920–1000 nm

980–1090 nm, 1060–1150 nm optional

Mode‑hop‑free tuning range

>50 nm

Over the entire specified tuning range

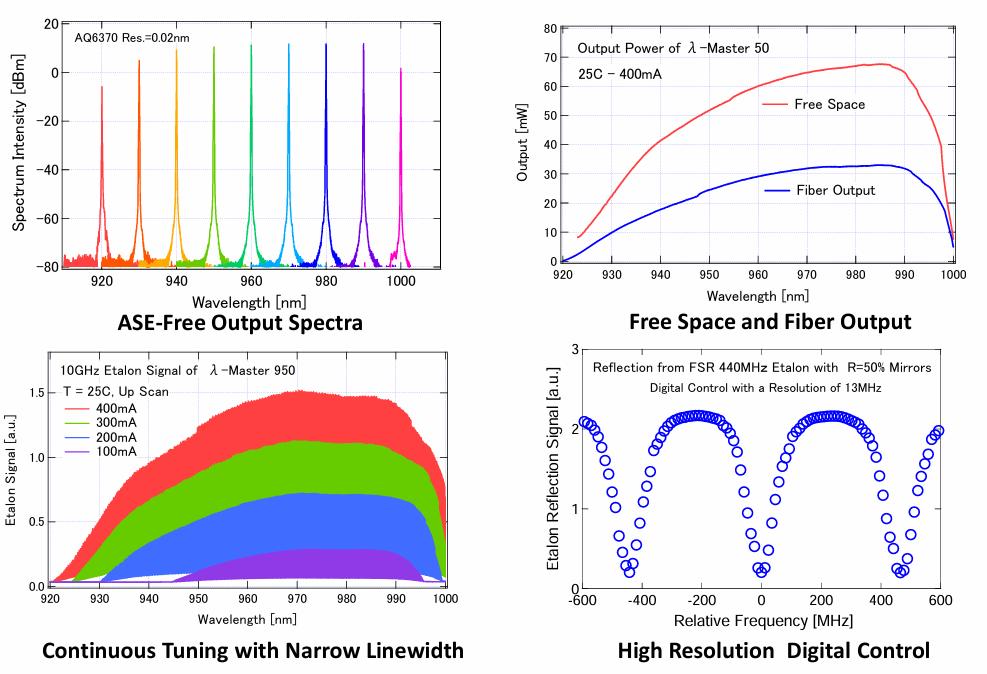

ASE‑free output power

>60 mW @ 980 nm

SMSR >80 dB @ 0.01 nm

Fiber‑coupled output power

>30 mW @ 980 nm

FC/APC connector

Tuning resolution

0.1 pm (30 MHz)

Optional: 0.01 pm (3 MHz)

Max. tuning speed

30 nm/s

Any speed between 1 and 300,000 pps

Linewidth (1 μs)

<100 kHz

Under quiet environment

Current modulation

~45 MHz/mA

Bandwidth <50 kHz

PZT tuning

~10 GHz for 150 V

Optional

Built‑in etalon monitor

10 GHz FSR etalon

Optional

Optical isolation

>25 dB

Broadband isolator optional

Data acquisition function

16‑bit, 2‑channel analog input

—

Pulse synchronization control

Digital control interface

—

DI and DO ports

—

Synchronization to other instruments for scanning

System control

Through LabVIEW and USB

—
