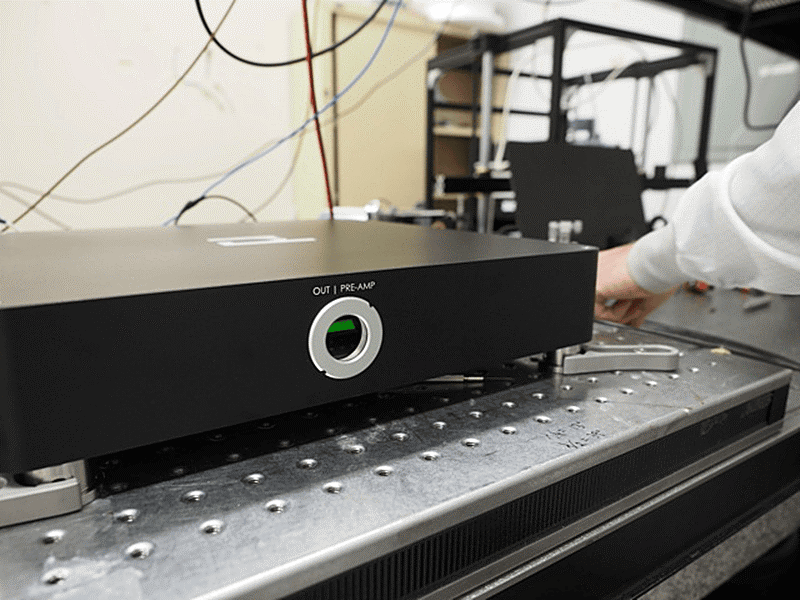

    • 2800±20 nm, 35 mW ，35 MHz Mid‑Infrared Ultrafast Fiber Pulsed Laser

    Femtum, as a solution expert in mid-infrared ultrafast fiber lasers, has developed the world's advanced mid-infrared ultrafast laser. It provides excellent parameters and performance for innovative fiber lasers, intended for mid-infrared scientific research.

    Product features：Mid-infrared ultrafast pulses;High average power;All-fiber structure;Synchronous triggering;Compact benchtop design

    Part Number：MP-FLS-2800-P-FS500-35M-35m

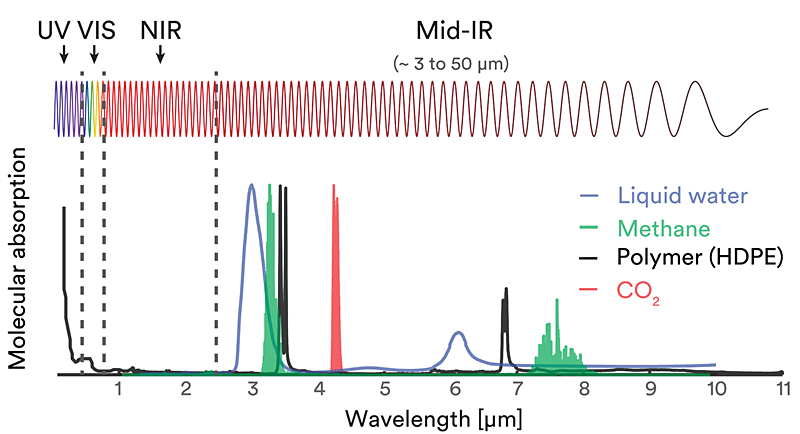

    Application area：Molecular Dynamics Studies | Medical Surgery | Material Processing | Gas Sensing | Nonlinear Optics

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    2800±5 nm 35 mW

  • Dimension Drawing
    • General Parameters

    Technical Parameters




    Main Parameters

    Standard

    Custom

    Center Wavelength

    2800±20 nm

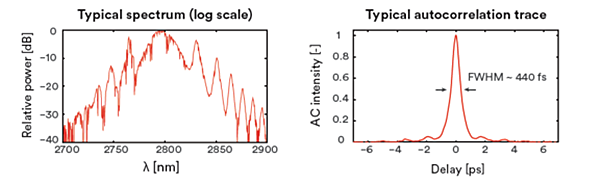

    Spectral Width

    10-30 nm

    Average Power

    35 mW

    >300 mW

    Repetition Rate

    ~35 MHz

    40-100 MHz

    Pulse Energy

    1 nJ

    >5 nJ

    Pulse Width

    ~500 fs

    200-500 fs

    Peak Power

    >1 kW

    >10 kW

    Output Polarization State

    Linear polarization

    Beam Diameter

    <3 mm

    M²

    <1.3

    Dimensions

    24 × 5.2 × 17.3 inches

    Cooling

    Fan-cooled

    Voltage

    100-240 V

    Laser Output

    Free-space

    Fiber Output

    Control

    Computer control or integrated touchscreen







    Optional Configurations

    --

    Downloads

    No resources available
