    • 3–3.4 μm Ultrafast broadband tunable mid-infrared fiber laser

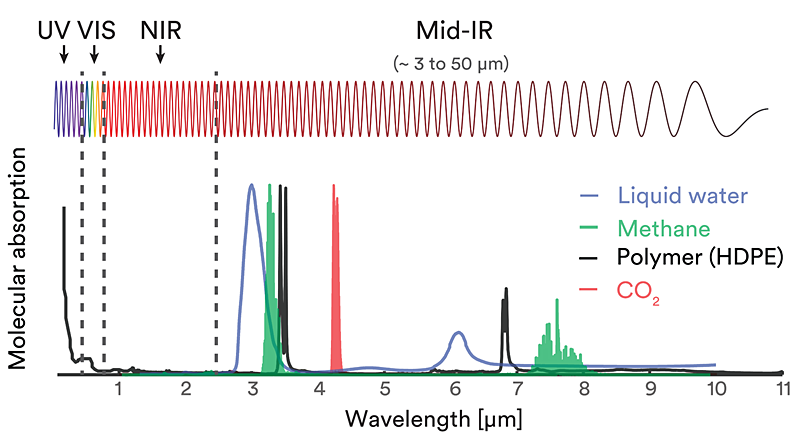

    This is a commercial ultrafast, broadband, tunable mid-infrared fiber laser based on erbium-doped fluoride fiber technology, operating in the 3–3.4 μm wavelength range. Employing an all-fiber architecture and automatic mode-locking design, it delivers femtosecond-level pulse output while supporting wide spectral tuning. With its compact structure, high stability, and maintenance-free operation, it serves as an ideal light source for advanced scientific research and industrial applications, including high-sensitivity spectroscopy, nonlinear frequency conversion, precision processing of polymer materials, and biomedical imaging.

    Product features：Ultra‑wide mid‑infrared tuning;Ultrafast pulse output;High average power;All‑fiber architecture;Synchronous trigger

    Part Number：MP-WTLS-MIR-100-ITU-SA-B

    Application area：Biomedical imaging | Environmental monitoring | Semiconductor metrology | Defense security | Quantum optics

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    3-3.4um 100mW

  • Dimension Drawing
    • General Parameters

    Technical Parameters








    Main Parameters

    Standard

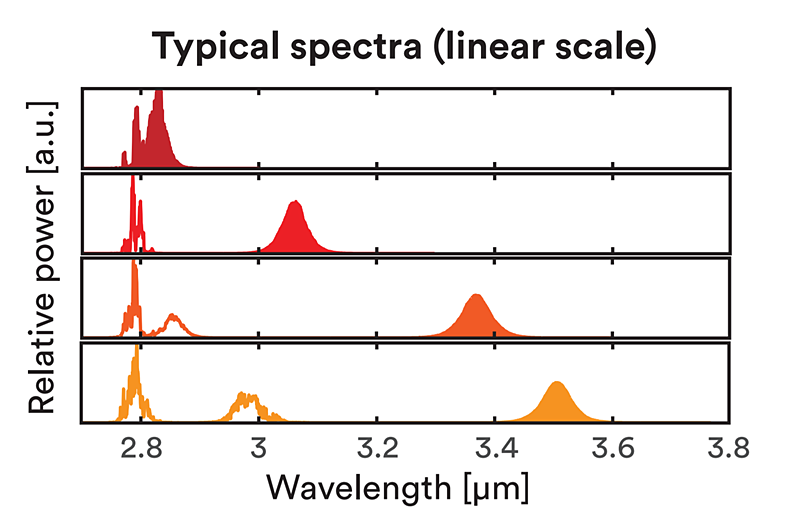

    Center Wavelength

    3–3.4 µm

    Spectral width (FWHM)

    > 40 nm

    Average Power

    > 100 mW (> 500 mW @ 3400 nm)

    Repetition Rate

    ~35 MHz (> 50 MHz optional)

    Pulse Energy

    > 3.5 nJ (> 17 nJ @ 3400 nm)

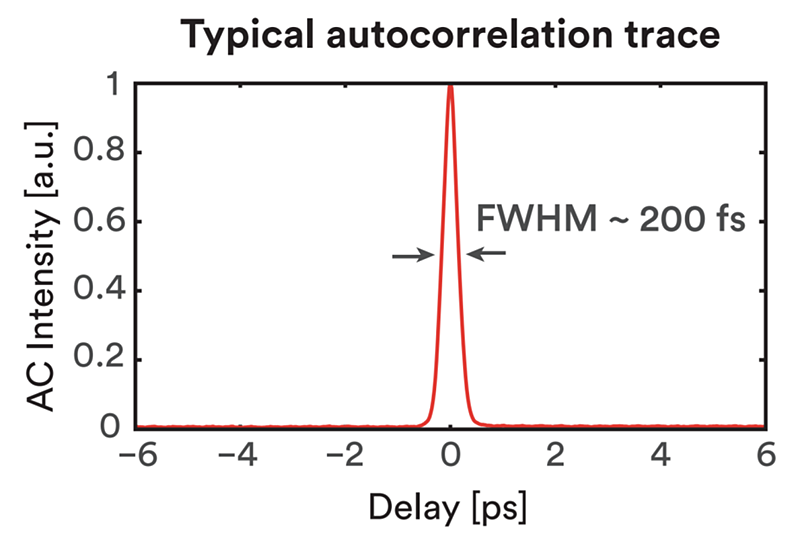

    Pulse duration

    < 500 fs

    Peak Power

    ~1 – > 50 kW

    Output polarization

    Random

    Beam diameter

    ~3 mm or 9 mm

    M²

    <1.3

    Dimensions

    19 × 5.5 × 20.5 inches

    Cooling

    Air-cooled

    Voltage

    100–240 V, 50/60 Hz

    Laser Output

    Free-space or fiber-coupled output

    Control

    Computer control or integrated touchscreen




    Optional Configurations

    --
