    • 1550nm 200kHz FBG Single-Frequency Ultra-Narrow Linewidth Laser

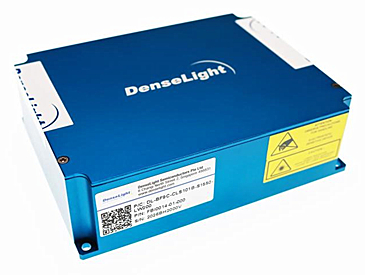

    MP-NL-1550.12-10-50k-B is a wavelength‑tunable, modulatable single‑frequency laser. The product is an external‑cavity tunable laser based on a built‑in FBG. It can be applied in optical measurement and inspection, optical sensor applications, and high‑precision OTDR applications. The product features excellent wavelength and power stability, as well as outstanding SMSR.

    Product features：Built‑in optical isolator (optional);Single‑mode fiber output;Integrated current driver and temperature controller;+5 V power supply (AC/DC adapter included);Compact size (custom dimensions available);RoHS compliant

    Part Number：MP-NL-1550-10-200k-B

    Application area：High‑precision OTDR | Optical measurement equipment | Optical gas and chemical sensors

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power Linewidth

    1550.12nm 10mW <200 kHz

  • Dimension Drawing
    • General Parameters

    Technical Parameters

    14‑Pin Butterfly Package Laser Diode

    Min. Power (mW)

    Center Wavelength (nm)

    SMSR (dB)

    Linewidth (kHz)

    CLS051B‑S1260

    5

    1260±2

    >35

    <50

    CLS051B‑S1383

    5

    1383±2

    >35

    <50

    CLS101B‑S1550

    10

    1550±2

    >35

    <50

    CLS051B‑S1648

    5

    1648±2

    >35

    <50

    CLS081B‑S1653

    8

    1653±2 (typ. 1653.5 nm)

    >35

    <50

    CLS051B‑S1665

    5

    1665±2

    >35

    <50

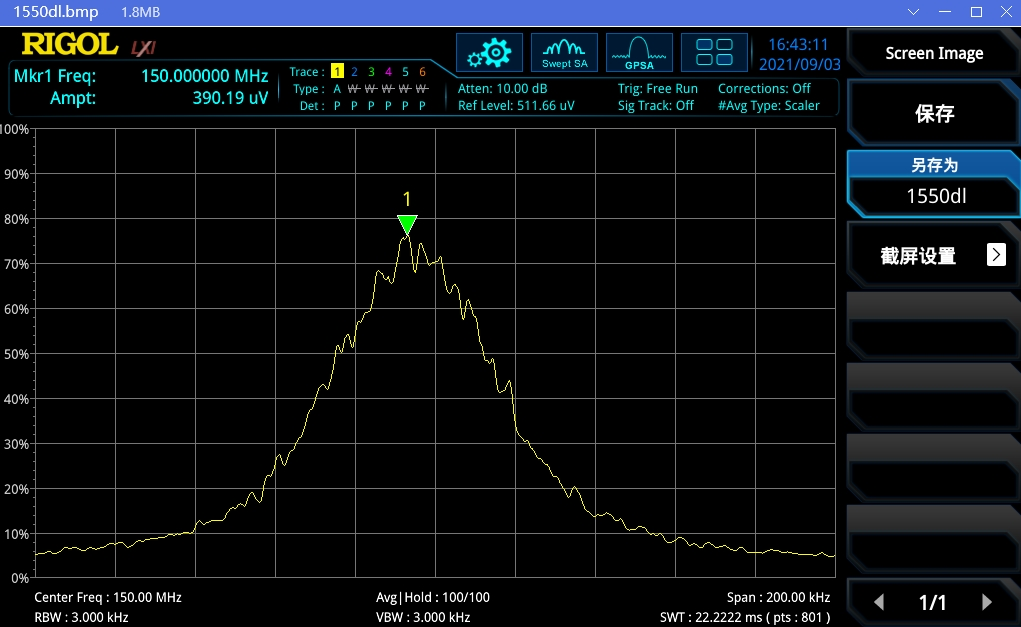

     Linewidth Test Data



    Optional Configurations

    --
