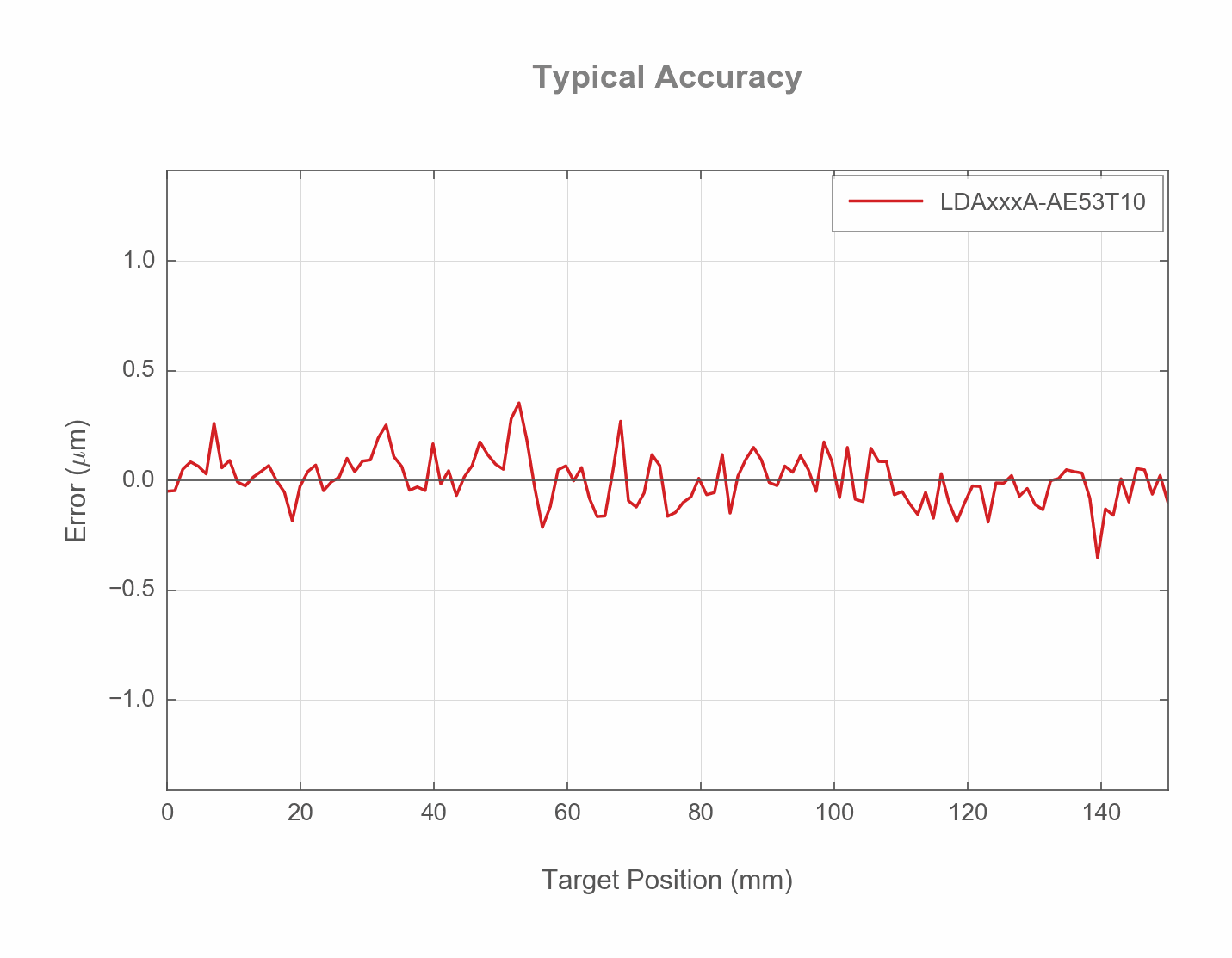

Accuracy (unidirectional)

1.5 µm

AutoDetect

Yes

Axes of Motion

1

Built‑in Controller

No

CE Compliant

Yes

Encoder Count Resolution

1 nm

Encoder Type

Linear analog encoder

Force Constant

3.7 N/A（0.8 lbs/A）

Guide Type

Crossed-Roller Bearing

Horizontal Runout

< 4 µm

Inductance

0.09 mH/phase

Limit or Home Sensing

Optical Index Mark

Maximum Acceleration

78.5 m/s²

Maximum Centered Load

100 N

Maximum Continuous Thrust

6 N

Maximum Speed

800 mm/s

Minimum Incremental Move

12 nm

Minimum Speed

0.61 nm/s

Motor Connection

D-sub 26-pin

Motor Rated Current

1800 mA/phase

Motor Type

Moving Magnet Track Linear Motor

Motor Winding Resistance

2.3 Ω/phase

Mounting Interface

M6 threaded holes

Moving Mass

0.29 kg

Operating Temperature Range

0 ~ 50 °C

Peak Thrust

16 N

Pitch

0.006°

Recommended Controller

X-MCC (48 V) recommended

Repeatability

< 0.2 µm

Roll

0.005°

Speed Resolution

0.61 nm/s

Stiffness in Pitch

500 N·m/°

Stiffness in Roll

500 N·m/°

Stiffness in Yaw

400 N·m/°

Travel Range

25 mm

Typical Velocity Stability

±0.33% at 100 mm/s with a 1.0 kg payload

Vacuum Compatible

No

Vertical Runout

< 4 µm

Weight

0.88 kg

Yaw

0.005°
