    • High-Precision Voice Coil Motor Linear Motion Stage

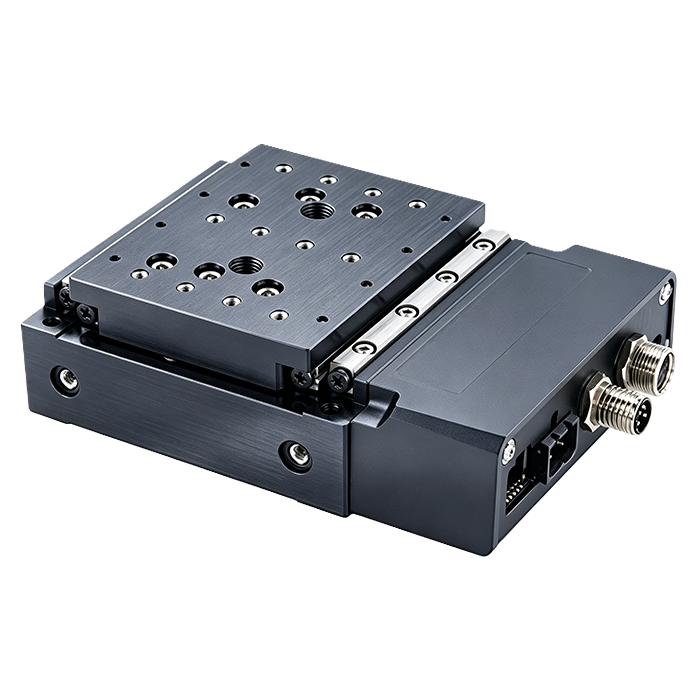

    The MP-LS-10-8-0.05 is an integrated high-precision voice coil motor linear positioning stage, designed for nanometer-scale positioning and high-speed precision motion control applications. It employs moving-magnet voice coil drive technology, combined with a linear analog encoder and cross-roller guideways, to achieve high resolution, high repeatability, and stable motion performance. The stage incorporates a built-in motion controller, which can be controlled via an RS‑232 communication interface and supports the Zaber ASCII communication protocol. It is suitable for research experiments, optical system integration, semiconductor equipment, and precision automation applications.

    Product features：10 mm precision linear stroke；Repeatability < 0.05 μm；Unidirectional positioning accuracy 8 μm；Voice coil motor direct drive – no mechanical backlash；Integrated motion controller for simplified system integration；Linear analog encoder with closed‑loop feedback

    Part Number：MP-LS-10-8-0.05

    Application area：Semiconductor inspection equipment | Optical precision positioning | Laser processing equipment | Microscopy imaging systems | Automated test platforms | Nanopositioning systems | Research experimental platforms

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Unidirectional Positioning Accuracy Repeatability

    8 μm <0.05 μm

  • Dimension Drawing
    • General Parameters

    Technical Specifications

    Parameter

    Specification

    Number of Axes

    1 axis

    Stroke

    10 mm

    Maximum Continuous Force

    5 N

    Peak Force

    15 N

    Moving Mass

    0.18 kg

    Total Weight

    0.5 kg

    Unidirectional Positioning Accuracy

    8 μm

    Repeatability

    <0.05 μm

    Minimum Incremental Motion

    10 nm

    Encoder Resolution

    1 nm

    Minimum Speed

    0.61 nm/s

    Speed Resolution

    0.61 nm/s

    Motor Type

    Moving-magnet voice coil motor

    Force Constant

    2.23 N/A

    Guide Type

    Creep-free cross-roller guide

    Encoder Type

    Linear analog encoder

    Built‑in Controller

    Yes

    Communication Interface

    RS-232

    Communication

    Zaber ASCII（default）

    Data Connector

    Locking M8 4-pin connector

    Analog Inputs

    1 channel

    Digital Inputs

    2 channels

    Digital Outputs

    1 channel

    LED Status Indicator

    Yes

    Power Input

    48 VDC

    Power Connector

    2‑pin screw terminal

    Operating Temperature

    0～50 ℃

    Vacuum Compatibility

    Not supported




    Optional Configurations

    --
