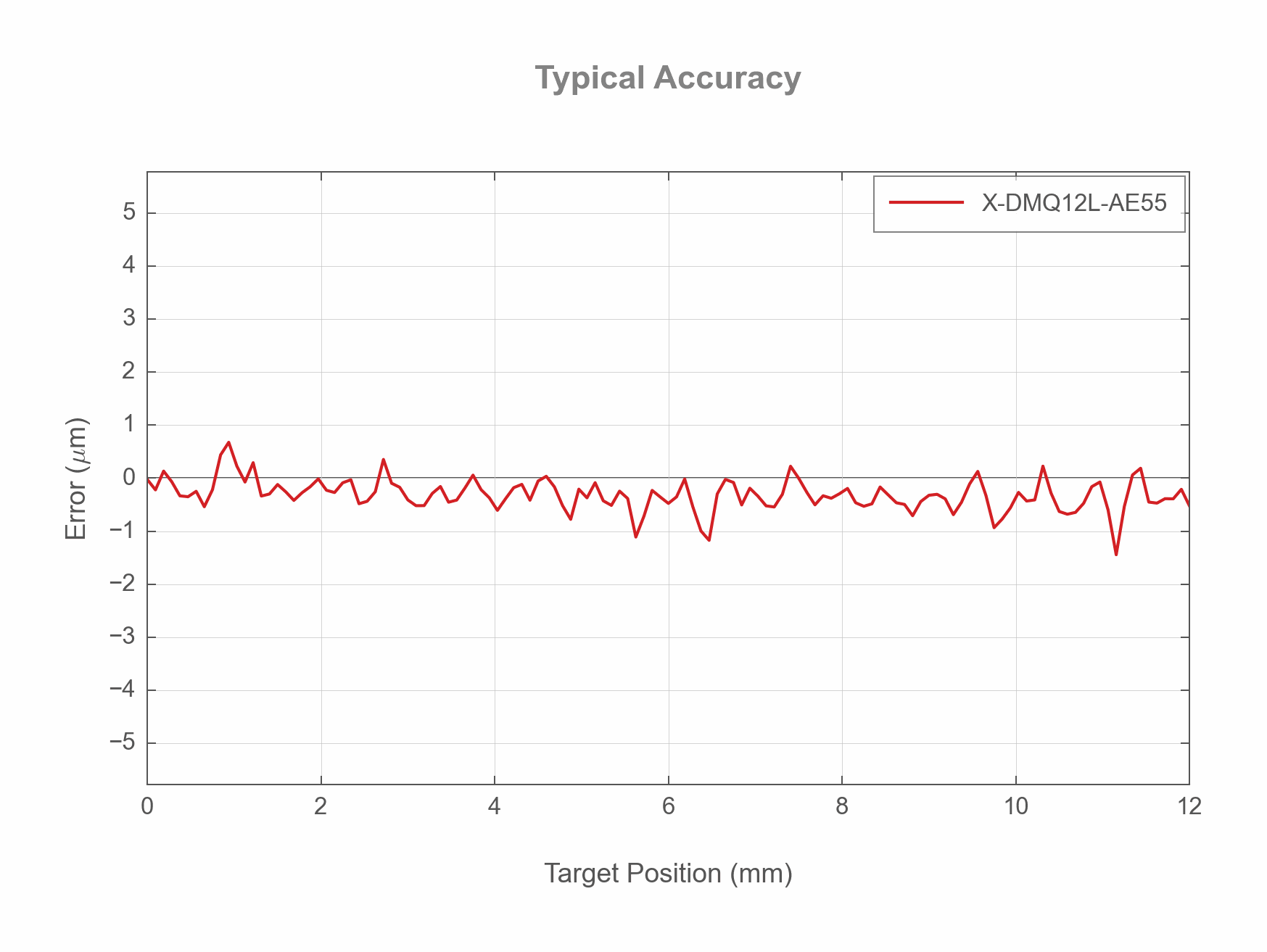

Accuracy (unidirectional)

4 µm

Axes of motion

1

Built‑in controller

Yes

CE compliant

Yes

Communication interface

RS-232

Communication protocol

Zaber ASCII (default)

Data cable connection

Locking 4-pin M8

Digital inputs

1

Digital outputs

2

Encoder count resolution

1 nm

Encoder type

Linear analogue encoder

Force constant

12.6 N/A

Guide type

Crossed-roller bearing

Horizontal runout

< 5 µm

LED indicators

Yes

Limit or home sensing

Optical index mark

Manual control

Yes

Maximum acceleration

245 m/s²

Maximum centred load

100 N

Maximum continuous thrust

12 N

Maximum current draw

1000 mA

Maximum speed

1400 mm/s

Mechanical drive system

Moving-coil direct drive

Minimum incremental move

200 nm

Minimum speed

0.61 nm/s

Motor type

Voice-coil linear actuator

Mounting interface

M6 and M3 threaded holes

Moving mass

0.095 kg

Operating temperature range

0 to 50 °C

Peak thrust

26 N

Pitch

0.01°

Power plug

2-pin screw terminal

Power supply

24 – 48 VDC

Repeatability

< 0.5 µm

Roll

0.01°

Speed resolution

0.61 nm/s

Stiffness in pitch

50 N·m/°

Stiffness in roll

70 N·m/°

Stiffness in yaw

85 N·m/°

Travel range

12 mm

Typical velocity stability

± 4.7 % at 10 mm/s with a 0.38 kg payload

Vacuum compatible

No

Vertical runout

< 6 µm

Weight

0.8 kg

Yaw

0.01°
