High-Precision Stepper Motor Leadscrew-Driven Linear Positioning Stage

High-Precision Stepper Motor Leadscrew-Driven Linear Positioning Stage

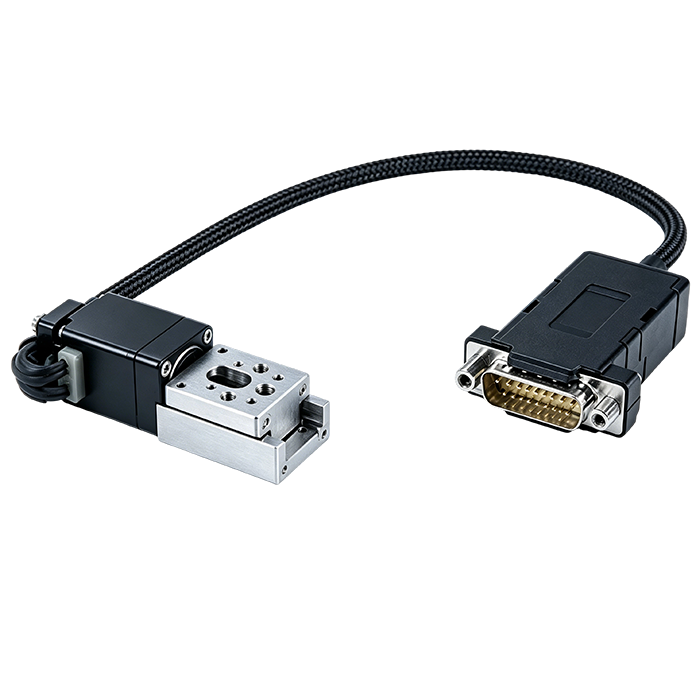

The MP-LS-10-18-1 is a high-precision single-axis linear positioning stage that combines a two-phase stepper motor with a precision leadscrew drive. It provides reliable, short-stroke motion control for optical experiments, automation equipment, and precision positioning systems. Equipped with ball guideways and Hall-effect magnetic sensor limit switches, the stage achieves micron‑level repeatability, making it suitable for research and industrial applications that demand high thrust, high stability, and accurate positioning.

Product features：10 mm precision linear stroke；Repeatability < 1 μm；Unidirectional positioning accuracy 18 μm；Precision leadscrew drive for stable and reliable positioning；Two‑phase stepper motor drive；Microstepping control, default 1/64 microstep subdivision

Part Number：MP-LS-10-18-1

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Unidirectional Positioning Accuracy Repeatability

18 μm < 1 μm

Dimension Drawing

General Parameters

Technical Specifications

Parameter	Specification
Number of Axes	1 axis
Stroke	10 mm
Maximum Continuous Force	25 N
Peak Force	35 N
Total Weight	0.115 kg
Unidirectional Positioning Accuracy	18 μm
Repeatability	< 1 μm
Backlash	< 5 μm
Default Microstep Resolution	1/64 Step
Microstep Displacement	0.0238125 μm
Minimum Speed	0.000015 mm/s
Speed Resolution	0.000015 mm/s
Motor Type	Two-phase stepper motor
Motor Frame Size	NEMA 08
Mechanical Transmission	Precision leadscrew
Guide Type	Ball guideway
Linear Travel per Revolution	0.3048 mm
Motor Step Angle	0.09°
Steps per Revolution	200 Steps
Rated Current	240 mA/Phase
Motor Power	2.35 W
Winding Resistance	20.4 Ω/Phase
Winding Inductance	5 mH/Phase
Built‑in Controller	No
Recommended Controller	X-MCC (48 V)
AutoDetect	Supported
Motor Connector	D-sub 15
Encoder	None
Limit Sensing	Hall-effect magnetic sensors
Horizontal Runout	< 13 μm
Vertical Runout	< 50 μm
Pitch	0.09°
Roll	0.03°
Yaw	0.04°
Mounting Holes	M2, M3 threaded holes and M4 center mounting hole
Operating Temperature	0 ～ 50 °C
Vacuum Compatibility	Not supported
CE Certification	Supported

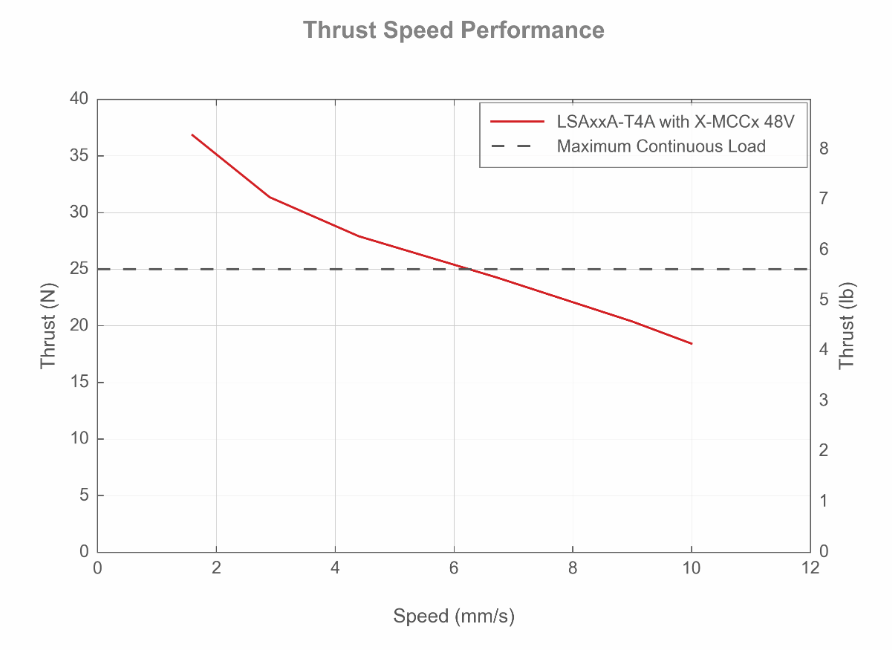

Thrust‑Speed Performance Curve


Optional Configurations

Downloads
