    • Ultra-High Vacuum Thin-Walled Glass Cell

    The MP-TWC-20-20-65 is a high-performance glass vacuum cell specifically designed for ultra‑high vacuum (UHV) quantum experiments, providing excellent optical access for cold atom, quantum optics, and precision measurement applications. Manufactured from Borofloat® 33 borosilicate glass and leveraging AVR Optics (Infleqtion)’s proprietary glass‑to‑metal sealing technology, the cell is assembled without epoxy or glass frit. This approach ensures outstanding vacuum performance while substantially reducing outgassing rates, making it highly suitable for long‑term, stable UHV systems.

    Product features：Excellent optical access；Ultra‑high vacuum compatibility；Contamination‑free sealing process；High reliability

    Part Number：MP-TWC-20-20-65

    Application area：Cold atom experiments | Quantum computing | Quantum sensing | Precision measurements

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Outer Dimensions Wall Thickness Optical Flatness

    23 × 23 × 69 mm 1.5 ± 0.2 mm < 2–4 λ / 10 mm aperture (PV)

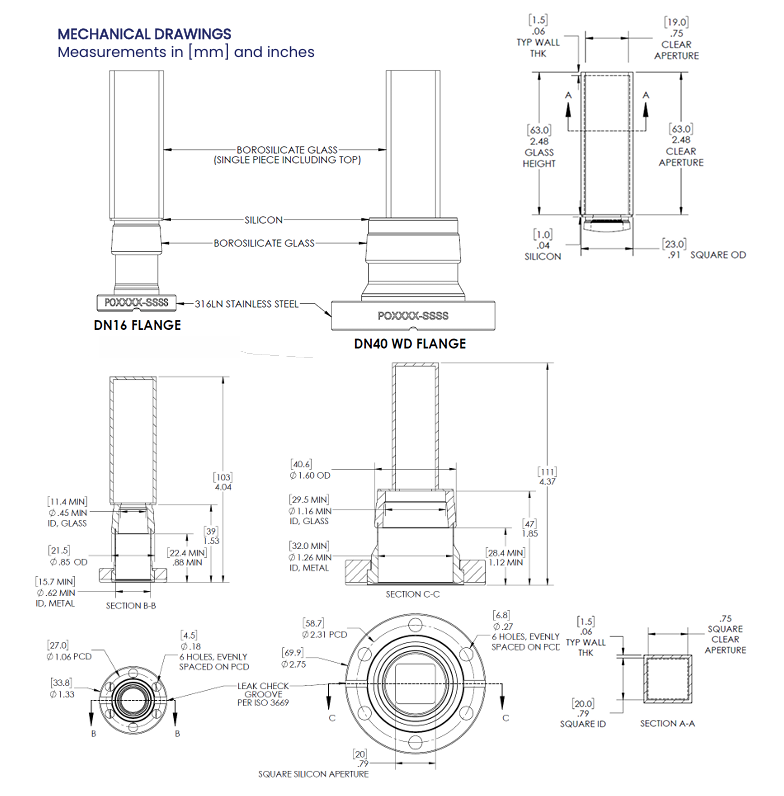

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Outer Dimensions (W × D × L)

    23 × 23 × 69 mm

    Inner Dimensions (W × D × L)

    20 × 20 × 65 mm

    Wall Thickness

    1.5 ± 0.2 mm

    Optical Flatness

    < 2–4 λ / 10 mm aperture (PV)

    Coating Options

    Uncoated

    Cell Material

    Borofloat‑33

    Surface Quality (Scratch/Dig)

    20‑10

    Bake‑Out Temperature

    ≤ 300 °C

    Ramp Up/Down Rate

    1 °C/min

    Flange Width (Conflat Type)

    DN16 (1.33″, 33.78 mm)

    DN40 (2.75″, 69.85 mm)

    Flange Height

    48 ± 2 mm


    Optional Configurations

    --
