    • 450nm 2W Pulsed Laser Diode Module

    The laser diode module is a 450 nm GaN laser diode in a 3-pin coaxial package. The laser diode is optically coupled with 200/230/500µm fiber pigtails. The device includes an ESD (electrostatic discharge) protection diode. The laser diode module is designed specifically for uncooled optical metrology applications requiring pulsed optical power, and it meets RoHS standards.

    Product features：High peak power；High-speed modulation；Wide wavelength selection；Compact packaging；Low thermal resistance design

    Part Number：MP-PLD-450-2-TO56

    Application area：LiDAR | Laser ranging | Fiber-optic sensing | Medical equipment | Optical triggering

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center wavelength Spectral width Peak optical power

    450 nm (RMS)1nm min 2W

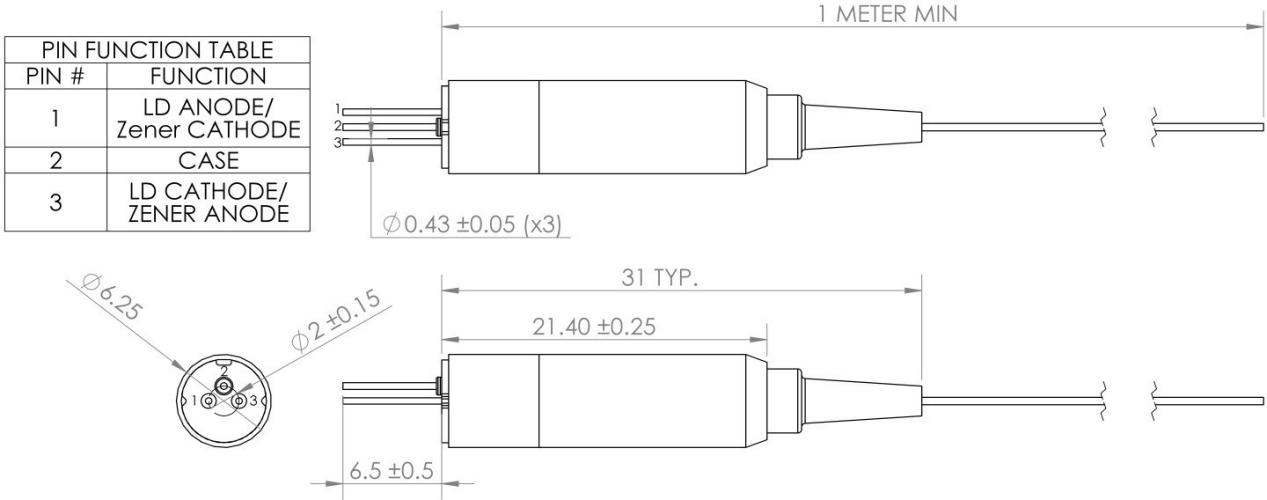

  • Dimension Drawing
    • General Parameters

    Model parameters

    Product performance

    (Tamb = 25°C. unless otherwise noted) :

    Parameters

    symbol

    conditions

    Min. value

    Typical values

    Max. value

    unit

    Peak optical power (except fiber)

    Po

    If = 2000 mA; Pw = 1 us; D/C = .01%

    2



    W

    Absolute Max. Forward current

    Imax

    Pw = 1 us; D/C = .01%



    2500

    mA

    Threshold current

    Ith

    Pw = 1 us; D/C = .01%


    300


    mA

    Forward voltage

    Vf

    If = 2000 mA; Pw = 1 us; D/C = .01%


    6


    V

    Center wavelength

    l

    If = 2000 mA; Pw = 1 us; D/C = .01%

    440

    450

    460

    nm

    Spectral width (RMS).

    Dl

    If = 2000 mA; Pw = 1 us; D/C = .01%


    1


    nm

    Operating temperature range

    Top

    If = 2000 mA; Pw = 1 us; D/C = .01%

    -30


    70

    ℃

    Storage temperature range

    Tstg

    Non-operating

    -40


    85

    ℃

    Light length

    L


    1



    M

    Fiber numerical aperture

    NA



    0.37



    Fiber type

    Step Index 200um SiO2 core / 230um HPC / 500um Tefzel

    Provide test data:

    Optical power @ 2000mA; Pw = 1 us; DC = .01%

    l@ 2000mA; Pw = 1 us; DC = .01%


    Optional Configurations

    --

    Downloads

    450nm 2W Pulsed Laser Diode Module.pdf
