Type

3 Stack PLDs

Pulse forward current

10 A

Pulse duration

100 ns

Duty Cycle

0.075 %

Operating temperature

- 40 to + 85 ℃

Storage temperature

- 40 to + 125 ℃

Peak luminous wavelengthMin. value

895 nm

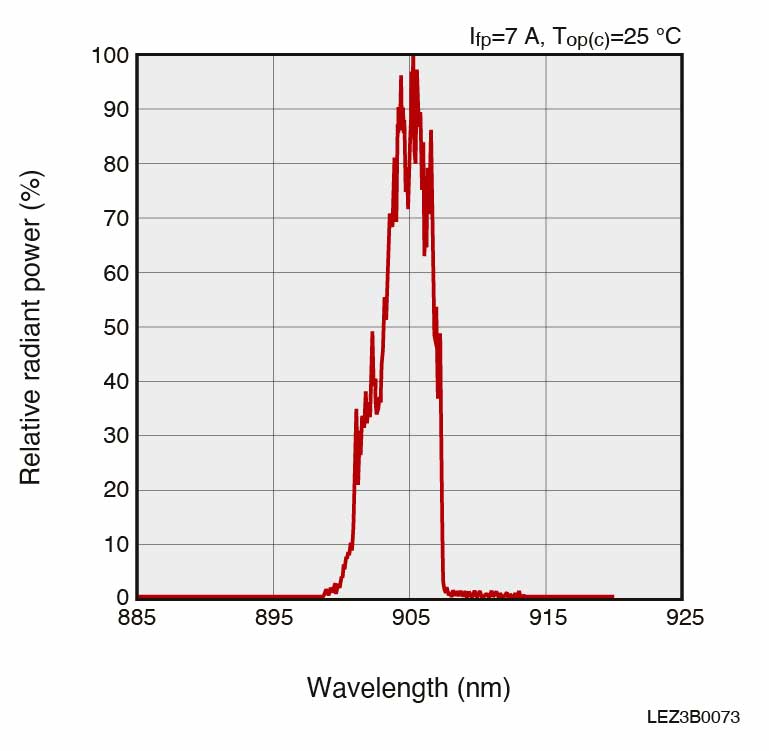

Peak emission wavelength typical

905 nm

Peak luminescence wavelength Max. value

915 nm

Light pulses output typical values

21 W

Spectral radiation half-bandwidth typical

6 nm

Typical values for operating voltages

11 V

Rising timeMax. value

2 ns

Luminous width

70 × 10 μm

Beam Divergence Angle_Parallel Min. value

7 °

Beam divergence angle_parallel typical value

11 °

Beam divergence angle_parallel Max. value

15 °

Beam Divergence Angle_Vertical Min. value

18 °

Beam divergence angle_vertical typical value

23 °

Beam Divergence Angle_Vertical Max. value

28 °

Typical value of laser pumping threshold current

0.4 A

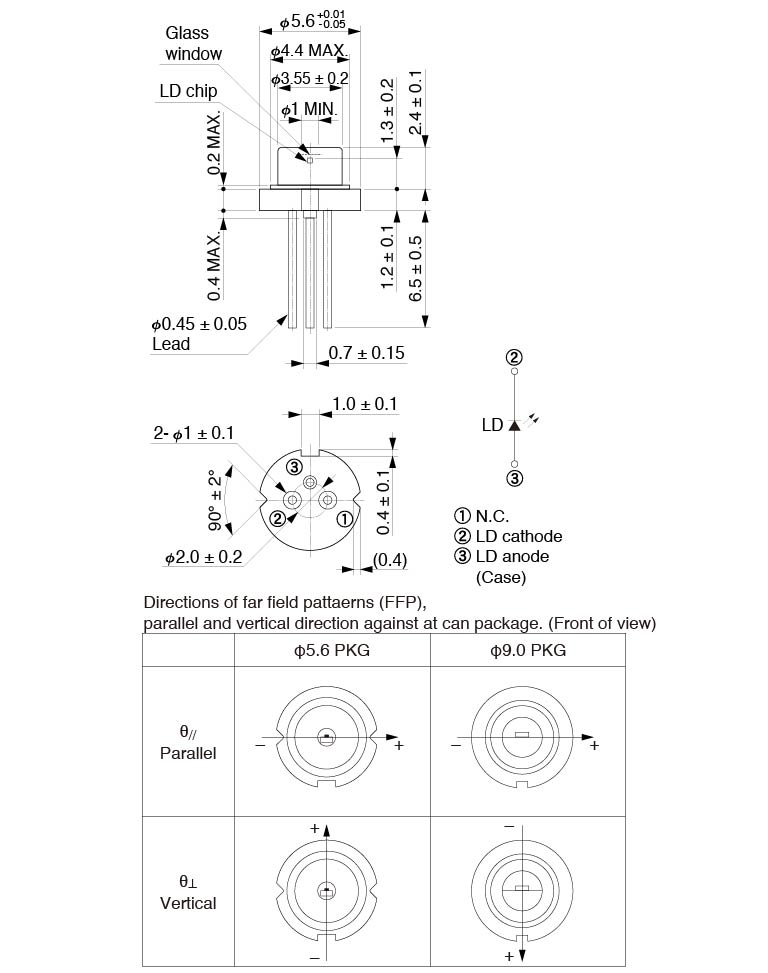

Encapsulation

dia. 5.6CD

MP-PLD-NS-100-905-70W

Pulsed laser diodes

3 Stack PLDs

25 A

905 nm

70 W

230 × 10 μm

Ceramic

MP-PLD-NS-100-870-21W

Pulsed laser diodes

3 Stack PLDs

10 A

870 nm

21 W

70 × 10 μm

dia. 5.6CD

MP-PLD-NS-100-870-20W

Pulsed laser diodes

Single Emitter PLDs

25 A

870 nm

20 W

230 × 1 μm

dia. 9.0CD

MP-PLD-NS-100-905-21W

Pulsed laser diodes

3 Stack PLDs

10 A

905 nm

21 W

70 × 10 μm

dia. 5.6CD

MP-PLD-NS-100-905-75W

Pulsed laser diodes

3 Stack PLDs

30 A

905 nm

75 W

230 × 10 μm

dia. 5.6CD

MP-PLD-NS-100-905-100W

Pulsed laser diodes

3 Stack PLDs

40 A

905 nm

100 W

360 × 10 μm

dia. 5.6CD
