Home/ Products/ Semiconductor Diodes/ Pulse Type Laser Diode/ PLD laser diode/ 870/905nm PLD Diode/ 905nm 100W 100ns Pulsed Laser Diode

    • 905nm 100W 100ns Pulsed Laser Diode

    This 4-channel array surface-mount pulsed laser diode (PLD) is an ideal choice for high-reliability LiDAR applications. The laser diode is mounted in a highly reliable hollow ceramic package, which facilitates short-pulse operation and high peak power output. In the 3-stack structure, the anodes are independent electrodes, and the cathode is a common electrode, allowing both simultaneous and individual operation of the PLDs.

    Product features：High peak power；High-speed response；High repetition frequency；Compact TO package；Low drive voltage

    Part Number：MP-PLD-NS-100-905-100W

    Application area：Laser ranging | Fiber-optic sensing | Medical aesthetics | Industrial marking | Quantum communication

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Working wavelength Output power

    905nm 100W

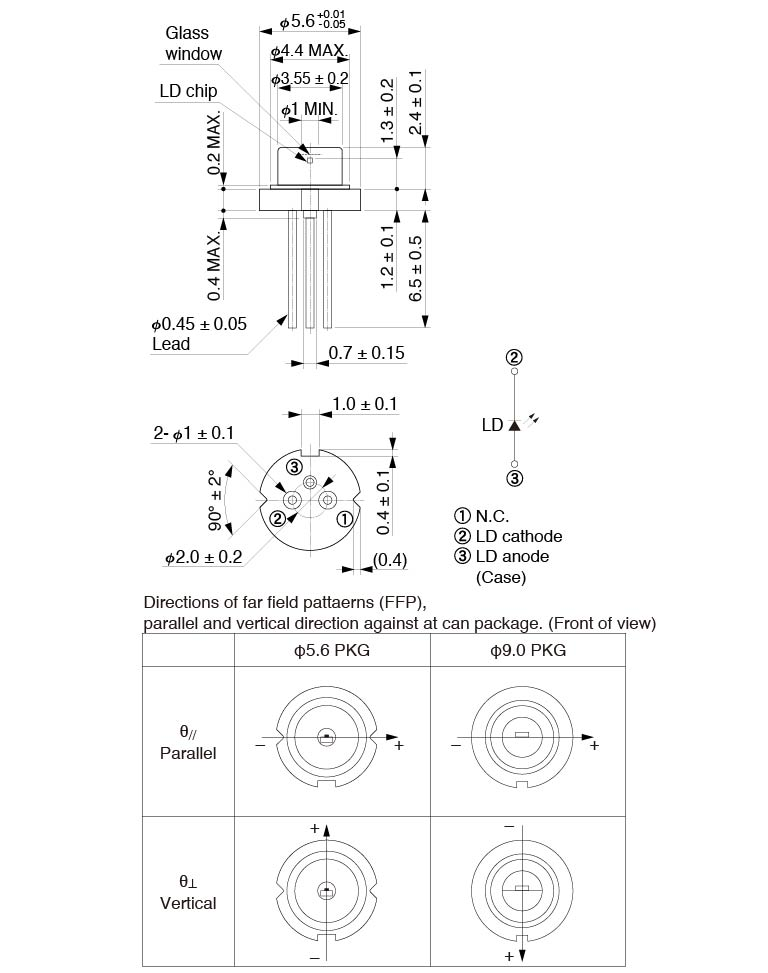

  • Dimension Drawing
    • General Parameters

    Technical parameters

    Model

    		Value

    Type

    3 Stack PLDs

    Pulse forward current

    40 A

    Pulse duration

    100 ns

    Duty Cycle

    0.1 %

    Operating temperature

    - 40 to + 85 ℃

    Storage temperature

    - 40 to + 100 ℃

    Peak luminous wavelengthMin. value

    895 nm

    Peak emission wavelength typical

    905 nm

    Peak luminescence wavelength Max. value

    915 nm

    Light pulses output typical values

    100 W

    Spectral radiation half-bandwidth typical

    6 nm

    Typical values for operating voltages

    12 V

    Rising timeMax. value

    2 ns

    Luminous width

    360 × 10 μm

    Beam Divergence Angle_Parallel Min. value

    4 °

    Beam divergence angle_parallel typical value

    8 °

    Beam divergence angle_parallel Max. value

    12 °

    Beam Divergence Angle_Vertical Min. value

    19 °

    Beam divergence angle_vertical typical value

    24 °

    Beam Divergence Angle_Vertical Max. value

    29 °

    Typical value of laser pumping threshold current

    0.8 A

    Encapsulation

    dia. 5.6CD



    Product characteristics:

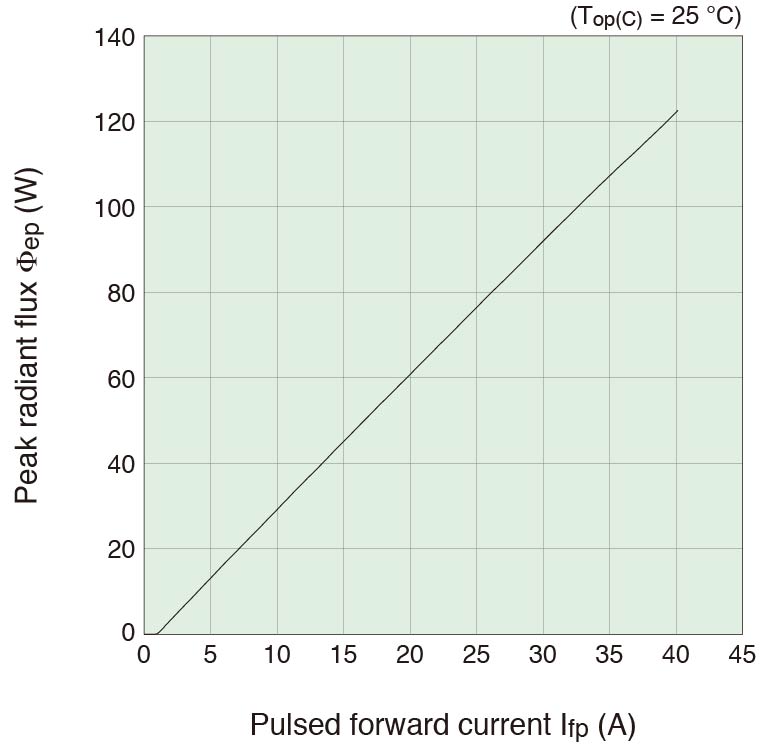

    Radiated output power and operating current (typical)

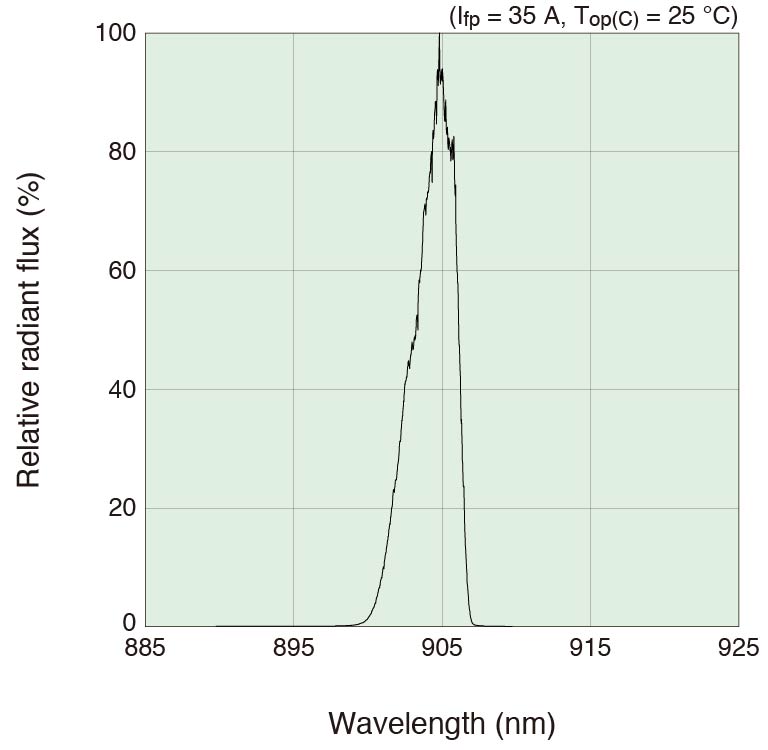

    Typical emission spectrum








    General parameters

    Model

    Name

    Type

    Pulse forward current

    Peak emission wavelength typical

    Light pulses output typical values

    Luminous width

    Encapsulation

    MP-PLD-NS-100-905-70W

    Pulsed laser diodes

    3 Stack PLDs

    25 A

    905 nm

    70 W

    230 × 10 μm

    Ceramic

    MP-PLD-NS-100-870-21W

    Pulsed laser diodes

    3 Stack PLDs

    10 A

    870 nm

    21 W

    70 × 10 μm

    dia. 5.6CD

    MP-PLD-NS-100-870-20W

    Pulsed laser diodes

    Single Emitter PLDs

    25 A

    870 nm

    20 W

    230 × 1 μm

    dia. 9.0CD

    MP-PLD-NS-100-905-21W

    Pulsed laser diodes

    3 Stack PLDs

    10 A

    905 nm

    21 W

    70 × 10 μm

    dia. 5.6CD

    MP-PLD-NS-100-905-75W

    Pulsed laser diodes

    3 Stack PLDs

    30 A

    905 nm

    75 W

    230 × 10 μm

    dia. 5.6CD

    MP-PLD-NS-100-905-100W

    Pulsed laser diodes

    3 Stack PLDs

    40 A

    905 nm

    100 W

    360 × 10 μm

    dia. 5.6CD


    Optional Configurations

    --

    Downloads

    905nm 100W 100ns Pulsed Laser Diode.pdf
