    • 870nm 20W 100ns Pulsed Laser Diode

    These laser diodes feature high peak power under pulsed operation. Different variants offer varying peak output powers and emission widths.

    Product features：High-power single emitter；Narrow pulse width；Wide wavelength selection；TO package compatibility；Low drive voltage

    Part Number：MP-PLD-NS-100-870-20W

    Application area：Laser ranging & LiDAR | Fiber-optic sensing | Medical applications | Industrial marking & engraving | Scientific & optical experiments

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Working wavelength Output power

    870nm 20W

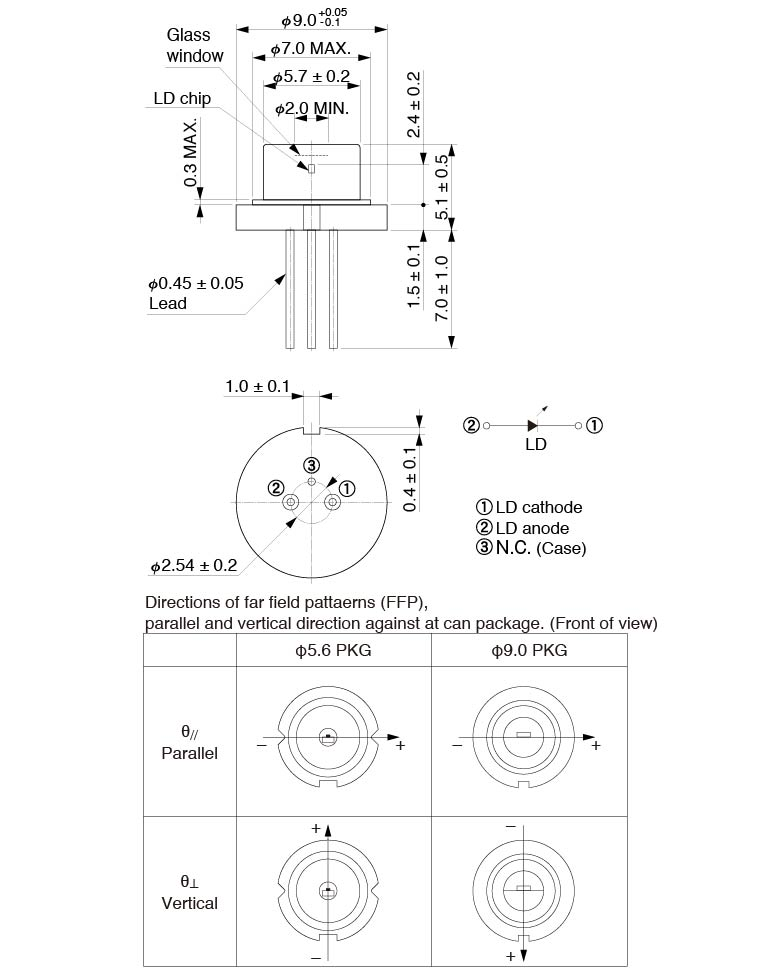

  • Dimension Drawing
    • General Parameters

    Technical parameters

    Model

    		Value

    Type

    Single Emitter PLDs

    Pulse forward current

    25 A

    Pulse duration

    100 ns

    Duty Cycle

    0.075 %

    Operating temperature

    - 40 to + 85 ℃

    Storage temperature

    - 40 to + 100 ℃

    Peak luminous wavelengthMin. value

    860 nm

    Peak emission wavelength typical

    870 nm

    Peak luminescence wavelength Max. value

    880 nm

    Light pulses output typical values

    20 W

    Spectral radiation half-bandwidth typical

    4 nm

    Typical values for operating voltages

    7 V

    Rising timeMax. value

    2 ns

    Luminous width

    230 × 1 μm

    Beam Divergence Angle_Parallel Min. value

    7 °

    Beam divergence angle_parallel typical value

    10 °

    Beam divergence angle_parallel Max. value

    13 °

    Beam Divergence Angle_Vertical Min. value

    25 °

    Beam divergence angle_vertical typical value

    30 °

    Beam Divergence Angle_Vertical Max. value

    35 °

    Typical value of laser pumping threshold current

    0.8 A

    Encapsulation

    dia. 9.0CD



    Product characteristics:

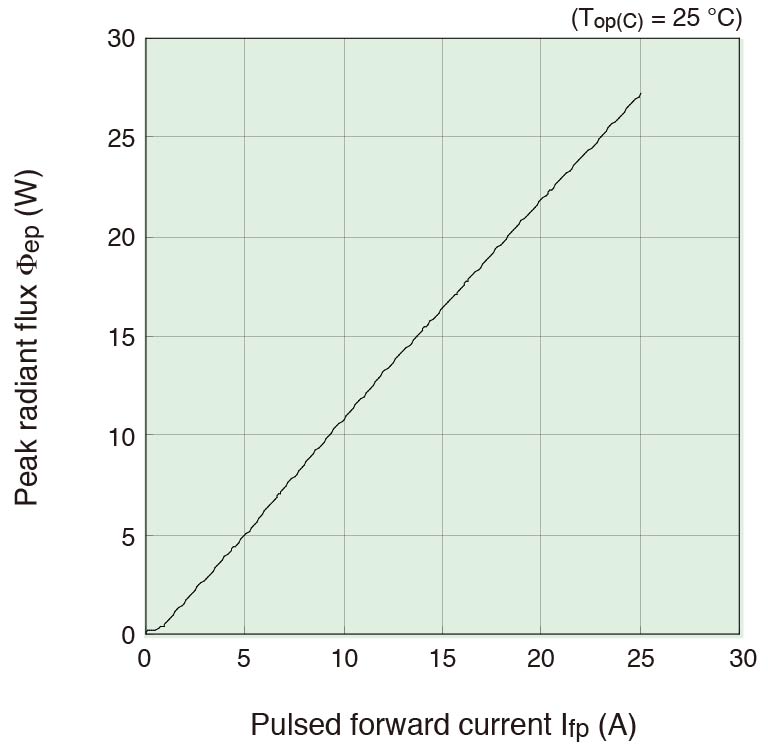

    Radiated output power and operating current (typical)

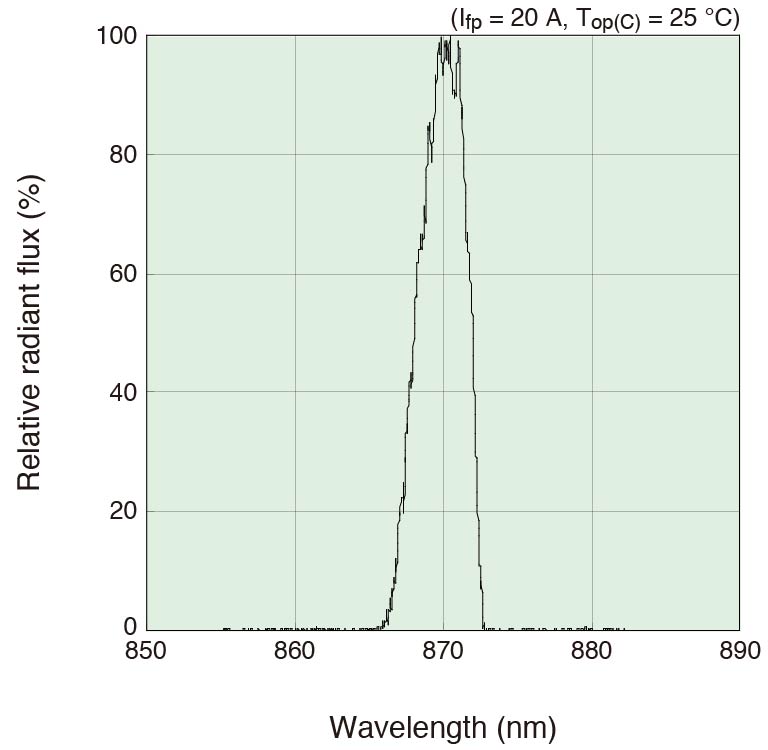

    Typical emission spectrum








    General parameters

    Model

    Name

    Type

    Pulse forward current

    Peak emission wavelength typical

    Light pulses output typical values

    Luminous width

    Encapsulation

    MP-PLD-NS-100-905-70W

    Pulsed laser diodes

    3 Stack PLDs

    25 A

    905 nm

    70 W

    230 × 10 μm

    Ceramic

    MP-PLD-NS-100-870-21W

    Pulsed laser diodes

    3 Stack PLDs

    10 A

    870 nm

    21 W

    70 × 10 μm

    dia. 5.6CD

    MP-PLD-NS-100-870-20W

    Pulsed laser diodes

    Single Emitter PLDs

    25 A

    870 nm

    20 W

    230 × 1 μm

    dia. 9.0CD

    MP-PLD-NS-100-905-21W

    Pulsed laser diodes

    3 Stack PLDs

    10 A

    905 nm

    21 W

    70 × 10 μm

    dia. 5.6CD

    MP-PLD-NS-100-905-75W

    Pulsed laser diodes

    3 Stack PLDs

    30 A

    905 nm

    75 W

    230 × 10 μm

    dia. 5.6CD

    MP-PLD-NS-100-905-100W

    Pulsed laser diodes

    3 Stack PLDs

    40 A

    905 nm

    100 W

    360 × 10 μm

    dia. 5.6CD
