    • 905nm 75W 30ns FC Pulsed Laser

    This 905nm pulsed laser is designed for triggering light-triggered thyristors (LTTs), light-triggered integrated power circuits (IGBTs), Licht-zündbare thyristors (LZTs), or integrated circuits.

    Product features：High-power pulsed output；Low insertion loss；High repetition frequency；Compact industrial design；Intelligent temperature control system

    Part Number：MP-PLD-NS-30-905-75W-FC

    Application area：Precision microfabrication | Laser marking | Semiconductor manufacturing | Medical equipment | Scientific research experiments

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center wavelength Peak output power Pulse Width (FWHM)

    905 nm 75W 30ns

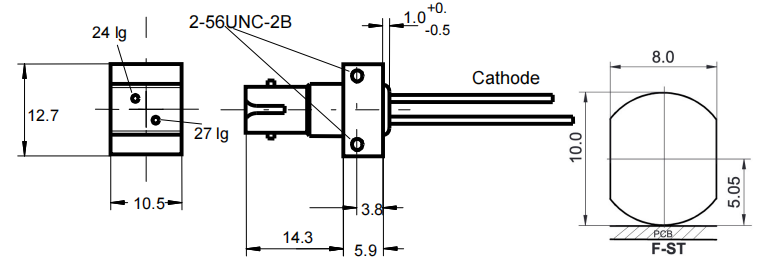

  • Dimension Drawing
    • General Parameters

    Specifications:

    Peak output power

    75W

    Forward current (Max. value).

    25A

    Pulse width (FWHM).

    30ns

    Duty Cycle

    0.10%

    Wavelength

    905±10nm

    Operating voltage

    6.0V(100ns/1kHz)

    Threshold current

    0.3A

    Operating temperature

    -40℃-+85℃

    connectors

    ST, FC optional

    Output power (without fiber)
    (8A, 25°C, 100ns pulse width).

    >180 mW
    1m HCS/PCF 200/230Cm, NA=0.37


    Optional Configurations

    --

    Downloads

    905nm 75W 30ns FC Pulsed Laser.pdf
