    • 1310nm 15mW PM SLD Laser Diode

    The 1310 nm SLD (Superluminescent Diode) module, serving as an incoherent light source for various optical measurements. This laser emits incoherent light with a broad spectrum and high output power from a PMF (Polarization-Maintaining Fiber).

    Product features：High-power SLD output; Polarization-maintaining fiber coupling; Broad spectral characteristics; High stability; Compact industrial design

    Part Number：MP-SLD-1310-15-A81-14BF-PP

    Application area：Optical Coherence Tomography | Fiber-optic sensing | Device testing | Biological detection | Fiber-optic gyroscopes

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    1310 nm 15mW

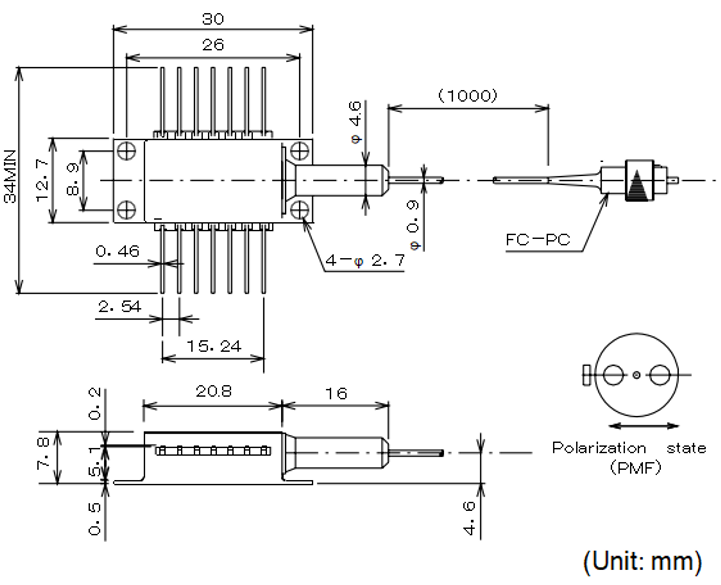

  • Dimension Drawing
    • General Parameters

    Technical parameters

    Photoelectric characteristics (TSLD=25deg. C, TC=25deg. C)

    Parameters

    symbol

    Test conditions

    Min.

    typical

    Max.

    unit

    Forward voltage

    VF

    Pf=15 mW



    2.5

    V

    Forward current (BOL).

    IF

    Pf=15 mW



    400

    mA

    Center wavelength

    λC

    Pf=15 mW, -3dB

    1290

    1310

    1330

    nm

    Spectral half-width

    Δλ

    Pf=15 mW, -3dB

    50

    55


    nm

    Spectral ripples

    M

    Pf=15 mW, res=0.1nm



    0.6

    dB

    PD monitors the current

    Im

    Pf=15 mW, VRD=5V

    100


    2000

    μA

    PD dark current

    Id

    VRD=5 V



    0.1

    μA

    Tracking error

    ΔPf

    Im=const., TC=-20 to 75 deg. C



    0.5

    dB

    TEC voltage

    Vc

    IF= EOL*1, TC=75 deg. C



    3.5

    V

    TEC current

    Ic

    IF= EOL, TC=75 deg. C



    1.2

    A

    Thermistors

    Rth

    TSLD=25 deg. C, B=3900±100 K

    9.5

    10

    10.5

    kΩ

    Optical isolation

    Ro

    λ=1310 nm, TSLD=25 deg. C


    30


    dB



    Pin definition




    No.

    FUNCTION

    No.

    FUNCTION

    1

    Cooler anode

    8

    NC

    2

    Thermistor

    9

    NC

    3

    PD anode

    10

    SLD anode

    4

    PD cathode

    11

    SLD cathode

    5

    Thermistor

    12

    NC

    6

    NC

    13

    Case

    7

    NC

    14

    Cooler cathode
