Model Parameters

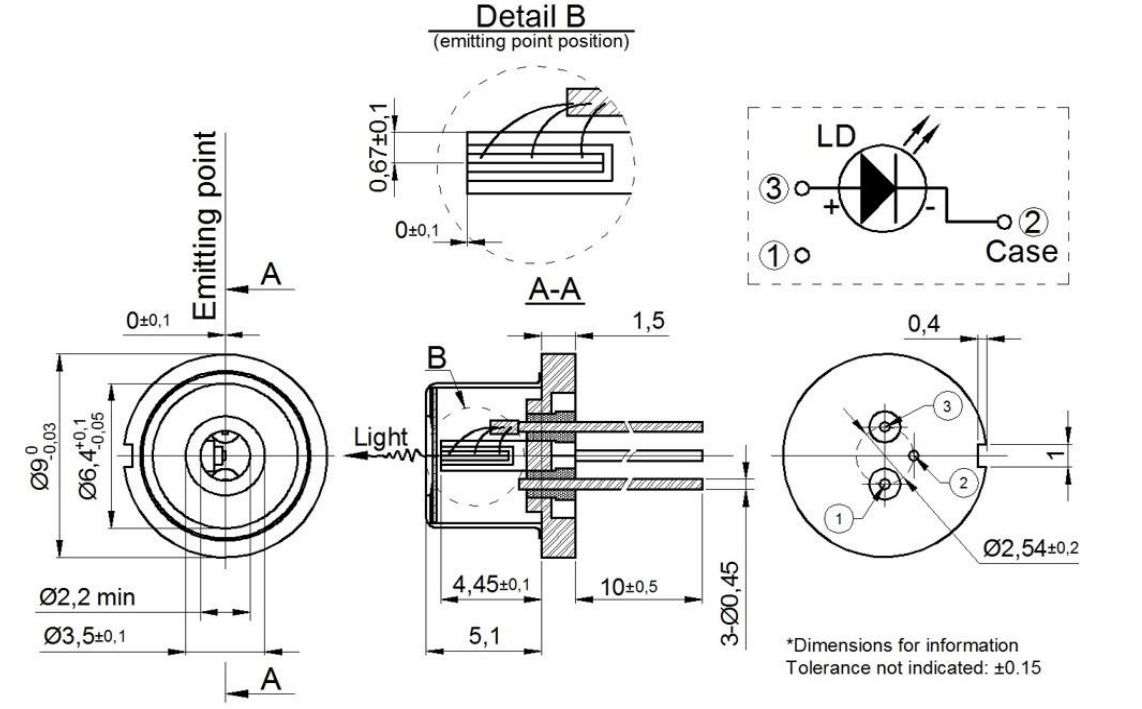

Product Characteristics

Test condition:500ns pulse width, 1% duty cycle

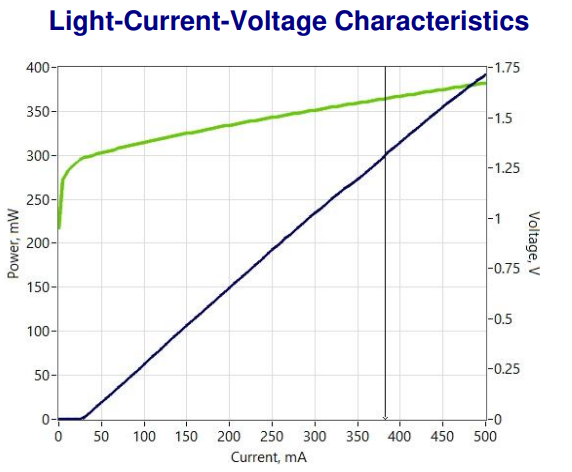

L-I-V characteristic graph

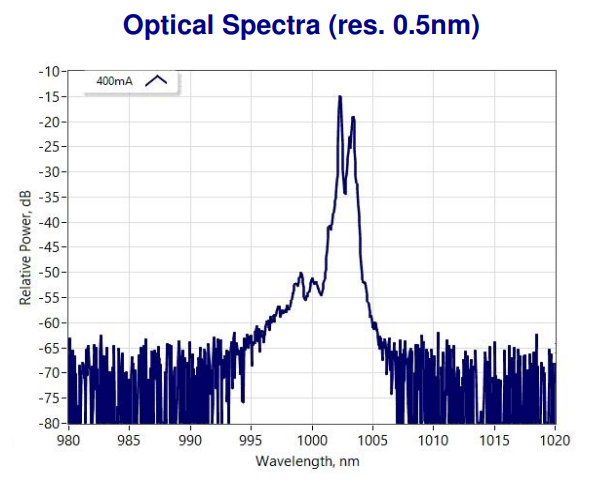

Optical Spectrum (Resolution 0.5nm)

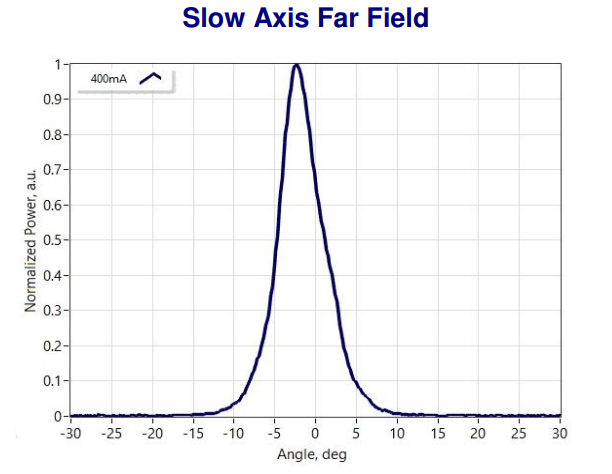

Slow Axis Far field

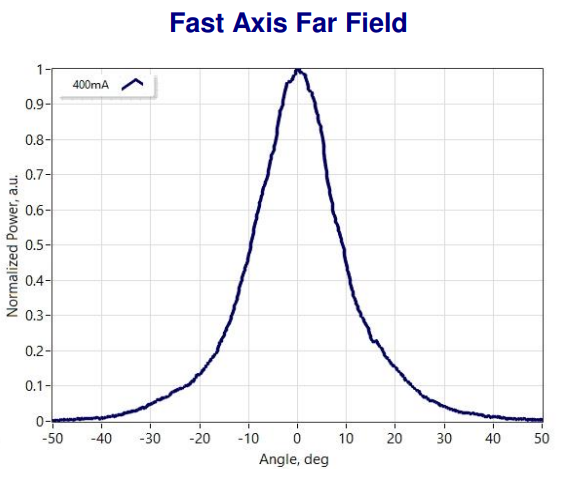

Fast Axis Far Field

Notes

The laser emitted by this device is invisible and harmful to human eyes. When the device is operating, avoid direct viewing of the fiber output or looking along the optical axis of the collimated beam. Appropriate laser safety eyewear must be worn during operation.

Absolute maximum ratings can only be applied to the device for short periods of time. Prolonged exposure to maximum ratings or exposure to one or more ratings above the maximum may cause device damage or affect device reliability.

Operating the product outside of the maximum ratings may result in device failure or safety hazards. The power supply used for the device must ensure that the absolute maximum peak optical power cannot be exceeded. The device on the heatsink requires a proper heatsink, and it must be ensured that the heatsink has adequate heat dissipation and thermal conductivity. It is recommended to use indium metal foil (or similar material) as a thermal interface between the C-mount base and the heatsink surface.

This device is an open-heatsink diode laser; it can only be operated in a cleanroom environment or within a dust-proof enclosure. Operating temperature and relative humidity must be controlled to avoid water condensation on the laser facet. Any contamination or contact with the laser facet must be avoided.

ESD Protection - Electrostatic discharge is a primary cause of unexpected product failure. Take extreme precautions to prevent ESD. When handling the product, use wrist straps, grounded work surfaces, and strict anti-static techniques.

--
