980nm 1W CWLD Continuous Wave Laser Diode

980nm 1W CWLD Continuous Wave Laser Diode

This is a laser diode designed to be driven in continuous wave (CW) mode, with output power ranging from a few milliwatts to several watts.

Product features：Continuous wave output；High electro-optical efficiency；Wide wavelength range；Narrow spectral linewidth；Long lifespan High reliability

Part Number：MP-FP-980-1000-dia.9.0CD

Application area：Optical fiber communication | Laser processing | Medical equipment | Sensing and measurement | Scientific research and experiments

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Output Power Package

980 nm 1W dia.9.0CD

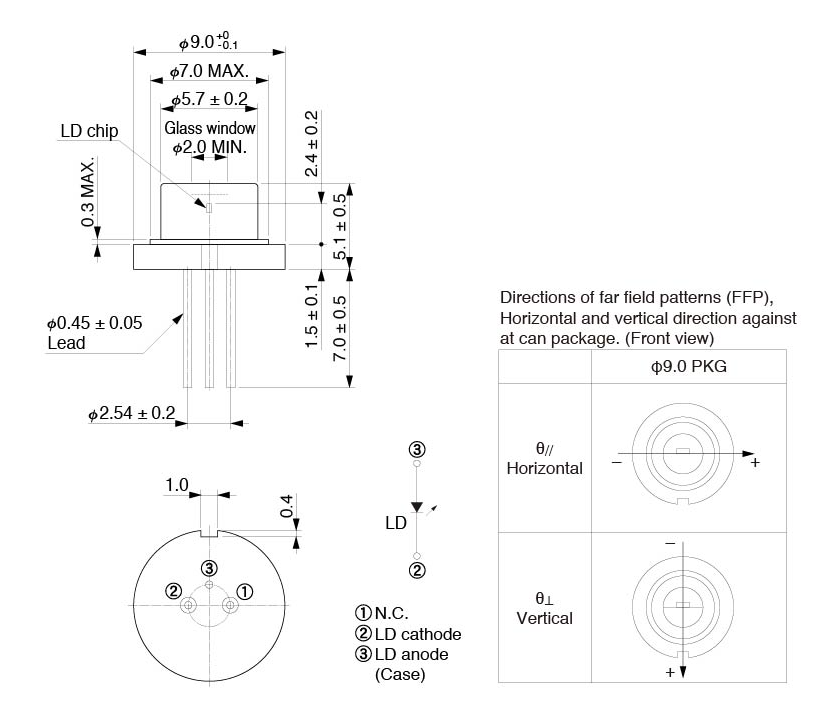

Dimension Drawing

General Parameters

Specifications

Parameter	Value
Type	Lateral Multimode LDs (broad stripe)
Operating Temperature	0 to +30 °C
Storage Temperature	-30 to +80 °C
Peak Emission Wavelength - Min	970 nm
Peak Emission Wavelength - Typ	980 nm
Peak Emission Wavelength - Max	990 nm
Output Power - Typ	1 W
Operating Current - Typ	1.2 A
Spectral Radiation FWHM Bandwidth - Typ	2 nm
Operating Voltage - Typ	2 V
Emission Width	100 × 1 μm
Beam Divergence - Parallel - Typ	8°
Beam Divergence - Perpendicular - Typ	32°
Laser Pump Threshold Current - Typ	0.25 A
Package	dia. 9.0CD

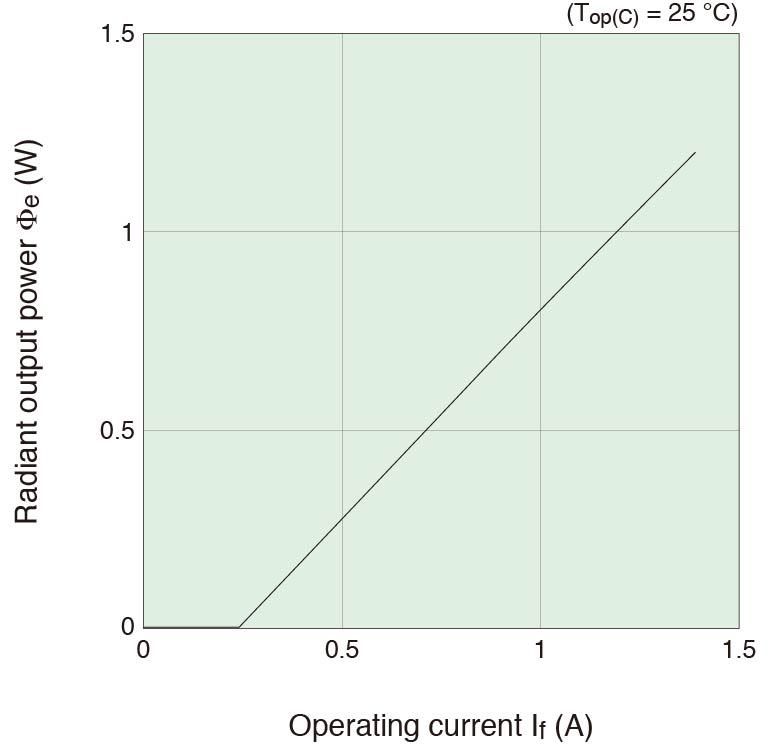

Radiation Output Power vs. Operating Current (Typical Value)

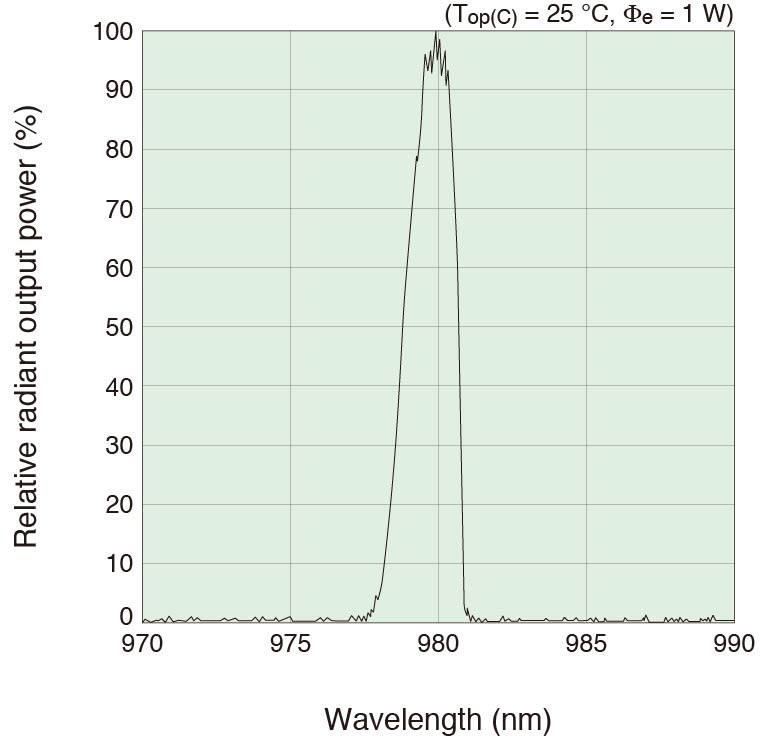

Typical Emission Spectrum


Optional Configurations

Downloads

980nm 1W CWLD Continuous Wave Laser Diode.pdf
