    • 1480nm 500mW PM FP laser diode with FBG

    The 1480nm laser is designed for optical amplifier systems, such as fiber Raman amplifiers used in optical transmission systems, and can also be used in DWDM systems. The laser diode chip is packaged in an industry-standard 14-pin butterfly package, with built-in TEC, thermistor, and PIN photodiode. A dual-lens system efficiently couples the circular beam from the laser chip into the optical fiber, achieving an output power of up to 500mW.

    Product features：High output power; FBG frequency stabilization technology; Multi-longitudinal mode characteristics; High-reliability package; Low-noise design

    Part Number：MP-FP-1480-500-14BF-PA-FBG

    Application area：Fiber laser pumping | Industrial processing | Medical equipment | Scientific research experiments | Optical fiber sensing

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    1480nm 500mW

  • Dimension Drawing
    • General Parameters

    Technical Parameters

    Parameter

    Symbol

    Min.

    Typ.

    Max.

    Unit

    Center Wavelength

    λc

    1479

    1480

    1481

    nm

    Output Power

    Pf

    -

    500

    -

    mW

    Forward Current @ Pf =500mW

    If

    -

    -

    1800

    mA

    Forward Voltage @ Pf=500mW

    Vf

    -

    -

    2.5

    V

    Monitor Current @ Pf=500mW

    Im

    0.1

    -

    2

    mA

    Spectral Width @ Pf=500mW

    Δλ

    -

    0.8

    3

    nm

    Threshold Current

    Ith

    -

    -

    120

    mA

    Thermistor Resistance

    Rth

    9.5

    10

    10.5

    kΩ

    TEC Current

    Ic

    -

    -

    3.4

    A

    TEC Voltage

    Vc

    -

    -

    4.1

    V

    Total Power Consumption

    Wtotal

    -

    -

    17

    W

    Polarization Extinction Ratio (PER)

    PER

    16

    -

    -

    dB



    Absolute Maximum Ratings

    Parameter

    Symbol

    Min.

    Max.

    Unit

    Storage Temperature

    Tstg

    -40

    85

    °C

    Operating Case Temperature

    Tc

    -20

    70

    °C

    LD Forward Current

    If

    -

    2100

    mA

    LD Reverse Voltage

    Vr

    -

    2

    V

    TEC Current

    Ic

    -

    4.5

    A

    TEC Voltage

    Vc

    -

    4.5

    V



    Product Characteristics

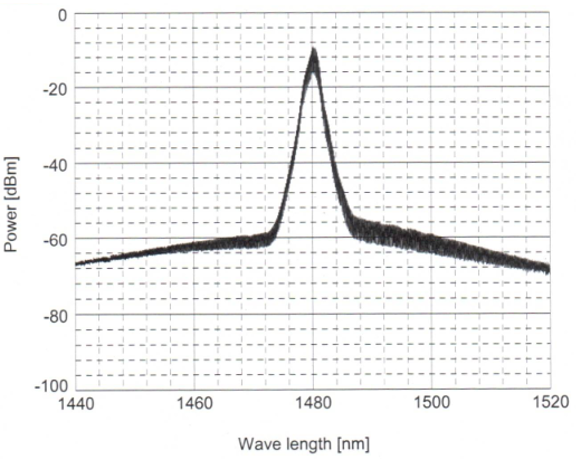

    Optical Spectrum

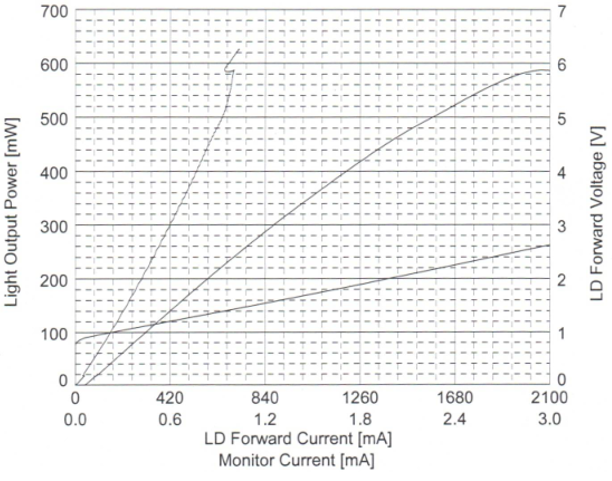

    Power Curve

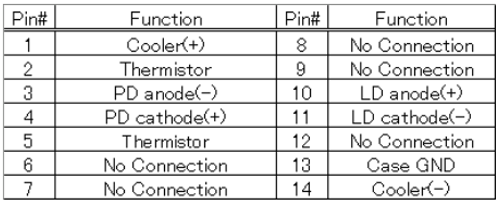

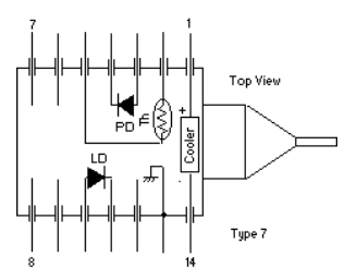

    Pin Definition




    Optional Configurations

    --

    Downloads

    1480nm 500mW PM FP laser diode with FBG.pdf
