    • 1360nm 500mW PM FP laser diode with FBG

    The 1360nm 500mW high-power FP laser is purpose-built for high-order Raman amplifiers. It adopts a 14-pin butterfly package, and is integrated with a photodiode (PD) and a thermoelectric cooler (TEC).

    Product features：High output power: 500mW；Operating wavelength: 1360nm；14-pin butterfly package；Built-in PD and TEC

    Part Number：MP-FP-1360-A-A81-PA-FBG

    Application area：High-order Raman amplifiers

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Center Wavelength Output Power

    1358.5nm-1361.5nm 500mW

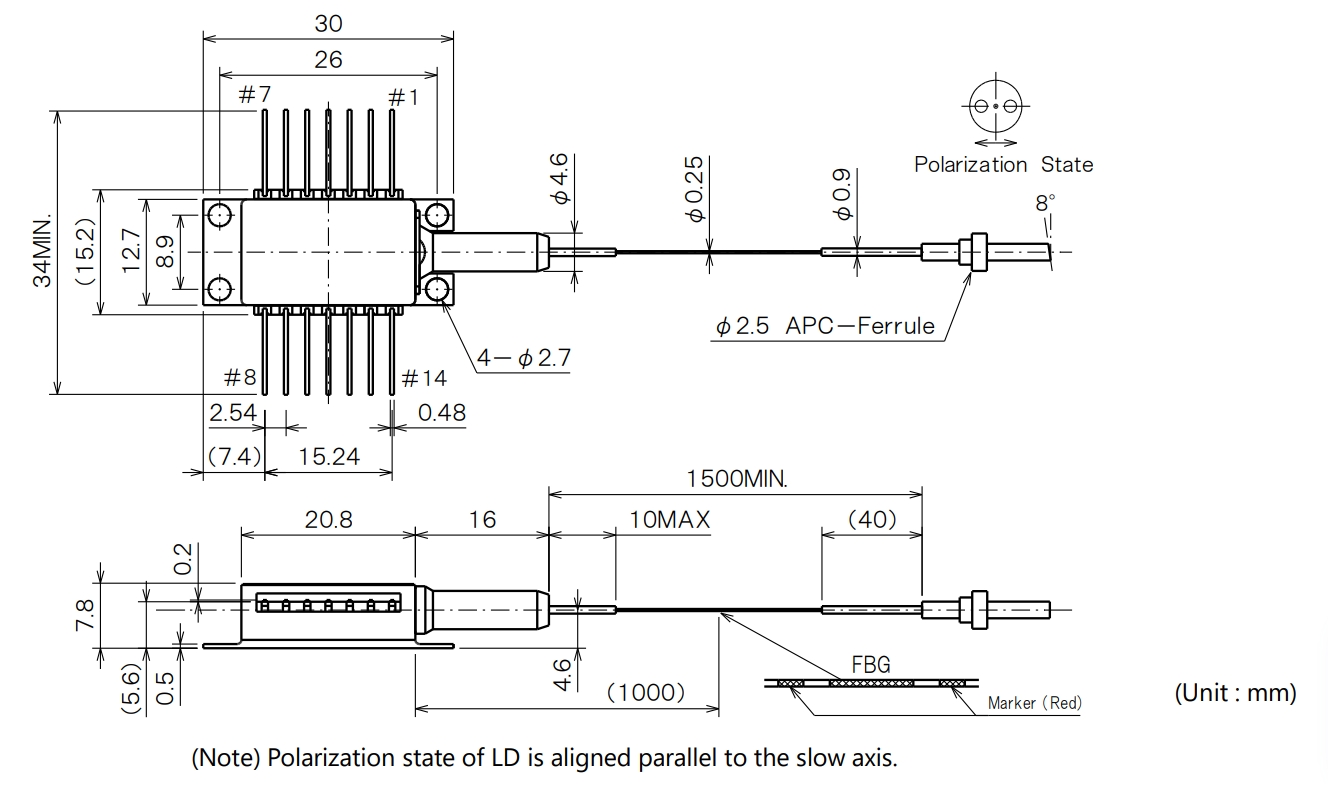

  • Dimension Drawing
    • General Parameters

    Detailed Specifications：

    General Parameters (TLD=25℃, TC=25℃)

    Item

    Symbol

    Test Condition

    Min

    Typ

    Max

    Unit

    Center Wavelength

    λC

    Pf=500mW,RMS(-20dB)

    1358.5

    1360.0

    1361.5

    nm

    Spectral Width

    Δλ

    Pf=500mW,-10dB

    -

    -

    3.5

    nm

    Threshold Current

    Ith

    -

    -

    -

    180

    mA

    Forward Current

    IF

    Pf=500mW,BOL

    -

    -

    1800

    mA

    Forward Voltage

    VF

    Pf=500mW,BOL

    -

    -

    2.2

    V

    Monitor Current

    Im

    Pf=500mW,VRD=5V

    100

    -

    2000

    uA

    PD Dark Current

    Id

    VRD=5V

    -

    -

    0.1

    uA

    Tracking Error

    ΔPf

    Im=const,Tc=-20~+75℃

    -0.5

    -

    0.5

    dB

    Cooler Voltage

    VC

    IF=EOL*1,TC=70℃

    -

    3.3

    4.0

    V

    Cooler Current

    IC

    IF=EOL*1,TC=70℃

    -

    2.8

    3.5

    A

    Thermistor

    Rth

    TLD=25℃,B=3900±100K

    9.5

    10.0

    10.5

    kΩ

    Extinction Ratio

    Xp

    Pf=500mW

    17

    -

    -

    dB

    *1 EOL=BOL×1.2


    Absolute Maximum Ratings

    Item

    Symbol

    Value

    Unit

    LD Forward Current

    IF

    2200

    mA

    LD Reverse Voltage

    VR

    2

    V

    PD Forward Current

    IFD

    10

    mA

    PD Reverse Voltage

    VRD

    20

    V

    Case Operating Temperature

    TC

    -20~+70

    ℃

    Storage Temperature

    Tstg

    -40~+85

    ℃

    Cooler Current

    IC

    5.8

    A

    *Exceeding absolute maximum ratings may cause device failure.


    Pin Definitions

    No.

    FUNCTION

    No

    FUNCTION


    1

    Cooler anode

    8

    NC

    2

    Thermistor

    9

    NC

    3

    PD anode

    10

    LD anode

    4

    PD cathode

    11

    LD cathode

    5

    Thermistor

    12

    NC

    6

    NC

    13

    Case

    7

    NC

    14

    Cooler cathode


    Optional Configurations

    --

    Downloads

    1360nm 500mW PM FP laser diode with FBG.pdf
