    • 800-2600nm infrared extended InGaAs amplified photodetector, response time constant 25ns

    Idealphotonics' InGaAs Amplified Photodetector with infrared extension covers a sensing range from 800nm to 2600nm. It features 8 adjustable gain levels for quantifiable photoelectric conversion and offers a wide dynamic range. This detector is ideal for various photoelectric development scenarios, providing excellent performance at a high cost-performance ratio. It is commonly used for near-infrared and mid-infrared light measurements.

    Product features：Sensing range of 800nm to 2600nm, often used in near- and mid-infrared light measurements、 Amplified detector with 8 adjustable gain levels for quantifiable photoelectric conversion、 Wide dynamic range, suitable for various infrared photoelectric development scenarios、 Excellent performance and high cost-effectiveness、 Full technical support、 Customization available

    Part Number：MP-CPD-M-I-A-A-8M10

    Application area：Near- and mid-infrared light measurement

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Range Photosensitive Size Response Time Constant

    800-2600nm 1mm×1mm 25ns

  • Dimension Drawing
    • General Parameters

    Main Parameters



    Parameters

    Value

    Wavelength Range

    800-2600nm

    800-2200nm

    Response Time Constant

    25ns

    35ns

    200ns

    Gain Range

    Hi-Z Load: 1.51kV/A～4.75MV/A; 50Ω Load: 0.75kV/A～2.38MV/A

    Signal Amplitude

    Hi-Z Load: 0～10V; 50Ω Load: 0～5V

    Gain Adjustment Mode

    Rotatable switch adjustment: 0～70dB, 10dB per step, 8 steps. Bandwidth is inversely proportional to gain.

    NEP

    1.0 × 10-12W/Hz1/2

    1.0 × 10-12W/Hz1/2

    2.5 × 10-14W/Hz1/2

    Active Area

    1mm×1mm

    1mm×1mm

    2mm×2mm

    Sensitive Surface Depth

    0.13"     (3.3  mm)

    Detector Net Weight

    0.10kg

    Operating Temperature

    10-40℃

    Storage Temperature

    -20-70℃

    Appearance Dimensions

    2.79" X 2.07" X 0.89"  (70.9  mm X  52.5  mm X  22.5  mm)

    Power Interface

    Power Switch

    Signal Interface

    Gain Adjustment

    Mounting Interface

    Optical Interface

    LUMBERG  R SMV3  FEMA LE

    Sliding Switch

    With LED Indicator

    BNC Female Socket

    8-Step Knob Adjustment

    M4×2

    SM1× 1

    SM0.5 × 1


    Eight-Step Quantitative Adjustable Gain Parameters



    0dB

    10dB

    20dB

    30dB

    Gain (Hi-Z)

    1.51× 103V /A

    Gain (Hi-Z)

    4.75× 103V /A

    Gain (Hi-Z)

    1.5 × 104V/ A

    Gain (Hi-Z)

    4.75× 104 V/A

    Gain (50Ω)

    0.75× 103V /A

    Gain (50Ω)

    2.38× 103V /A

    Gain (50Ω)

    0.75× 104V /A

    Gain (50Ω)

    2.38× 104 V/A

    Bandwidth

    13MHz

    Bandwidth

    1.7MHz

    Bandwidth

    1.1MHz

    Bandwidth

    300kHz

    Noise(RMS)

    ≤258uV

    Noise(RMS)

    ≤250uV

    Noise(RMS)

    ≤250uV

    Noise(RMS)

    ≤250uV

    40dB

    50dB

    60dB

    70dB

    Gain (Hi-Z)

    1.51× 105V /A

    Gain (Hi-Z)

    4.75× 105V /A

    Gain (Hi-Z)

    1.5 × 106V/ A

    Gain (Hi-Z)

    4.75× 106 V/A

    Gain (50Ω)

    0.75× 105V

    Gain (50Ω)

    2.38× 105V

    Gain (50Ω)

    0.75× 106V

    Gain (50Ω)

    2.38× 106


    /A


    /A


    /A


    V/A

    Bandwidth

    90kHz

    Bandwidth

    28kHz

    Bandwidth

    9kHz

    Bandwidth

    3kHz

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤300uV

    Noise (RMS)

    ≤400uV

    Signal Offset

    ±8mV(Typ.) ， ±12mV(Max)

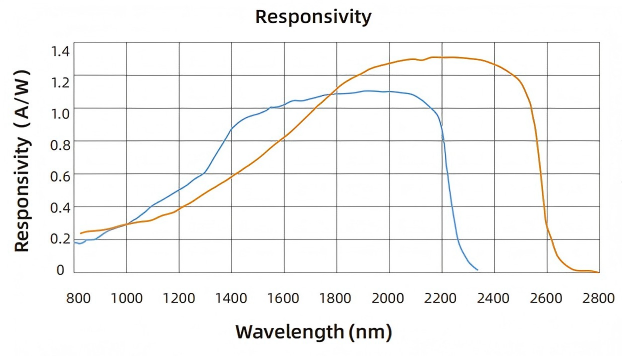

    Response Curve


    Product Configuration


    Attachment 1: Optional Configuration Table



    Infrared Extended InGaAs Amplified Photodetector

    Optional Configurations

    Product Name

    Material

    Type

    Features

    Wavelength Range Photosensitive Area

    Reserved Optional Configurations

    Photodetector

     InGaAs (Indium Gallium Arsenide)

     Amplified Type

    Adjustable Gain

    800-2600nm ，1mm × 1mm






    800-2200nm ，1mm× 1mm






    800-2200nm ，2mm× 2mm




    Optional Configurations

    --
