The polarization-dependent free-space optical isolator is a free-space isolator based on a TGG-type structure. It offers a selection of operating wavelengths from 532 nm to 1060 nm. With high isolation, low insertion loss, and high extinction ratio, it is suitable for unidirectional optical transmission and reverse light isolation in free-space optical paths. The product features a compact cylindrical housing and is available with multiple clear aperture sizes, power ratings, and outer dimension configurations, enabling selection and customization according to different optical system requirements.

Product features：Polarization‑dependent design；Free‑space optical path；High isolation；Low insertion loss；High extinction ratio

Part Number：MP-ISO-S-532-B-1.8

Application area：Laser optical path systems | Optical test systems | Reverse light isolation for lasers | Research laboratory optical setups

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Operating Wavelength Maximum Optical Power Clear Aperture

532 / 635 / 650 / 780 / 850 / 980 / 1030 / 1060 nm 0.1 / 0.3 / 1 / 5 W 1.8 / 2.5 mm

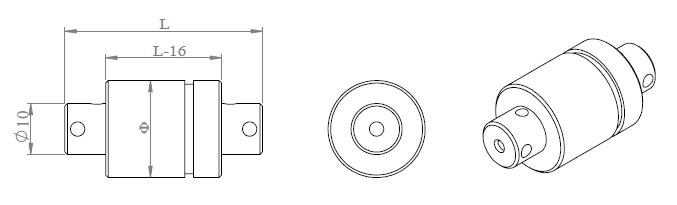

Dimension Drawing

General Parameters

Parameter	Unit	532nm	635nm	650nm	780nm	850nm	980nm	1030nm	1060nm
Typical Isolation	dB	26 dB	26 dB	26 dB	28 dB	28 dB	30 dB	30 dB	30 dB
Minimum Isolation	dB	23 dB	23 dB	23 dB	24 dB	24 dB	25 dB	25 dB	25 dB
Maximum Insertion Loss	dB	0.6 dB	0.6 dB	0.6 dB	0.6 dB	0.6 dB	0.6 dB	0.6 dB	0.6 dB
Minimum Extinction Ratio	dB	28 dB	28 dB	28 dB	28 dB	28 dB	28 dB	28 dB	28 dB
Package Dimensions	mm	Φ16×L27	Φ16×L33	Φ16×L33	Φ19×L39	Φ19×L39	Φ19×L53	Φ19×L53	Φ19×L53
Operating Temperature	℃	10～50
Storage Temperature	℃	0～60

Ordering Information

Type

Wavelength

Clear Aperture

28 dB

30 dB

PDC = Pol-Dependent with PBS Cube

532 = 532nm

635 = 635nm

650 = 650nm

780 = 780nm

850 = 850nm

980 = 980nm

1030 = 1030nm

1060 = 1060nm

X = Others

18 = 1.8mm

25 = 2.5mm

01 = 0.1W

03 = 0.3W

10 = 1.0W

50 = 5.0W

16 = 16mm

19 = 19mm

27 = 27mm

33 = 33mm

39 = 39mm

53 = 53mm

X = Others

Optional Configurations
