    • 785–1080 nm Raman Spectrometer

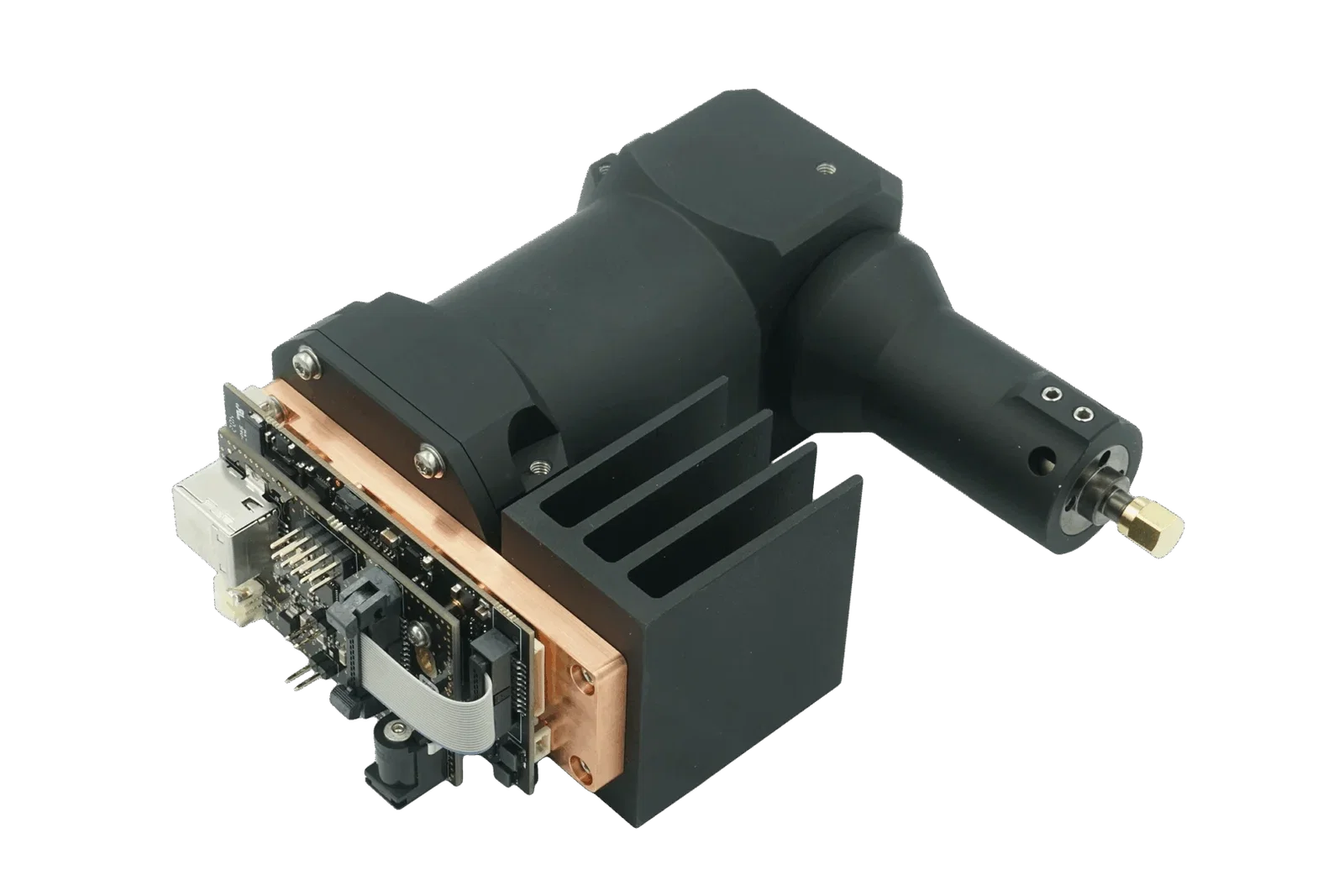

    The 785-1080 nm Raman spectrometer is a high-performance spectral detection module designed for Raman applications with 785 nm laser excitation. It features a high-dispersion transmission grating and a cooled array detector, offering high resolution, high optical throughput, and excellent temperature stability. The spectral detection range covers 785-1080 nm, corresponding to a Raman shift range of 0-3480 cm-1 under 785 nm excitation, making it suitable for materials analysis, chemical identification, pharmaceutical testing, research instrumentation, and industrial Raman inspection.

    Product features：Broad spectral range；High spectral resolution；High optical throughput design；High temperature stability

    Part Number：MP-ERS-385

    Application area：Materials analysis | Chemical identification | Pharmaceutical and raw material testing | Industrial process monitoring

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Spectral range Raman Shift Range Spectral Resolution

    785–1080 nm 0–3480 cm⁻¹ Max. 5.8 cm⁻¹

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Excitation wavelength

    785 nm

    Spectral range

    785–1080 nm

    Raman shift range

    0–3480 cm⁻¹

    Spectral resolution

    Max. 5.8 cm⁻¹

    Numerical aperture (NA)

    0.2

    Optical input

    SMA fiber optic interface

    Detector

    Cooled BT‑CCD array detector

    Detector temperature

    +5 °C

    Raman Filter

    Optional

    Communication interfaces

    USB 2.0 / SPI

    Wavelength temperature drift

    <0.02 nm/°C

    Operating temperature

    0–40 °C

    Storage temperature

    –40–70 °C

    Dimensions (W×D×H)

    125 × 139 × 60 mm

    Weight

    Approx. 0.81 kg

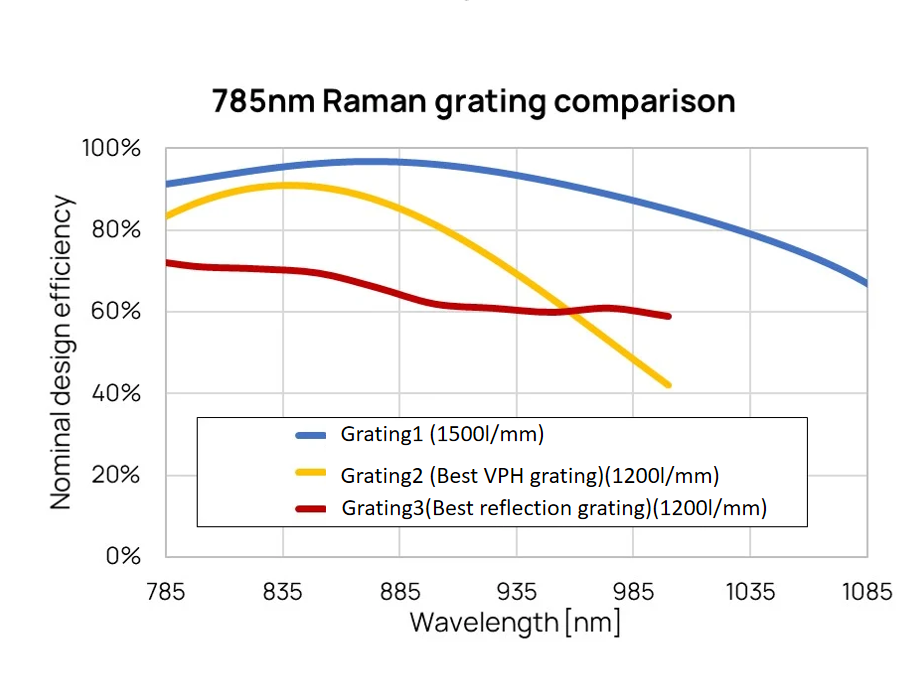

    Raman Grating Diffraction Efficiency Curve


    Optional Configurations

    --
