    • 532–732 nm Raman Spectrometer

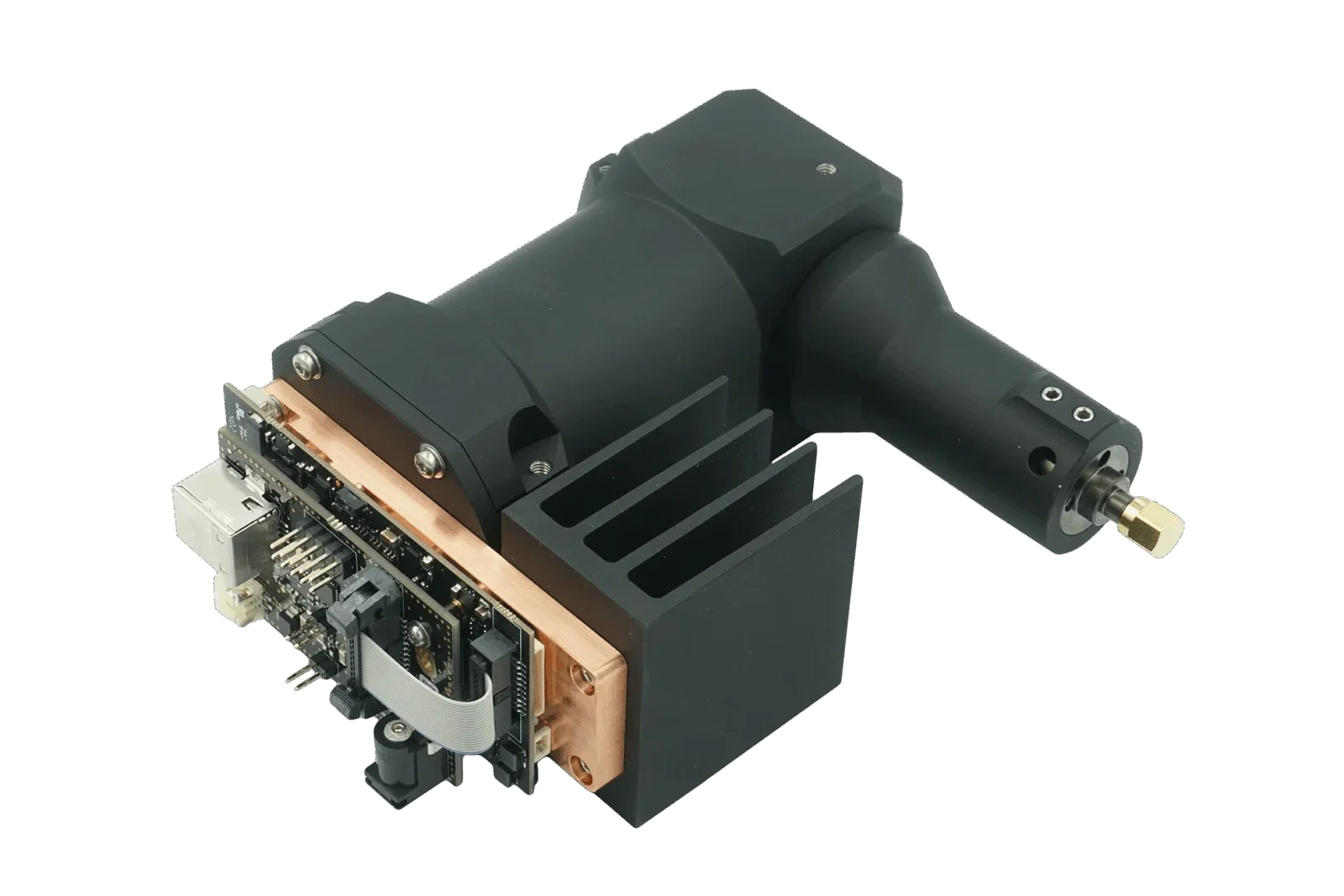

    The 532–732 nm Raman spectrometer is a high-performance spectral detection module designed for Raman applications with 532 nm laser excitation. It features a high-dispersion transmission grating and a cooled array detector, offering high resolution, high optical throughput, and excellent temperature stability. The spectral detection range covers 532–732 nm, corresponding to a Raman shift range of 0-5136 cm-1, making it suitable for materials analysis, chemical identification, pharmaceutical testing, research instrumentation, and industrial Raman inspection.

    Product features：Broad spectral range；High spectral resolution；High optical throughput design；High temperature stability

    Part Number：MP-ERT-385

    Application area：Materials analysis | Chemical identification | Mineral and crystal analysis | Industrial process monitoring

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Spectral range Raman Shift Range Spectral Resolution

    532–732 nm 0–5136 cm⁻¹ Max. 8.5 cm⁻¹

  • Dimension Drawing
    • General Parameters

    Parameter

    Specification

    Excitation wavelength

    532 nm

    Spectral range

    532–732 nm

    Raman shift range

    0–5136 cm⁻¹

    Spectral resolution

    Max. 8.5 cm⁻¹

    Numerical aperture (NA)

    0.2

    Optical input

    SMA fiber optic interface

    Detector

    Cooled array detector

    Detector temperature

    +5 °C

    Raman Filter

    Optional

    Communication interfaces

    USB 2.0 / SPI

    Wavelength temperature drift

    <0.02 nm/°C

    Operating temperature

    0–40 °C

    Storage temperature

    –40–70 °C

    Dimensions (W×D×H)

    125 × 139 × 60 mm

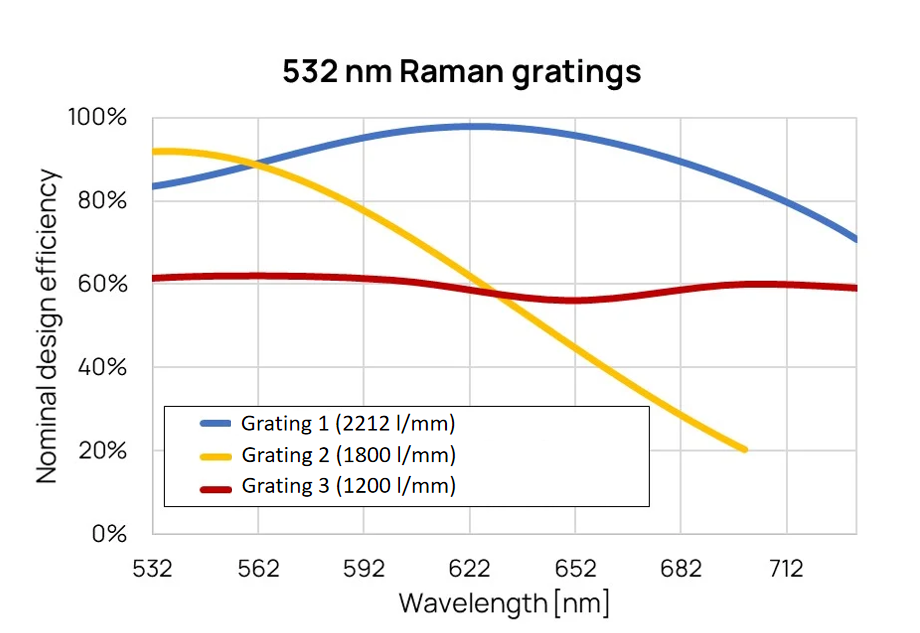

    Raman Grating Diffraction Efficiency Curve
