    • Single NV Center Quantum Diamond

    Single NV center quantum diamond is a diamond material product designed for cutting-edge research in quantum science and technology. It utilises individual nitrogen-vacancy (NV) centres in diamond as quantum systems, offering high spin coherence, high optical coherence, high optical transmittance, and high contrast. The product is available with different crystal orientations: <100>, <110>, and <111>. It is primarily intended for research in quantum computing, quantum networks, quantum simulation, and high-spatial-resolution quantum sensing. Various NV density, crystal orientation, and size specifications can be selected according to specific experimental requirements.

    Product features：High spin coherence；Selectable single‑NV‑centre density；Multiple crystal orientations available；Excellent material properties

    Part Number：MP‑SNV100F12

    Application area：Quantum computing | Quantum simulation | High-spatial-resolution quantum sensing | Nuclear magnetic resonance and single-molecule structure detection

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • NV centre density Crystal orientation

    10–10 000 per 10⁴μm² <100>, <110>, <111>

  • Dimension Drawing
    • General Parameters

    Parameter

    Value

    Colour centre type

    Single / single colour centre

    NV centre density

    10–10000 个 / 10⁴μm²

    Coherence time T2(Spin Echo detection)

    ~300 μs

    Coherence time T2* (FID detection)

    ~1 μs

    Thermal conductivity

    > 2000 W·m⁻¹·K⁻¹

    Coefficient of thermal expansion (300 K)

    1.0 ± 0.1 ppm·K⁻¹

    Coefficient of thermal expansion (1000 K)

    4.4 ± 0.1 ppm·K⁻¹

    Standard size

    3 mm × 3 mm / 2 mm × 2 mm

    Standard thickness

    0.5 mm

    Polished surface roughness (top and bottom)

    Ra < 5 nm


    Characterisation Graphs

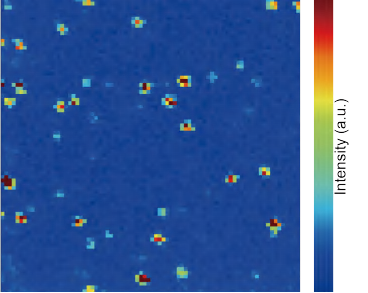

    Confocal fluorescence image of a single NV centre quantum diamond

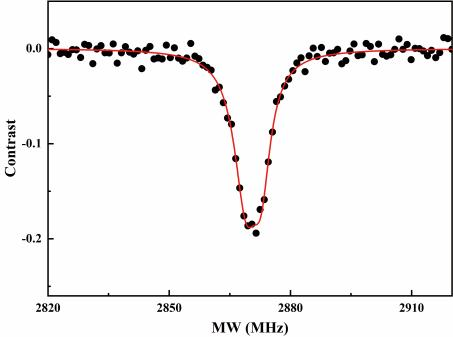

    Continuous‑wave ODMR spectrum of a single NV centre quantum diamond

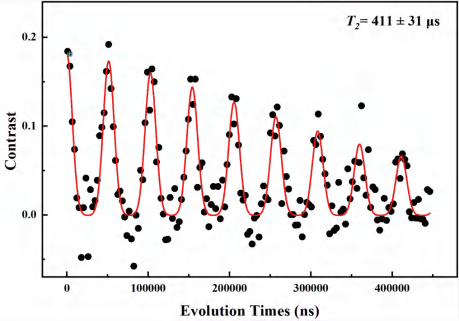

    Coherence property T2 of a single NV centre quantum diamond

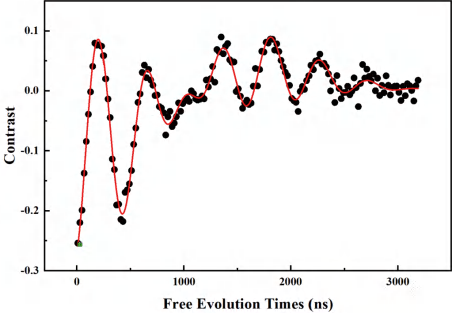

    Coherence property T2* of a single NV centre quantum diamond




    Ordering Information

    No.

    Product Code

    Size (mm)

    Orientation

    NV Density (per 10⁴ μm²)

    Coherence Time T2

    1

    MP-SNV100F12

    2×2×0.5

    <100>

    10–10000 个

    / 104μm2

    ~ 300 μs

    2

    MP-SNV100F13

    3×3×0.5

    <100>

    3

    MP-SNV110F12

    2×2×0.5

    <110>

    4

    MP-SNV110F13

    3 × 3 × 0.5

    <110>

    5

    MP-SNV111F12

    2 × 2 × 0.5

    <111>

    6

    MP-SNV111F13

    3 × 3 × 0.5

    <111>



    Optional Configurations

    --
