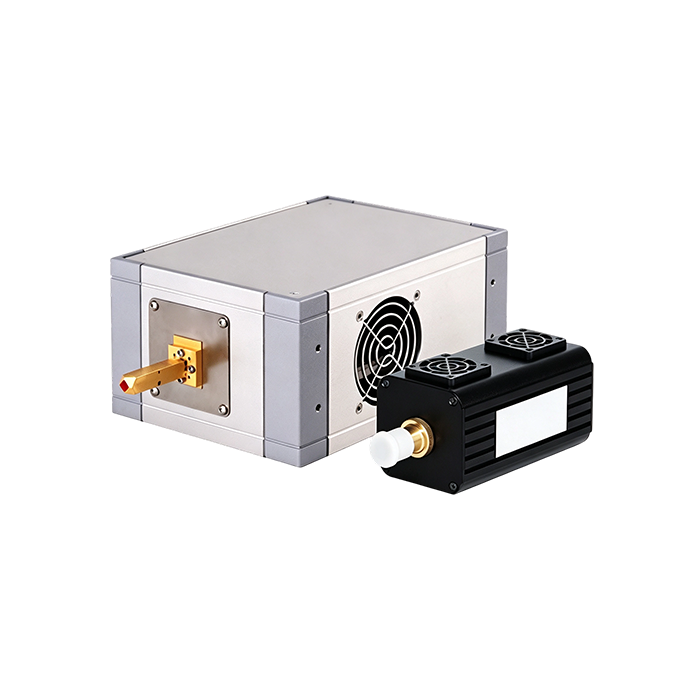

100 GHz, RF Output Power 80 mW Terahertz Source

100 GHz, RF Output Power 80 mW Terahertz Source

The TeraSense series of terahertz sources (IMPATT diodes) are silicon double-drift diodes with a 0.6 µm transit region, mounted on copper heat sinks. The double-drift diode consists of the following layers: a heavily doped (p+) region, a moderately doped p region, a moderately doped n region, and a heavily doped (n+) region. The (p+) and (n+) regions allow ohmic electrical contact with the external circuit. The device generates and sustains oscillations through negative resistance. TeraSense now offers an upgraded version of the terahertz source. The upgraded IMPATT diode is equipped with a protective isolator, which greatly improves output power stability. From now on, you can order IMPATT diodes with an open WR flange or a detachable horn antenna. Typical RF output power at the optimized frequency of 100 GHz can reach up to 2 W.

Product features：IMPATT technology；Available frequencies: 100 GHz, 140 GHz, 200 GHz, 300 GHz, and 600 GHz；Protective isolator (for enhanced stability)；TTL modulation；High‑frequency modulation option (100 MHz, rise/fall time 1.5 ns)；Detachable horn antenna；Compact size, high cost‑performance ratio

Part Number：MP-THS-100-80

Application area：Terahertz time‑domain spectroscopy systems | Gas detection | Laboratory research | Terahertz imaging | Communication testing

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Terahertz source RF output power

100 GHz, 80 mW

Dimension Drawing

General Parameters

product model	Radio frequency output power	configure		Modulation Typesmould
T100-80	80mW	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T100-180	180mW	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T100-400	400mW	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T100-800	0.8W	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T100-1600	1.6W	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T140-30	30mW	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T140-80	80mW	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T140-180	180mW	Conical horn antenna / Flange-type output	Protection Isolator	TTL modulate
T200-40	40mW	diagonal horn antenna /Flange-type output	---	TTL modulate
T200-70	70mW	diagonal horn antenna /Flange-type output	---	TTL modulate
T200-200	200mW	diagonal horn antenna /Flange-type output	---	TTL modulate
T300-10	10mW (290GHz)	diagonal horn antenna /Flange-type output	---	TTL modulate
T300-30	30mW (290GHz)	diagonal horn antenna /Flange-type output	---	TTL modulate
T300-50	50mW (290GHz)	diagonal horn antenna /Flange-type output	---	TTL modulate
T300-80	0mW (290GHz)	diagonal horn antenna /Flange-type output	---	TTL modulate
T600-1.5	1.5mW (580GHz)	diagonal horn antenna /Flange-type output	---	TTL modulate

Order Details

model	product name	Radio Frequency Output Power	configure		Modulation Types
T100-80	100 GHz terahertz source with an RF output power of 80 mW	80mW	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T100-180	100 GHz terahertz source with an RF output power of 180 mW	180mW	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T100-400	100 GHz terahertz source with an RF output power of 400 mW	400mW	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T100-800	100 GHz terahertz source with an RF output power of 0.8 W	0.8W	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T100-1600	100 GHz terahertz source with an RF output power of 1.6 W	1.6W	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T140-30	140 GHz terahertz source with an output power of 30 mW	30mW	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T140-80	140 GHz terahertz source, emission	80mW	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T140-18 0	140 GHz terahertz source with an output power of 180 mW	180mW	Conical horn antenna/Fланцевed output	Protection Isolator	TTL modulate
T200-40	200 GHz terahertz source with an output power of 40 mW	40mW	Diagonal horn antenna/Flange-type output	---	TTL modulate
T200-70	200 GHz terahertz source with an output power of 70 mW	70mW	Diagonal horn antenna/Flange-type output	---	TTL modulate
T200-20 0	200 GHz terahertz source with an output power of 200 mW	200mW	Diagonal horn antenna/Flange-type output	---	TTL modulate
T300-10	300 GHz terahertz source with an output power of 10 mW	10mW(290 GHz)	Diagonal horn antenna/Flange-type output	---	TTL modulate
T300-30	300 GHz terahertz source with an output power of 30 mW	30mW(290 GHz)	Diagonal horn antenna/Flange-type output	---	TTL modulate
T300-50	300 GHz terahertz source with an output power of 50 mW	50mW(290 GHz)	Diagonal horn antenna/Flange-type output	---	TTL modulate
T300-80	300 GHz terahertz source with an output power of 80 mW	80mW(290 GHz)	Diagonal horn antenna/Flange-type output	---	TTL modulate
T600-1.5	600 GHz terahertz source with an output power of 1.5 mW	1.5mW(580 GHz)	Diagonal horn antenna/Flange-type output	---	TTL modulate
