    • Triaxial Magnetic Field Coil Assembly for Magneto-Optical Traps and Quantum Experiments

    The MP-MOT-60-60-93 triaxial magnetic field coil assembly is a high-performance three-axis coil system specifically designed for Magneto-Optical Traps (MOT) and quantum technology experiments. It generates stable, uniform magnetic fields independently along the X, Y, and Z directions while providing ample optical access for laser beams, making it ideal for integration into dual-MOT systems and various cold-atom experimental platforms. Its modular construction ensures easy installation and reliable electrical connections, with long-term stable operation in research laboratory environments.

    Product features：Independent three-axis (X/Y/Z) magnetic field control；Compact structure with small footprint；Large optical clear aperture；High magnetic field uniformity；Efficient heat dissipation designSupports coils in series or independently driven

    Part Number：MP-MOT-60-60-93

    Application area：Magneto-Optical Traps (MOT) | Cold atom experiments | Atomic physics research | Quantum sensors | Atomic clocks | Quantum computing platforms | University and research institute laboratories

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Overall Dimensions

    61 × 61 × 35 cm

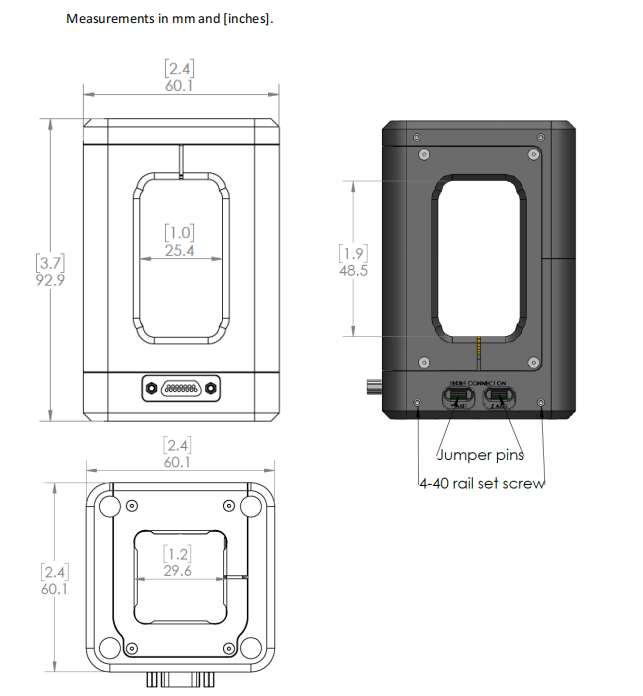

  • Dimension Drawing
    • General Parameters

    Technical Specifications

    Parameter

    Specification

    Overall Dimensions

    60.2 × 60.2 × 92.9 mm

    Mounting Method

    Double MOT rail mounting

    Maximum Operating Current

    3 A

    Maximum Operating Voltage

    3 V

    Electrical Interface

    Micro-D

    Housing Material

    Anodized aluminum

    Maximum Power Consumption

    15 W



    Coil Dimensions

    Item

    Dimensions

    X/Y Coils

    30.9 × 56.4 mm

    Z Coil

    34.5 × 34.5 mm



    Magnetic Field Performance and Electrical Parameters


    X / Y Direction

    Z Direction

    Magnetic Field Coefficient

    22 G/A

    12.8 G/A

    Magnetic Field Gradient

    14.4 G/(cm·A)

    8.3 G/(cm·A)

    Magnetic Field Uniformity

    5 G/cm²

    4 G/cm²

    Resistance

    2.71 Ω

    4.20 Ω

    Inductance

    0.917 mH

    1.63 mH

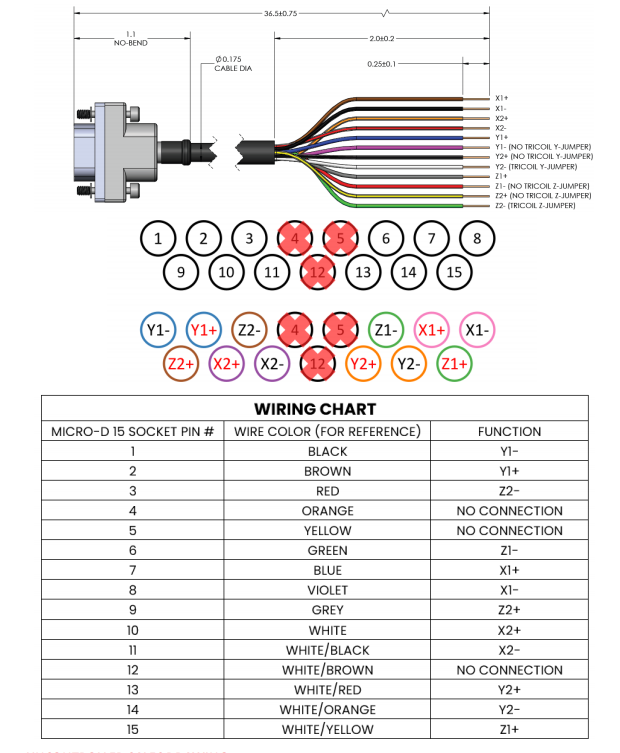

    Wiring Diagram and Pin Definitions



    Optional Configurations

    --

    Downloads

    No resources available
