Cold Atom Magneto-Optical Trap Optical Platform

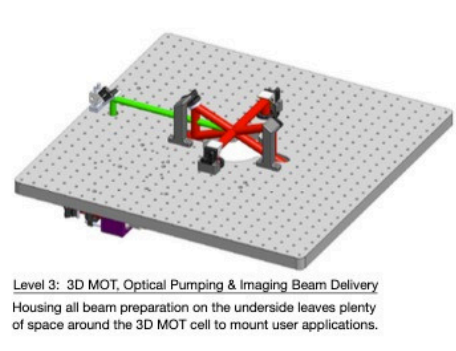

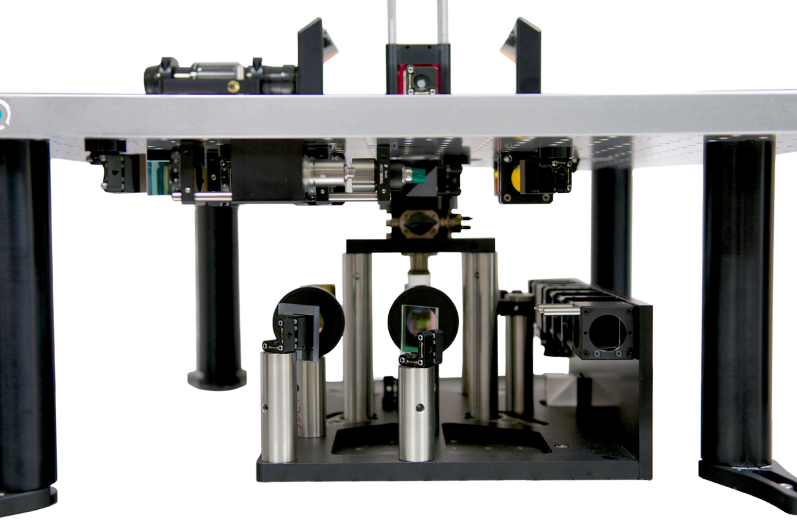

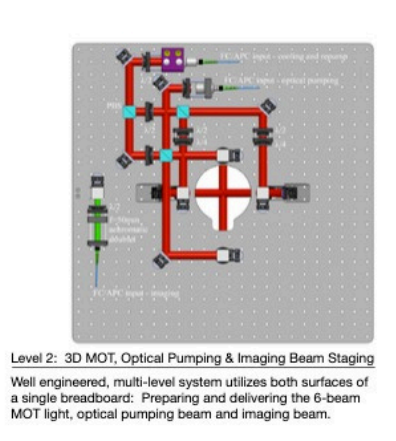

The MP-MOT-61-61-35 is an integrated laser-cooling optical platform designed specifically for the doubleMOT or RuBECi ultra-high-vacuum systems. The platform integrates the key optical and optomechanical components required for the 2D MOT, push beam, six-beam 3D MOT, optical pumping, and imaging beams, significantly reducing the complexity of optical design, installation, and alignment for cold-atom experiments. The system features a layered, modular structure, available as a complete platform or as separate 2D MOT or 3D MOT optical stages. The platform provides open experimental space and standard optical mounting holes, allowing users to easily add imaging, optical pumping, atom manipulation, and other experimental beam paths.
