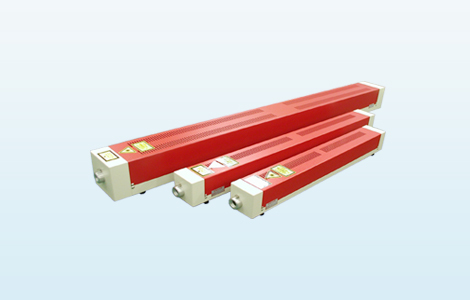

632.8 nm 15 mW External-Mirror Square-Type He-Ne Laser (Beam Diameter 1.3 mm, Linear Polarization)

632.8 nm 15 mW External-Mirror Square-Type He-Ne Laser (Beam Diameter 1.3 mm, Linear Polarization)

The laser of the B-type intracavity helium neon laser is separated from the power supply. By turning on the laser power switch, it will not affect the already adjusted optical path. The laser is covered with a surface sprayed alloy aluminum cylinder. Make the laser sturdy and aesthetically pleasing. The power supply adopts a switch power supply and a metal shell. The power shell is grounded, and the laser is connected to the power supply with a silicon high-voltage wire.

Product features：High stability output；High beam quality；Polarization characteristics；Long lifetime；Coaxial collimation system

Part Number：MP-HN-632.8-15-1.3-PM

Application area：Precision measurement | Optical teaching | Instrument calibration | Industrial inspection | Biomedical

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Output Power

632.8 nm 15mW

Dimension Drawing

General Parameters

Model	Power	Beam Diameter	Beam Divergence Angle	Polarization
MP-HN-405R	0.5mW	Φ0.8mm	1.1mrad	Random
MP-HN-405P	0.5mW	Φ0.8mm	1.1mrad	Linear
MP-HN-410R	1mW	Φ0.6mm	1.3mrad	Random
MP-HN-410P	1mW	Φ0.6mm	1.3mrad	Linear
MP-HN-530R	3mW	Φ0.7mm	1.1mrad	Random
MP-HN-530P	3mw	Φ0.7mm	1.1mrad	Linear
MP-HN-550R	5mW	Φ0.9mm	0.9mrad	Random
MP-HN-550P	5mW	Φ0.9mm	0.9mrad	Linear

Optional Configurations

Downloads

No resources available
