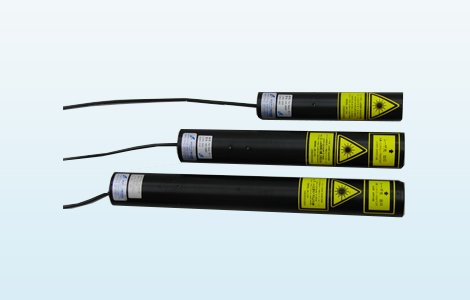

632.8 nm 5 mW Coaxial Type He-Ne Laser (Beam Diameter 0.9 mm, Random Polarization)

632.8 nm 5 mW Coaxial Type He-Ne Laser (Beam Diameter 0.9 mm, Random Polarization)

cylindrical helium neon laser adopts a tubular design, making it easy to install in almost all optical systems. The laser of these lasers is linearly polarized light (200:1) or randomly polarized state.

Product features：High stability output；High beam quality；Polarization characteristics；Long lifetime；Coaxial collimation system

Part Number：MP-HN-632.8-5-0.9-PM

Application area：Precision measurement | Optical teaching | Instrument calibration | Industrial inspection | Biomedical

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength Output Power

632.8 nm 5 mW

Dimension Drawing

General Parameters

Model	Power	Beam Diameter	Beam Divergence Angle	Polarization
MP-HN-405R	0.5mW	Φ0.8mm	1.1mrad	Random
MP-HN-405P	0.5mW	Φ0.8mm	1.1mrad	Linear
MP-HN-410R	1mW	Φ0.6mm	1.3mrad	Random
MP-HN-410P	1mW	Φ0.6mm	1.3mrad	Linear
MP-HN-530R	3mW	Φ0.7mm	1.1mrad	Random
MP-HN-530P	3mw	Φ0.7mm	1.1mrad	Linear
MP-HN-550R	5mW	Φ0.9mm	0.9mrad	Random
MP-HN-550P	5mW	Φ0.9mm	0.9mrad	Linear

Optional Configurations

Downloads

No resources available
