    • Cavity Ring-Down Plano-Concave Mirror 1600-1700nm Reflectivity>99.99%

    Operating wavelength: 1600-1700nm; Reflectivity: >99.99% (1600-1700nm); Dimensions: Diameter 25mm; Thickness 6.35mm; Angle of incidence: 0°; Radius of curvature: 1000mm

    Product features：High reflectivity; Low loss; High precision surface processing; Precision flat and concave surface design; High power tolerance

    Part Number：MP-CRD-FuSi-1650-1-49

    Application area：Trace gas detection | Spectroscopy research | Laser technology | Laser spectroscopy and metrology | Quantum optics and precision measurement

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Wavelength Reflectivity

    1600-1700nm >99.99%

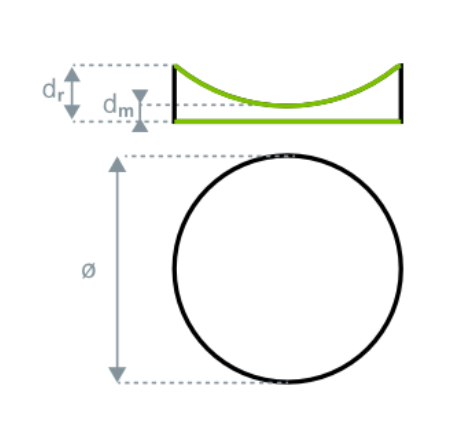

  • Dimension Drawing
    • General Parameters

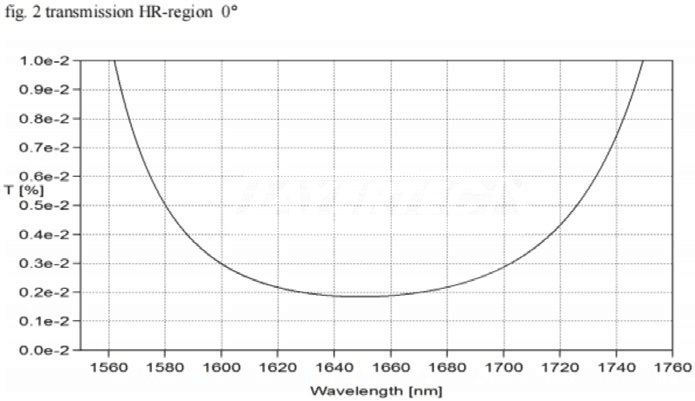

    Curve :










    Optional Configurations

    --

    Downloads

    Cavity Ring-Down Plano-Concave Mirror 1600-1700nm Reflectivity99.99%.pdf
