    • 940nm Dual-Modulation Beam-Scanning DM-PCSEL Diode

    Photonic Crystal Surface-Emitting Lasers (PCSELs) are a new generation of high-power semiconductor lasers. They use a two-dimensional grating structure to scatter light linearly and orthogonally, making PCSELs the only type of laser with feedback in-plane and light emission out-of-plane from the top surface of the laser. They offer advantages such as single-mode operation, extremely low divergence angle, high-power output, and high beam quality, and have important application prospects in fields such as LiDAR, space communications, sensing, and laser processing.

    Product features：Dual-modulation technology；Integrated PCSEL structure；High-speed response；Compact packaging；Multiple wavelength options

    Part Number：MP-PCS-DM-940-10W-TO

    Application area：LiDAR | AR/VR displays | Industrial inspection | Biomedicine | Optical communications

    Add to Cart Request for Quotation Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Operating current Output power

    15A 10W

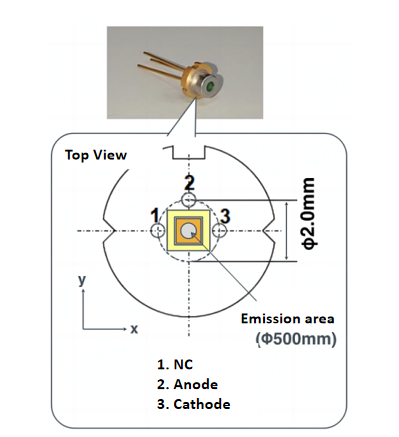

  • Dimension Drawing
    • General Parameters

    Samples are available

    The following R&D samples are available under the Material Transfer Agreement (MTA). Please contact us by email .



    High brightness PCSEL diodes

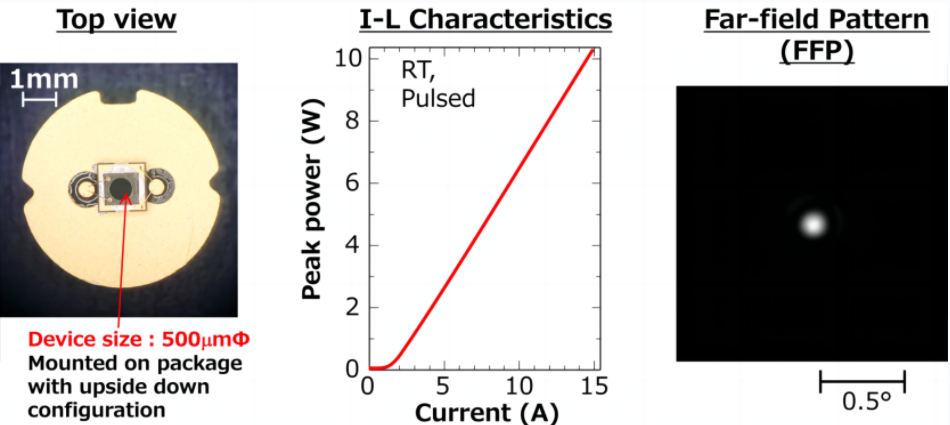

    Under the MTA contract, we will provide R&D samples with a laser area of 500μmΦ that can achieve 10W (or higher) output power (pulse operation) and a narrow beam divergence angle (~0.1°, FWHM).

    We can also provide a larger area for PCSEL for higher output and narrower divergence. Please contact us.




    High Brightness PCSEL Diode Specification Sheet (R&D Sample)

    Appearance

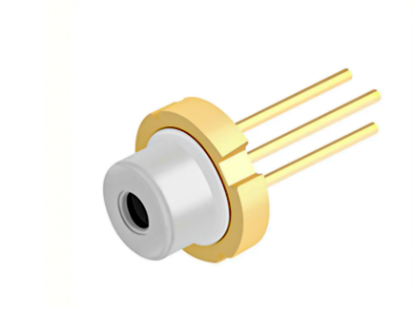

    Φ5.6mm CAN package


    Parameters

    value

    Operating current

    15A

    Output power

    10W

    launch area

    0.5mmΦ

    Wavelength (at 10mW).

    peak

    940nm

    FWHM

    Below 0.1nm

    Divergence angle (at 10mW).

    FWHM

    x

    0.15° or less

    y

    0.15° or less

    1/e2

    x

    0.20° or less

    y

    0.20° or less

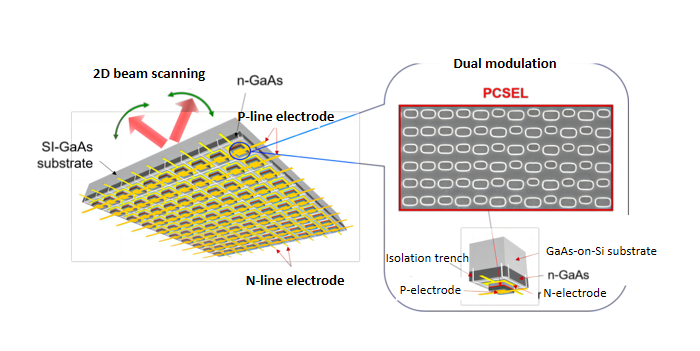

    Beam scanning PCSEL

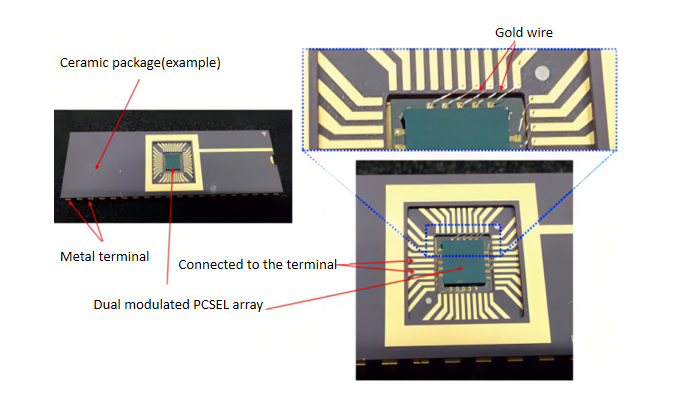

    Under the MTA contract, we can provide R&D samples with beam scanning capabilities based on dual-modulation PCSEL technology. We will consult with you about the arrangement of the array structure and what kind of beam is emitted






    Optional Configurations

    --

    Downloads

    940nm Dual-Modulation Beam-Scanning DM-PCSEL Diode.pdf
