The 770nm visible emitter series is designed for applications requiring high output and precise optical / mechanical axis alignment. Custom package solutions and sorting are available.

Product features：TO-46 Metal Can Package；High Output Power；High Reliability

Part Number：MP-LED-770-18-TO5

Application area：Optical Switches | Medical Application | Optical Sensor

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength

770nm

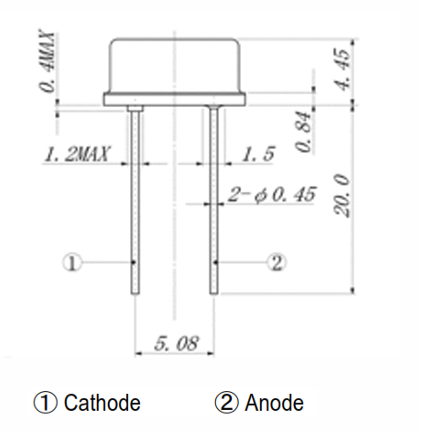

Dimension Drawing

General Parameters

Absolute Maximum Ratings (Ta=25ºC)

Items	Symbol	Ratings	Unit
Forward Current(DC)*3	IF	500	mA
Forwared Current(Pulse)*1	IFP	1	A
Reverse Voltage	VR	5	V
Power Dissipation	PD	1000	mW
Operating Temperature Range	Topr	-20 ~ +85	℃
Storage Temperature Range	Tstg	-30 ~ +100	℃
Lead Soldering Temperature*2	Tls	260	℃

*1: Tw=10µsec, T=10msec. *2: Time 5 Sec max, Position: Up to 3mm from the body.3*Proper heat sink required

Electrical & Optical Characteristics (Ta = 25ºC)

Items	Symbol	Test Condition	Min.	Typical	Max.	Unit
Power Output	PO	IF=200mA	--	18.0	--	mW
Forward Voltage	VF	IF=200mA	--	1.7	2.0	V
Reverse Current	IR	VR=5V	--	--	10	μA
Peak Emission Wavelength	λp	IF=200mA	--	770	--	nm
Spectra Line Half Width	Δλ	IF=200mA	--	35	--	nm
Half Intensity Beam Angle	Θ	IF=200mA	--	±45	--	°

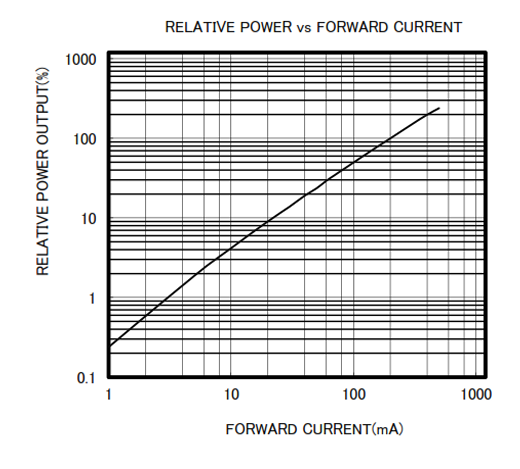

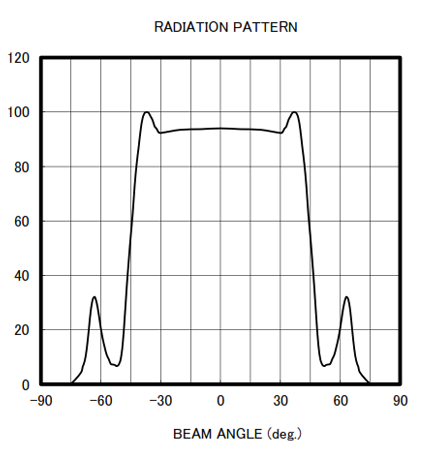

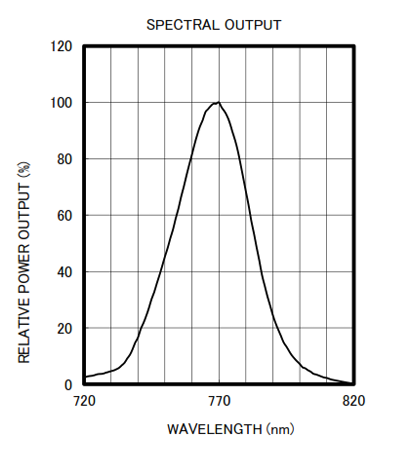

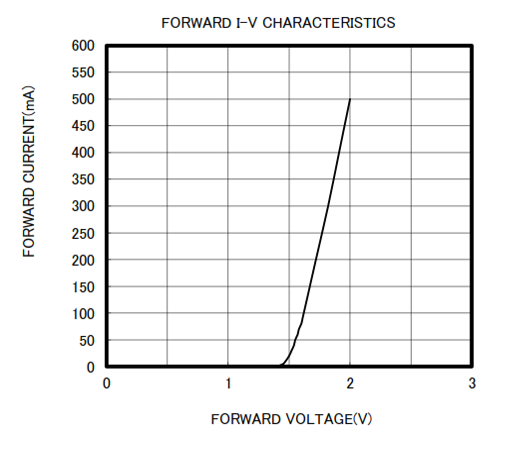

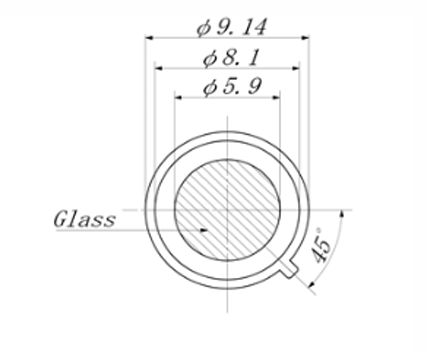

Package Dimensions and Electro-Optical Characteristics
