525nm single color LED Diode

525nm single color LED Diode

The 525nm visible emitter series is designed for applications requiring high output and precise optical / mechanical axis alignment. Custom package solutions and sorting are available.

Product features：TO-18 Metal Can Package；High Output Power；High Reliability

Part Number：MP-LED-525-0.9-TO18

Application area：Color Sensor / Money Bill | Paper Sensor / Money Bill | Bar-code Reader | Fiber Applications

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Center Wavelength

525nm

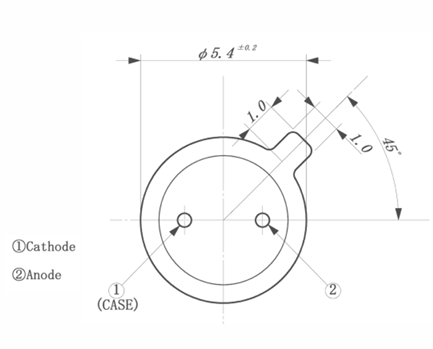

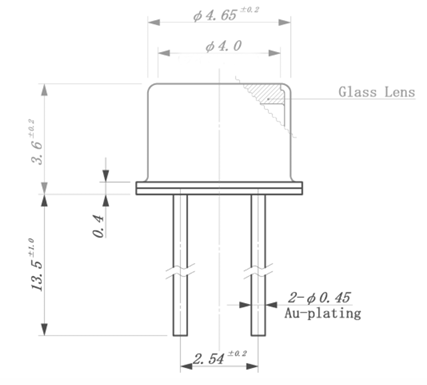

Dimension Drawing

General Parameters

Absolute Maximum Ratings (Ta=25ºC)

Items	Symbol	Ratings	Unit

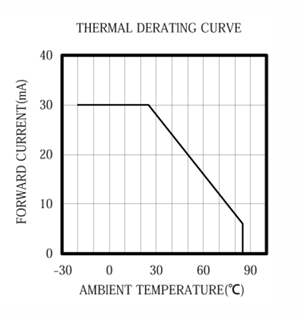

Forward Current(DC)	IF	30	mA
Forwared Current(Pulse)*1	IFP	0.3	A
Reverse Voltage	VR	5	V
Power Dissipation	PD	120	mW
Operating Temperature Range	Topr	-20 ~ +85	℃
Storage Temperature Range	Tstg	-30 ~ +100	℃
Junction Temperature	Tj	100	℃
Lead Soldering Temperature*2	Tls	260	℃

*1: Tw=10µsec, T=10msec. *2: Time 5 Sec max, Position: Up to 3mm from the body.

Electrical & Optical Characteristics (Ta = 25ºC)

Items	Symbol	Test Condition	Min.	Typical	Max.	Unit

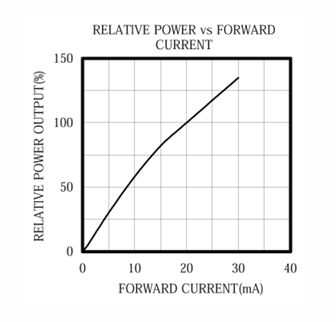

Power Output	PO	IF=20mA	0.5	0.9	--	mW

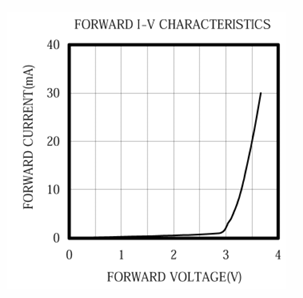

Forward Voltage	VF	IF=20mA	--	3.5	4.0	V
Reverse Current	IR	VR=5V	--	--	100	μA

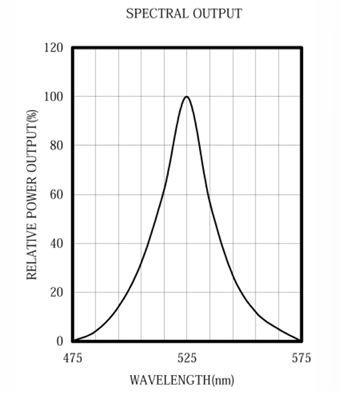

Peak Emission Wavelength	λp	IF=20mA	--	525	--	nm
Spectra Line Half Width	Δλ	IF=20mA	--	45	--	nm

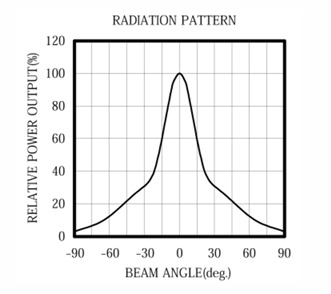

Half Intensity Beam Angle	Θ	IF=20mA	--	±20	--	°
Rise Time	TR	IF=20mA	--	--	--	Ns
Fall Time	TR	IF=20mA	--	--	--	Ns
Junction Capacitance	Cj	1MHz, V=0V	--	25	--	pF

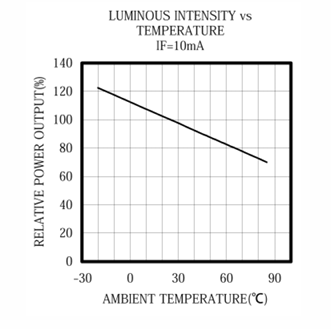

Temperature Coefficient of PO	P/T	IF=10mA	--	-0.5	--	%/ºC

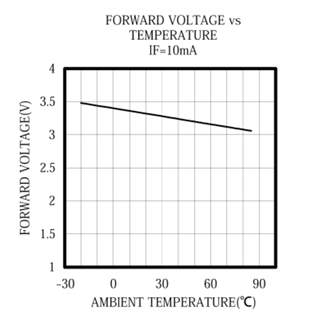

Temperature Coefficient of VF	V/T	IF=10mA	--	-4.0	--	mV/ºC
