1530-1557nm Semiconductor Optical Amplifier

1530-1557nm Semiconductor Optical Amplifier

Semiconductor Optical Amplifier (SOA) is a PN junction device with a quantum well structure. Under external forward bias, population inversion is achieved, which induces stimulated radiation via optical signals to realize optical signal amplification.SOA features low cost, compact size and easy integration. In the era of new infrastructure, it is widely applied in access networks, metropolitan network edges and optical fiber sensing fields.

Product features：Wide wavelength tuning range; high gain; low noise; compact package; fast response

Part Number：MP-SOA-1530-25dB-27-PA

Application area：Fiber optical communication | Optical signal processing | Quantum optics | Sensing network | Laboratory testing

Add to Cart Request for Quotation Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Input Optical Power Output Power Operate Wavelength

-15~10dBm 18~20dBm 1530~1557nm

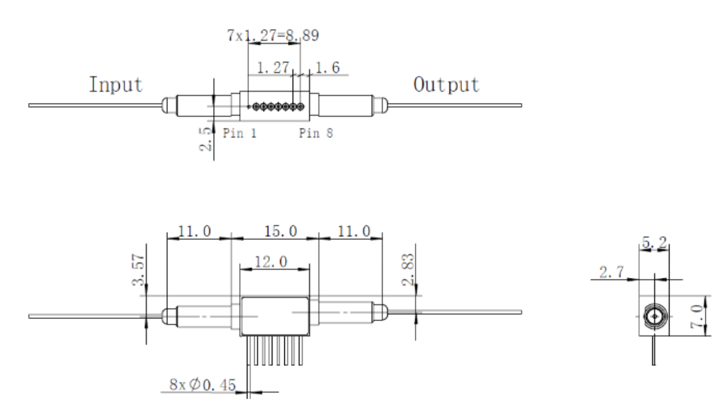

Dimension Drawing

General Parameters

Detailed Specifications

Core Parameters

Parameter	Unit	Specification
Operating Wavelength	nm	1530 ~ 1557
Input Optical Power	dBm	-15 ~ 10
Maximum Module Output Power*¹	dBm	18 ~ 20
Maximum Small-Signal Gain*²	dB	≥25
Gain Flatness	dB	≤2.0
Return Loss	dB	≥40
Noise Figure	dB	≤7.0
Input Optical Extinction Ratio	dB	≥10
Output Optical Extinction Ratio	dB	≥20
Optical Power / Gain Accuracy	dB	≤1.0
Pigtail Length	cm	40 ~ 60
Pigtail Type	—	Polarization-Maintaining Fiber
Connector Type	—	FC/APC

Notes:

The output optical power is guaranteed to be higher than 18 dBm under 5 dBm input optical power and 800 mA driving current.

The amplification gain of the amplifier can exceed 25 dB when the input optical signal is lower than -10 dBm and the driving current is higher than 150 mA.

Electrical Parameters

Parameter	Unit	Specification
SOA Operating Voltage	V	≤2.5
SOA Operating Current	mA	≤800
Threshold Current	mA	95
TEC Operating Voltage	V	≤5.0
TEC Operating Current	A	≤1.0
Thermistor Resistance	kΩ	10

Environmental Parameters

Parameter	Condition	Specification
Operating Ambient Temperature	—	-5 ℃ ~ +55 ℃
Operating Ambient Humidity	—	5%RH ~ 90%RH
Storage Temperature	—	-40 ℃ ~ +85 ℃
Storage Humidity	—	5%RH ~ 95%RH

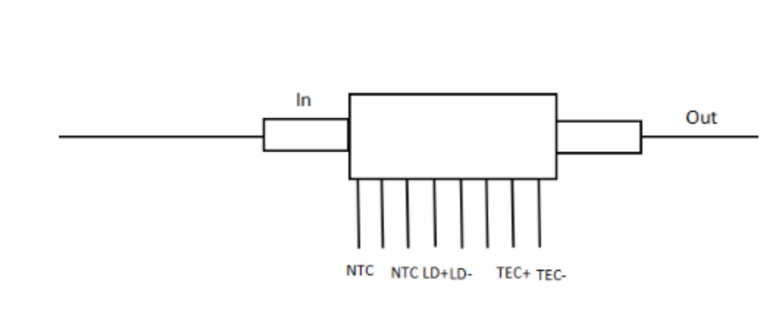

Pin Definition

Pin assignment in order from left to right;

PIN 1: Thermistor Pin 2 and Pin 6 are unconnected and unused.

PIN 3: Thermistor PIN 4: SOA Anode PIN 5: SOA Cathode PIN 7: TEC Positive PIN 8: TEC Negative

Appendix 1: Model and Item Number Comparison Table

Product Title	Operating Wavelength	Input Power	Output Power	Gain Flatness	Noise Figure	Return Loss
1530~1557 nm Semiconductor Optical Amplifier (SOA)	1530~1557 nm	-15~10 dBm	18~20 dBm	≤2.0 dB	≤7.0 dB	≥40 dB

Optional Configurations

Downloads

1530-1557nm Semiconductor Optical Amplifier.pdf
